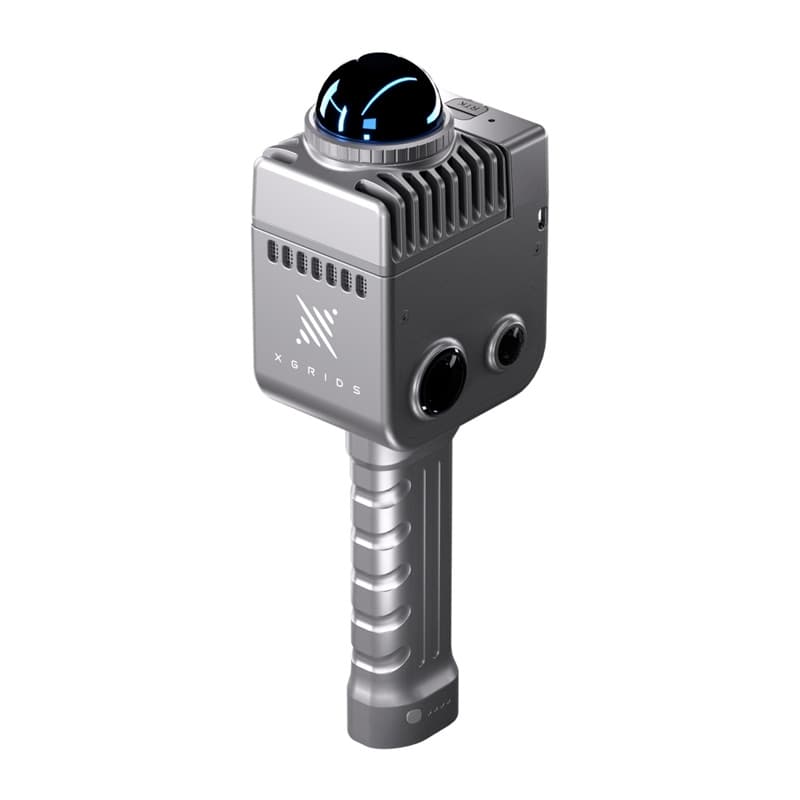

XGRIDS LixelKity K1 handheld LiDAR 3D scanner, 360° panoramic camera
XGRIDS

XGRIDS LixelKity K1 handheld LiDAR 3D scanner, 360° panoramic camera

The XGRIDS LixelKity K1 is an extremely compact and lightweight handheld scanner that simplifies 3D model creation for professionals and enthusiasts alike. It integrates a panoramic camera with a precision LiDAR that scans the surroundings 360° horizontally at 200,000 points per second and builds a full-color point cloud on the device in real time with centimeter-level accuracy. Housed in an IP54 aluminum alloy body, the scanner weighs just 1 kg including the battery and runs for up to 90 minutes on a single battery.

Description

The 360° × 360° panoramic field of view suits digital twins and Scan-to-BIM models, film production, game development and heritage documentation. A perpetual Lixel Studio license for three devices is included for data processing, and an RTK module can be installed.

  • Type: handheld mobile LiDAR 3D scanner with panoramic camera
  • Accuracy: relative 1.2 cm, repeatability 2 cm, absolute 3 cm
  • LiDAR: 200,000 points/s, FOV 360° × -7…+52°, range 0.1–40 m (10% reflectivity), 70 m (80%), laser class 1 / 905 nm
  • Cameras: 4 cameras, 2 × 48 MP, panoramic photos up to 56 MP, 360° × 360° field of view
  • Battery and data: 28.8 Wh, up to 1.5 h, 256 GB TF card, USB 3.1 Gen2, .forest point cloud format
  • Protection and weight: IP54, operating temperature -20 to 50 °C, 1 kg
  • In the box: scanner, Lixel Studio perpetual license (3 devices), battery, charger, USB-C cable, manual, warranty card, cleaning cloth, case
  • MPN and manufacturer: CZ01020004, XGRIDS
  • Warranty: 12 months

Specifications

BrandXGRIDS
Weight (boxed)3.16 kg
EAN4251522825084
