AMD

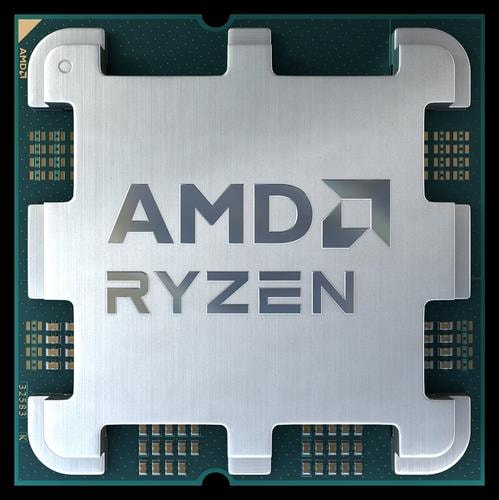

AMD Ryzen 7 7800X3D processor AM5, 8 cores, 96 MB L3, 120 W, OEM

The AMD Ryzen 7 7800X3D is a desktop processor for socket AM5 with 8 cores, 16 threads and 96 MB of L3 cache thanks to AMD 3D V-Cache technology. AMD positions it as a gaming processor, since the large cache lowers latency and lifts in-game performance. This is the OEM (tray) version, so no cooler is included.

  • Socket: Socket AM5, Ryzen 7000 Series, 5 nm process
  • Cores and threads: 8 cores, 16 threads
  • Clock speed: 4.2 GHz, boost up to 5.0 GHz
  • Cache: 96 MB L3 (AMD 3D V-Cache)
  • TDP: 120 W
  • Memory and interface: DDR5, dual-channel, 3600/5200 MHz; PCI Express 5.0
  • Graphics and package: integrated AMD Radeon Graphics (2200 MHz); OEM (tray), no cooler

Description

3D V-Cache: 96 MB of cache for gaming

The defining feature of the 7800X3D is AMD 3D V-Cache technology, which gives the processor a total of 96 MB of L3 cache. Games reuse a lot of the same data, and when it fits in the processor cache, the CPU has to fetch it from slower system memory less often. According to AMD, this means lower latency and higher gaming performance whatever the settings or resolution.

8 cores and 16 threads

The processor has eight cores and sixteen threads, a 4.2 GHz base clock and boost up to 5.0 GHz. That is enough to game while streaming, with a chat app and a browser running in the background. Everyday work, programming and photo editing run smoothly too. The chip is built on a 5 nm process and belongs to the AMD Ryzen 7000 Series.

AM5 platform, DDR5 and PCIe 5.0

The processor goes into a motherboard with Socket AM5. Its memory controller is dual-channel and supports DDR5, with AMD listing 3600 and 5200 MHz as supported speeds. The processor supports PCI Express 5.0, the newest standard for connecting graphics cards and NVMe SSDs. The exact slot layout and PCIe 5.0 support depend on the motherboard, so check its specifications.

Integrated graphics as a backup

The processor includes integrated AMD Radeon Graphics with a 2200 MHz base clock. It does not replace a discrete graphics card in a gaming PC, but it lets you start and use the computer without one – for example while building the system, troubleshooting or when the graphics card is away for repair. The picture is output through the motherboard video ports, if the board has them.

OEM version: choose a cooler separately

This is the OEM, or tray, version: the package contains only the processor, without a cooler or retail box. With a TDP of 120 W the processor needs proper cooling, either an AM5-compatible air cooler or a liquid cooler. According to the manufacturer, supported operating systems are Windows 11 and 10 (64-bit), RHEL and Ubuntu.

Who this processor is for

Gamers for whom a high and stable frame rate matters most and who are building a new gaming PC on the AM5 platform; owners of an older AM5 processor who want more gaming performance; and builders who already have a suitable cooler and do not need a boxed one. Compared with the 7700X in the same range, the 7800X3D has three times as much L3 cache.

Specifications

General

BrandAMD
Market segmentDesktop
PCI Express slots version5.0

Processor

Processor manufacturerAMD
Processor familyAMD Ryzen™ 7
Processor generationAMD Ryzen 7000 Series
Processor model7800X3D
Processor cores8
Processor threads16
Processor boost frequency5 GHz
Processor cache96 MB
Processor cache typeL3
CPU Family nameAMD Ryzen 7
Processor socketSocket AM5
Processor lithography5
Processor base frequency4.2
Memory types supported by processorDDR5-SDRAM
Memory clock speeds supported by processor3600/5200

Memory

Memory channelsDual-channel

Graphics

On-board graphics cardYes
On-board graphics card modelAMD Radeon Graphics
Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics card base frequency2200

Software & security

Compatible operating systemsWindows 11/10 x64, RHEL x86 64-bit, Ubuntu x86 64-bit

Battery & power

Thermal Design Power (TDP)120

Performance & capacities

Model number7800X3D

Features

Package typeTray
Cooler includedNo

Questions & answers

Which motherboard does it need?

The processor uses Socket AM5, so it needs an AM5 motherboard. Check the board maker's CPU support list to confirm that its BIOS supports the 7800X3D.

Is a cooler included?

No. This is the OEM (tray) version and no cooler is included. The TDP is 120 W, so choose an AM5-compatible cooler.

Does the processor have integrated graphics?

Yes, AMD Radeon Graphics with a 2200 MHz base clock. The picture is output through the motherboard video ports.

Which memory does it support?

Dual-channel DDR5; according to AMD, supported speeds are 3600 and 5200 MHz.

Which operating systems does it work with?

The manufacturer lists Windows 11 and 10 (64-bit), RHEL and Ubuntu.
