ASUS

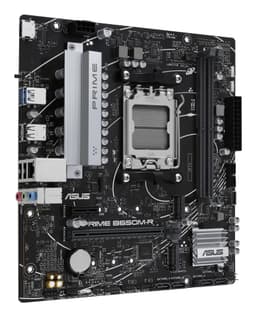

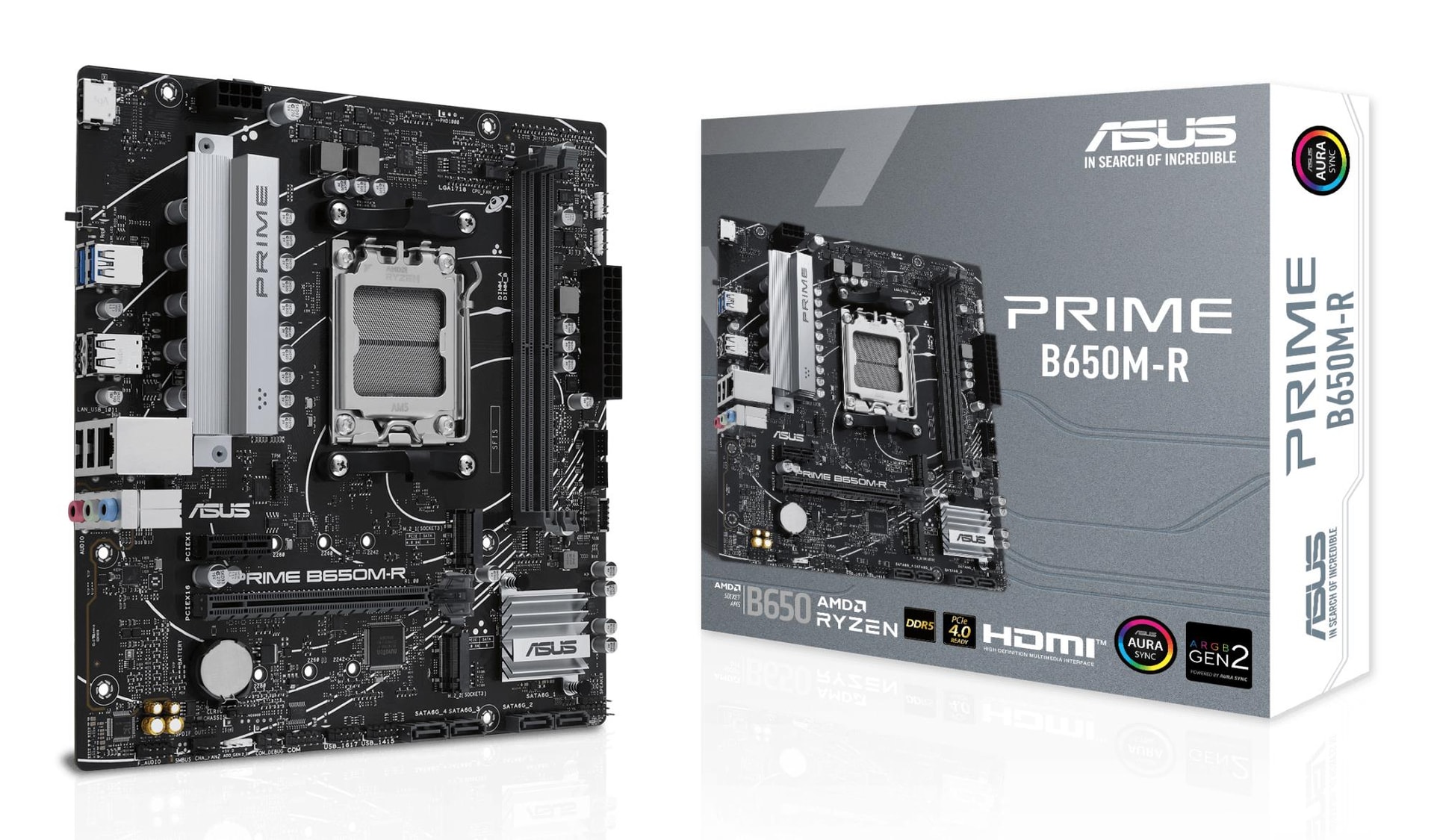

ASUS PRIME B650M-R motherboard AM5, micro-ATX, DDR5, 2 × M.2, 2.5 GbE

The ASUS PRIME B650M-R is a micro-ATX motherboard with the AMD AM5 socket and B650 chipset for Ryzen 7000 and 8000 Series processors. Two M.2 slots and 2.5 Gb Ethernet make it a compact, practical base for a DDR5 PC.

  • Socket and chipset: AMD AM5, B650; Ryzen 7000 and 8000 Series
  • Form factor: micro-ATX, 236 × 221 mm
  • Memory: DDR5, 2 DIMM slots, up to 96 GB, 4800–7200 MT/s, EXPO support
  • Storage: 2 × M.2 PCIe 4.0, 4 × SATA III, RAID 0/1/10
  • Expansion slots: 1 × PCIe 4.0 x16, 1 × PCIe 4.0 x1
  • Rear panel: HDMI, 2 × USB 3.2 Gen 1, 4 × USB 2.0, 2.5 GbE (Realtek), audio jacks; no Wi-Fi

Description

Fast networking and quiet cooling

Realtek 2.5 Gbit/s Ethernet is noticeably quicker than plain gigabit when moving files to a home NAS or another PC. VRM and chipset heatsinks plus hybrid fan headers keep temperatures in check, and Fan Xpert 2+ software can switch the fans to a quiet mode. A header is provided for a front-panel USB-C port at 5 Gbit/s.

Who this motherboard is for

Anyone building a compact AM5 PC for home or the office who is fine with two memory slots. The two M.2 slots hold a system drive and a data drive, and SATA drives can be added as needed. The rear HDMI port serves processors with integrated graphics.

Specifications

General

BrandASUS
Product colourBlack
Line-inYes
BIOS typeUEFI AMI
User guideYes
Component forPC
BIOS memory size256
Headphone outputs1
Unbuffered memoryYes
ECC сompatibilityNon-ECC
RGB LED pin headerYes
Number of memory slots2
Motherboard form factormicro ATX
Number of M.2 (M) slots2
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 (Gen 4.x) slots1
EAN4711387429761

Processor

Processor manufacturerAMD
Motherboard chipsetAMD B650
Processor socketSocket AM5
CPU fan connectorYes
Motherboard chipset familyAMD
Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series
Supported processor socketsSocket AM5

Memory

Maximum internal memory96 GB
Memory channelsDual-channel
Memory slots typeDIMM

Storage

Number of HDDs supported4
Supported storage drive typesHDD & SSD
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III

Audio

Audio output channels7.1
Front panel audio connectorYes

Ports

HDMI ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
USB 2.0 connectors2
12V power connectorYes
S/PDIF out connectorYes
Ethernet interface type2.5 Gigabit Ethernet
Number of COM connectors1
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of chassis fan connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2

Connectivity

Wi-FiNo

Software & security

Windows operating systems supportedWindows 10/Windows 11

Keyboard & controls

Back-to-BIOS buttonYes

Battery & power

Power source typeATX

Performance & capacities

RAID levels0/1/10
Cooling typePassive
Supported memory clock speeds4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
Supported memory clock speed (max)7200

Features

Cables includedSATA
RAID supportYes
Supported memory typesDDR5-SDRAM
Parallel processing technology supportNot supported

Dimensions & weight

Width236 mm
Depth221 mm

Questions & answers

Do the newest Ryzen processors work?

The manufacturer lists Ryzen 7000 and 8000 Series processors as compatible. Other series are not mentioned in the data, so check the ASUS CPU support list first.

How much memory can I install?

There are two DDR5 DIMM slots for up to 96 GB in dual-channel mode. Supported speeds are 4800–7200 MT/s.

Does the board have Wi-Fi?

No. Networking runs through the RJ-45 port at up to 2.5 Gbit/s.
