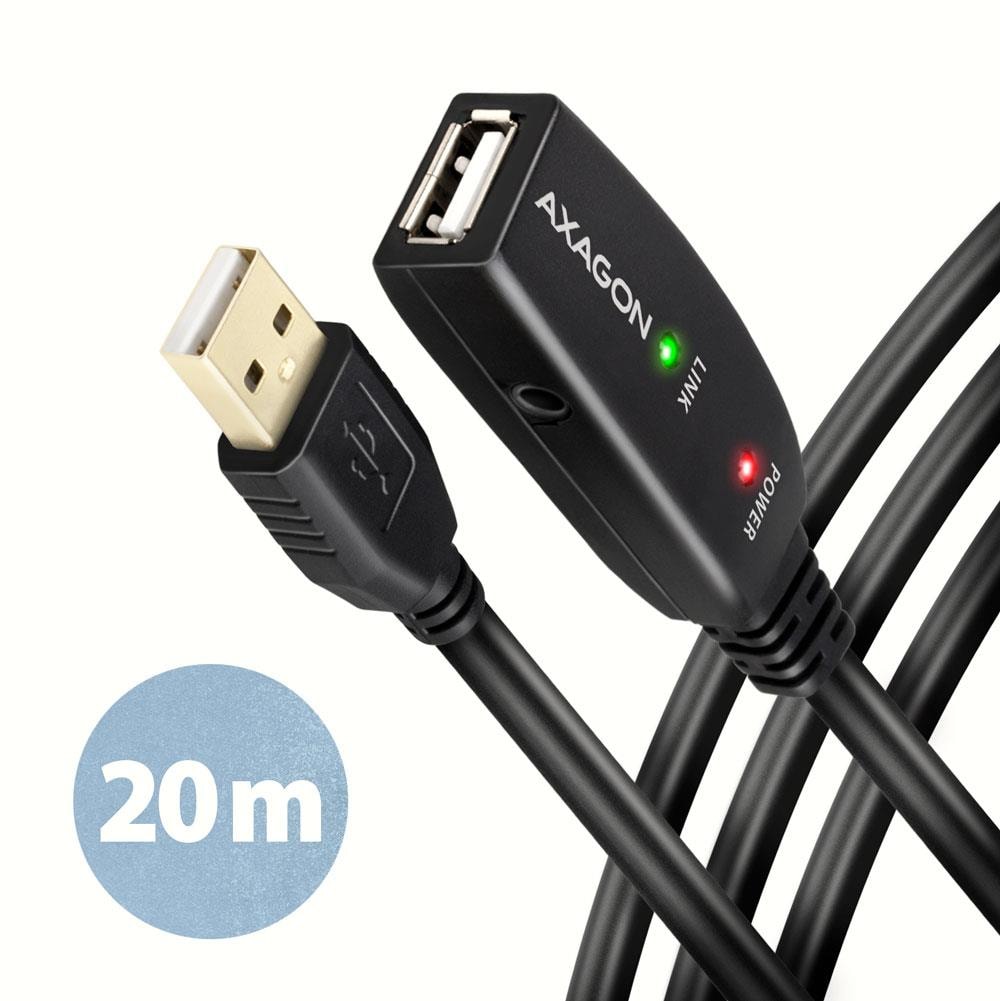

Axagon ADR-220 active USB 2.0 extension cable 20 m, A–A, aux power

The Axagon ADR-220 is a 20 m active USB 2.0 extension cable with USB-A male and female connectors. Its active part boosts the signal and has an auxiliary power socket for when a distant device needs more current than the USB port can supply.

  • Connectors: USB-A male to the computer, USB-A female to the device
  • Length: 20 m, active part 74 × 22 × 13 mm
  • Data transfer: USB 2.0, 480 / 12 / 1.5 Mbit/s, backward compatible with USB 1.1
  • Power: USB bus 5 V / 500 mA, auxiliary socket 3.5 × 1.3 mm (5 V / 1–2 A)
  • In the box: 1.2 m USB-A to 3.5 mm power cable

Description

Auxiliary power when the USB port is not enough

Bus power is usually sufficient, but a distant device with higher consumption can become unstable. In that case the included power cable goes into a phone charger with a USB-A output of at least 5 V / 1 A. With auxiliary power even a 2.5″ external drive works without its own power supply. Two LEDs show power and USB connection, and no drivers are needed: Axagon lists Windows XP to 11, Windows Server, Mac OS X 10.x and Linux (kernel 2.6.x and later).

Who this USB cable is for

For connecting a mouse, keyboard, webcam, printer, scanner or plotter located up to 20 m from the computer. The compact active part fits into cable ducts and installation trunking, and the cable weighs 646 g.

Specifications

General

BrandAXAGON
Model nameADR-220 USB 2.0 A-M -> A-F active extension/repeater cable 20m
Product colourBlack
Plug and PlayYes
Maximum data transfer rate0.48
EAN8595247902351

Ports

USB versionUSB 2.0
Connector 1USB A
Connector 2USB A
Connector 1 genderFemale
Connector 2 genderMale

Battery & power

Cable length20 m

Features

Package typeBox

Dimensions & weight

Weight646 g

Questions & answers

Can several cables be connected in a row?

Yes, range can be extended with several cables in series. On a long run bus power may become insufficient, and connecting auxiliary power helps.

Is a power adapter included?

The box contains a 1.2 m USB-A to 3.5 mm power cable but no charger. Any phone charger with a USB-A output of at least 5 V / 1 A will do.

Can a normal cable be used after the active one?

Yes, Axagon allows a regular passive USB cable behind the active cable.
