CyberPower

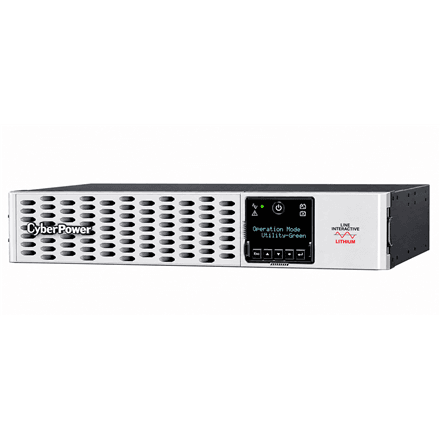

CyberPower PRL1500ERT2UC UPS 1500 VA / 1500 W, 10 outlets, IEC C14 input

The CyberPower PRL1500ERT2UC is a line-interactive UPS rated at 1500 VA / 1500 W with ten output outlets. It connects to the mains through an IEC C14 input, and its 433 × 500 × 86.5 mm chassis is built to protect server room and network cabinet equipment from power cuts and voltage fluctuations.

  • Capacity: 1500 VA / 1500 W
  • Topology: line-interactive
  • Outlets: 10 AC outlets
  • Power input: IEC C14
  • Dimensions: 433 × 500 × 86.5 mm

Description

Ten outlets behind one UPS

With ten output outlets you can connect a server, network storage, switches, a router and a firewall to one UPS without extra power strips. The combined consumption of all devices must stay below 1500 W. The manufacturer does not specify the outlet type, so check which plugs your equipment uses before installation.

IEC C14 input – a familiar connector from server hardware

The UPS power input is IEC C14, the same type of socket found on computer and server power supplies. It connects to a wall socket or to a rack power distribution unit (PDU) with a cord that has a C13 end. That makes the UPS a natural fit for a server cabinet where power already comes from an installed distribution unit.

Line-interactive: battery only during an outage

A line-interactive UPS monitors the mains voltage and corrects smaller fluctuations by itself, switching to battery only during a power cut or a large voltage deviation. That way the batteries are not worn down by every small swing and are charged when a real outage comes. This topology suits ordinary office power and server rooms.

Dimensions that match rack equipment

The chassis is 433 mm wide, 500 mm deep and 86.5 mm high. These dimensions correspond to two units (2U) of 19-inch rack equipment, but the manufacturer does not list the mounting options. Before installation, check that the cabinet has 500 mm of depth to spare including cables.

Who this UPS is for

Small businesses and offices with lots of devices and few free sockets in the server cabinet; IT administrators who connect the UPS through a rack power distribution unit via its C14 input; and any server room where 1500 W is enough but up to ten devices must sit behind a single UPS.

Specifications

BrandCyberPower
Capacity1500 VA
Net weight27.00 kg
AC outlets quantity10
Dimensions (WxDxH)433 x 500 x 86.5 mm
Power plugIEC C14
UPS topologyLine-Interactive
EAN4711027798257

Questions & answers

How many devices can I connect?

The UPS has 10 output outlets. The combined power of the connected devices must stay below 1500 W.

How does the UPS connect to the mains?

The power input is IEC C14. It connects to a wall socket or a rack power distribution unit with a C13-ended cord, the same kind of connection used by computer power supplies.

How long does the UPS run on battery?

The manufacturer does not specify the runtime. It always depends on the load: the less the connected devices draw, the longer the UPS lasts.
