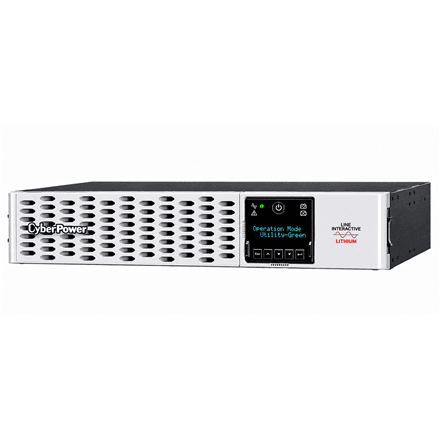

CyberPower PRL3000ERT2UC UPS 3000 VA / 3000 W, 8 outlets, IEC C20 input

The CyberPower PRL3000ERT2UC is a line-interactive UPS rated at 3000 VA / 3000 W with eight output outlets. An IEC C20 power input designed for higher current and a 433 × 500 × 86.5 mm chassis make it a powerful backup source for a server cabinet where several servers and network devices sit behind one UPS.

  • Capacity: 3000 VA / 3000 W
  • Topology: line-interactive
  • Outlets: 8 AC outlets
  • Power input: IEC C20
  • Dimensions: 433 × 500 × 86.5 mm

Description

All 3000 W available for your load

On many UPS units the watt rating is lower than the volt-ampere rating; here both are 3000. The real consumption of connected devices can therefore reach 3000 W, enough for several servers together with storage and switches. For continuous operation, leave a little headroom so the UPS does not run at its limit and battery runtime stays longer.

IEC C20 input for higher current

The power input is IEC C20, designed for higher current than the C14 that computers usually use. The UPS connects to the mains or to a rack power distribution unit (PDU) with a cord that has a C19 end. Before installation, check that the distribution unit or wall has a suitable connection and that the circuit can handle a 3000 W load.

Eight outlets for critical equipment

The eight output outlets can feed, for example, servers, network storage, switches and a firewall behind a single UPS. The manufacturer does not specify the outlet type, so check which plugs your equipment uses before installation. The line-interactive topology corrects smaller voltage fluctuations by itself and switches to battery only during an outage.

Dimensions that match rack equipment

The chassis is 433 mm wide, 500 mm deep and 86.5 mm high. These dimensions correspond to two units (2U) of 19-inch rack equipment, but the manufacturer does not list the mounting options. Before installation, make sure the cabinet has 500 mm of depth to spare including the cables at the back.

Who this UPS is for

Businesses with several servers and network gear in a rack cabinet for whom 1500 W is not enough; IT administrators who feed the UPS from a rack power distribution unit through its C20 input; and server rooms where up to eight critical devices must sit behind one powerful UPS.

Specifications

BrandCyberPower
Capacity3000 VA
Net weight29.30 kg
AC outlets quantity8
Dimensions (WxDxH)433 x 500 x 86.5 mm
Power plugIEC C20
UPS topologyLine-Interactive
EAN4711027798264

Questions & answers

How many devices can I connect?

The UPS has 8 output outlets. The combined power of the connected devices must stay below 3000 W.

How does the UPS connect to the mains?

The power input is IEC C20. It connects with a C19-ended cord to a socket or a rack power distribution unit that can handle a 3000 W load.

How long does the UPS run on battery?

The manufacturer does not specify the runtime. It always depends on the load: the less the connected devices draw, the longer the UPS lasts.
