DAHUA

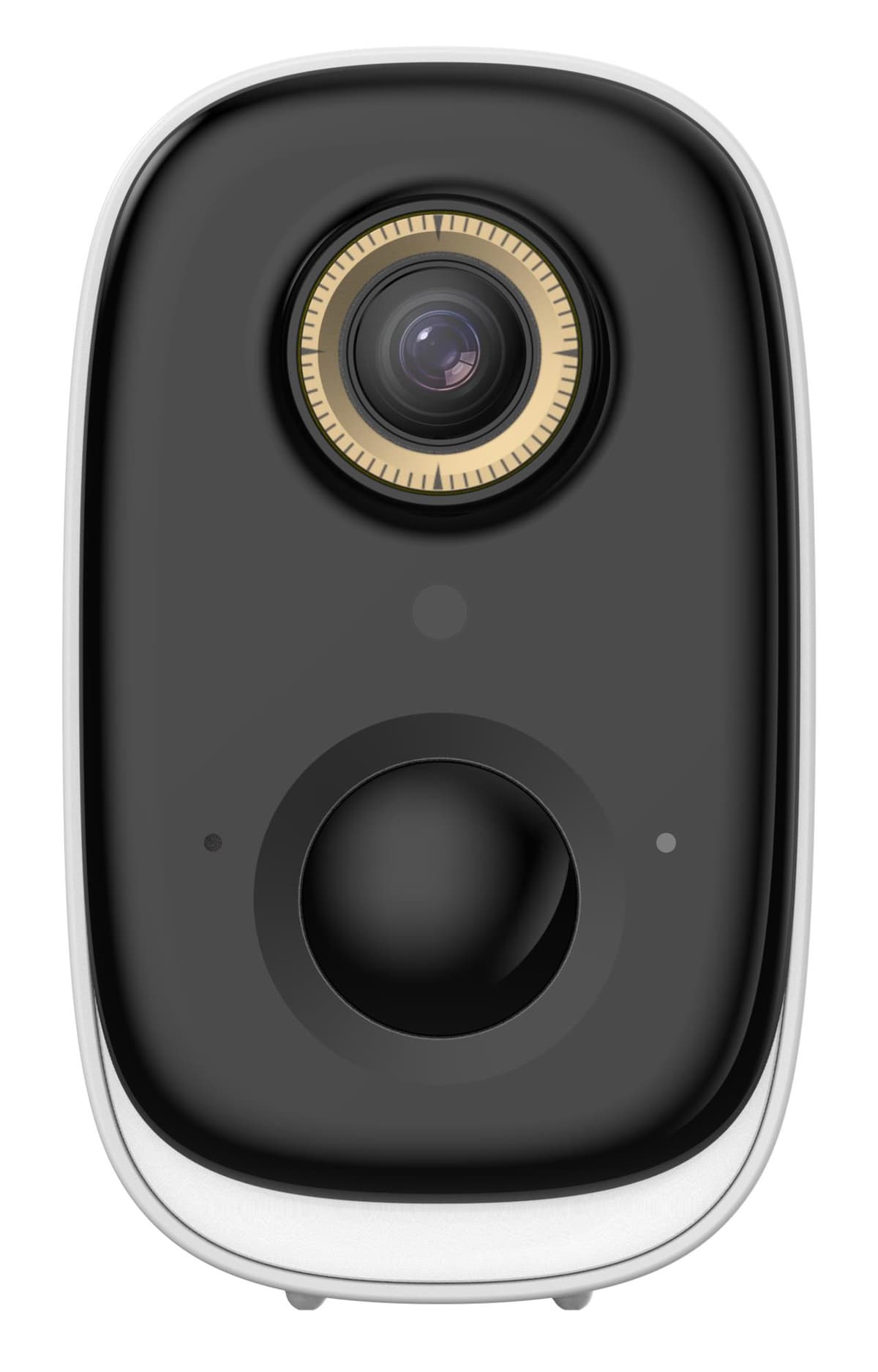

Dahua BF8H wireless camera 8 MP 4K, 20.44 Wh battery, Wi-Fi 6, IP66, white

The Dahua BF8H is a battery-powered wireless camera with a 4K picture that installs outdoors or indoors without running cables. Its 8 MP sensor records at 3840 × 2160, the wide 2.1 mm lens covers a large area and the IP66 housing keeps out rain and dust.

  • Resolution: 8 MP (4K), 3840 × 2160 (2160p), 15 fps, 1/2.82″ CMOS sensor
  • Lens: 2.1 mm, F1.6, 123° horizontal and 145° diagonal field of view
  • Night vision: IR and white light, 4 LEDs, up to 15 m
  • Power: built-in 20.44 Wh rechargeable battery, PIR motion sensor
  • Protection: IP66, operating temperature –20 to 50 °C
  • Recording and app: microSD up to 512 GB, H.265, human and vehicle detection, DMSS (Android, iOS)

Description

A 4K picture that shows the details

Compared with the 5 MP BF5HB, this model has a larger 1/2.82″ sensor and 3840 × 2160 resolution, so faces and number plates stay more legible when you zoom in digitally. Power comes from the 20.44 Wh battery and the connection is Wi-Fi 6 with WPA3 encryption, so neither a network cable nor a power outlet is needed. The magnetic base makes it quick to aim.

Who this wireless camera is for

Home and cottage owners and small businesses who want a cable-free camera without giving up 4K detail when watching an entrance, yard or car park. Two-way audio, a siren and a light let you talk to a visitor or scare off an intruder.

Specifications

General

BrandDAHUA
Form factorBullet
Model nameWi-Fi Battery Security Camera
Product colourWhite
Housing materialPlastic
Remotely operatedYes
TypeIP security camera
Bit rate32 kbps - 4096 kbps
LED typeIR/White
Pan range0 - 360
Frame rate15
Night visionYes
WeatherproofYes
Magnetic baseYes
Mounting typeCeiling/wall
Built-in sirenYes
Video streamingYes
Tilt angle range-60 - 0
Total megapixels8
Fixed focal length2.1
Night vision distance15
Video motion detectionYes
Maximum aperture number1.6
Wide Dynamic Range (WDR)Yes
Video compression formatsH.265
Number of illumination LEDs4
Operating relative humidity (H-H)0 - 95

Display

Maximum resolution3840 x 2160

Storage

Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Built-in HDDNo
Built-in SSDNo

Graphics

Supported graphics resolutions3840 x 2160

Camera

Fixed focusYes
Day/night modeYes
Number of lenses1
Number of cameras1
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, diagonal145
Lens viewing angle, vertical66
Lens viewing angle, horizontal123

Audio

Audio system2-way
Audio codecsG.711a; G.711Mu; PCM
Built-in microphoneYes
Built-in speaker(s)Yes

Ports

Card reader integratedYes
USB portYes
Ethernet LANNo

Connectivity

Wi-FiYes
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
BluetoothYes
Connectivity technologyWireless
Security algorithmsWPA3

Software & security

Mobile operating systems supportedAndroid/iOS
Management softwareDMSS

Keyboard & controls

Reset buttonYes

Battery & power

Battery capacity20.44 Wh
Battery life (max)2880 h
Power source typeBattery
DC output current2
DC output voltage5
Rechargeable batteryYes

Performance & capacities

Operating temperature (T-T)0 – 20 – 50 °C
Angle of rotation360
Supported video modes2160p

Features

International Protection (IP) codeIP66
Protection featuresDustproof/Rain proof
Sensor typeCMOS
Built-in lightYes
Optical sensor size1/2.82
Placement supportedIndoor & outdoor
Integrated PIR sensorYes
Intelligent Video Surveillance (IVS) system featuresHuman detection/Vehicle detection

Dimensions & weight

Width54 mm
Depth69.6 mm
Height90.5 mm
Weight300 g

Questions & answers

How does the BF8H differ from the BF5HB?

The BF8H records 8 MP 4K (3840 × 2160) on a larger 1/2.82″ sensor, while the BF5HB records 5 MP (2880 × 1620). Battery, lens and IP rating are the same, and the BF8H housing is white.

Where are recordings stored?

On a microSD card of up to 512 GB, with H.265 keeping 4K files smaller. Whether a card is in the box, the manufacturer does not specify.

Does it need a network cable?

No. It connects over Wi-Fi 6 and runs on its battery; there is no Ethernet port.
