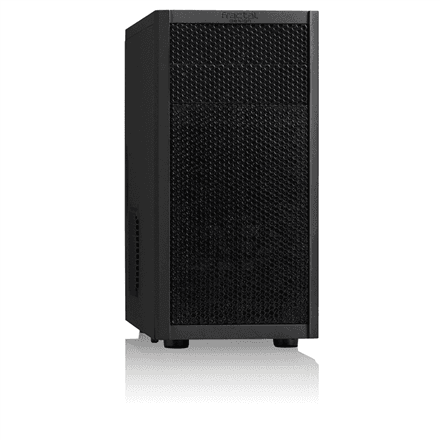

Fractal Design Core 1000 USB 3.0 Micro ATX PC case, black
Fractal Design

Fractal Design Core 1000 USB 3.0 Micro ATX PC case, black

  • TypePC
  • Built-in speaker(s)No
  • Width17.5 cm
  • Height35.5 cm
  • Depth42 cm

The Fractal Design Core 1000 is a compact black case for Micro ATX and Mini ITX boards. Despite its size it takes a full-size power supply and a long graphics card.

Description

  • Graphics cards up to 350 mm — most gaming cards fit.
  • CPU coolers up to 148 mm — room for a proper tower cooler.
  • 120 mm Silent Series R2 fan included — quiet airflow out of the box.
  • Up to 2 x 3.5" or 3 x 2.5" drives — space for both a hard disk and SSDs.
  • USB 3.0 and USB 2.0 on the front — a stick or headset stays within reach.

A fit for a first self-built PC or a second machine in a room where a full tower simply will not go.

Specifications

BrandFractal Design
TypePC
Built-in speaker(s)No
Colour of productBlack
Width17.5 cm
Height35.5 cm
Depth42 cm
Weight4.1 oz
Net weight3.386 kg
Audio inputYes
Audio outputYes
Box contentsCore 1000 USB 3.0 computer caseAccessory boxUser manual
Cooling typeFront: 1 - 120mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed)Rear: 1 - 92mm fan (not included)Side: 1 - 120mm fan (not included)
Dimensions (WxDxH)175 x 355 x 420mm mm
Form factorMicro ATX
Front fans installed1x 120 mm
Interface1 - USB 3.0 with internal connector1 - USB 2.01 - 3.5mm audio in (mic)1 - 3.5mm audio out (headphone)Power button with LEDHDD LEDReset button
ManualYes
Maximum CPU cooler height14.8 cm
Maximum graphics card length35 cm
Number of 3.5" bays2
Number of expansion slots4
Package depth41.5 cm
Package height47.5 cm
Package weight5 oz
Package width22.5 cm
Power supply includedNo
Rear fans installed1x 92 mm
Reset buttonYes
Side fans installed1x 120 mm
Side windowNo
Supported hard disk drive sizes2.5,3.5 mm
Supported motherboard form factorsMicro-ATX, Mini-ITX
USB 2.0 ports quantity1
USB 3.0 (3.1 Gen 1) Type-A ports quantity1
Other featuresmATX, Mini ITX, DTX motherboard compatibilityDrive bay capacity: 2 - 3.5" HDD or 3 - 2.5" SSD or 1 - 3.5" HDD + 1 - 2.5" SSD2 - ODD slots1 - FDD slot, using convertor in ODD slot (convertor included)4 expansion slots with sleek white painted bracketsSupports graphic card up to 350mm in length with one HDD mountedSupports graphic card up to 210mm in length with two/three HDD mountedSupports CPU coolers up to148mm in heightSupports full size ATX PSU, maximum length about 185 mm if an optical drive is mounted
EAN7350041081098
