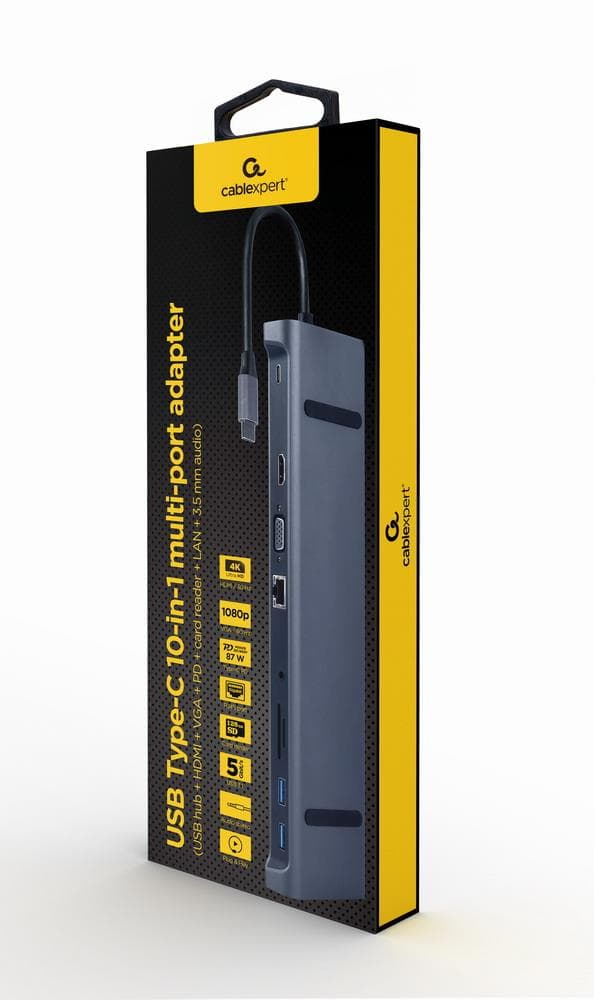

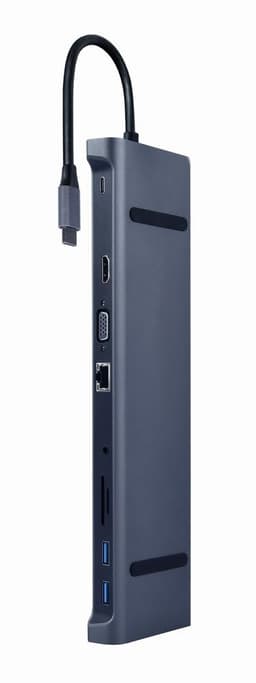

Gembird A-CM-COMBO10-01 USB-C hub 10-in-1, HDMI 4K, VGA, LAN, 87 W PD

Gembird A-CM-COMBO10-01 is a USB-C hub in a metal housing that adds ten functions to a laptop: three USB-A ports, HDMI and VGA outputs, Gigabit LAN, an SD and microSD reader, an audio jack and USB-C charging up to 87 W. It works as soon as it is plugged in, with no setup.

  • Host connection: USB-C (USB 3.2 Gen 1), 15 cm cable
  • Video: HDMI up to 3840 × 2160 (4K 30 Hz), VGA up to 1920 × 1080
  • Charging: USB-C PD up to 87 W
  • USB ports: 3 × USB-A 5 Gbit/s
  • Other: Gigabit LAN, SD/microSD reader (cards up to 128 GB), 3.5 mm audio output
  • Housing: metal, Space Grey, 248 g

Description

Everything in one hub, even for an old projector

The HDMI output shows a picture at up to 4K at 30 Hz, and the VGA output handles Full HD, which is handy with older projectors and monitors. Wired networking runs at up to 1000 Mbit/s. Connect a USB-C charger to the PD port and the laptop receives up to 87 W through the hub, so no separate charging port is needed.

Who this USB hub is for

Owners of a thin laptop with only a couple of USB-C ports who hook up a projector in the meeting room, a monitor and network cable at home, and now and then read a camera memory card. The metal housing and 15 cm cable cope with life in a bag, and at 248 g the hub does not weigh down the desk.

Specifications

General

BrandGEMBIRD
Product colourGrey
Colour nameSpace Grey
Housing materialMetal
Plug and PlayYes
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Headphone outputs1
EAN8716309124430

Display

Maximum refresh rate60 Hz
Maximum analog resolution1920 x 1080
Maximum digital resolution3840 x 2160

Storage

Compatible memory cardsMicroSD (TransFlash)/SD
Maximum memory card size128 GB

Ports

Card reader integratedYes
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates1000 Mbit/s
Power connectorUSB Type-C
USB cable length0.15
USB Power Delivery up to87
VGA (D-Sub) ports quantity1
USB Power Delivery revision2.0

Connectivity

Connectivity technologyWired
Headphone connectivity3.5 mm

Battery & power

Power source typeUSB
Input current0.2

Features

CompatibilityThe USB Type-C video source device must support DisplayPortT Alt Mode

Dimensions & weight

Width74 mm
Depth277 mm
Height20 mm
Weight248 g
Product Net Weight0.25 kg

Questions & answers

Does video work on any USB-C port?

No, according to the manufacturer the computer's USB-C port must support DisplayPort Alt Mode. Without it USB, network and the card reader work, but HDMI and VGA do not.

Does the hub charge my laptop?

Yes, with a charger connected to the USB-C PD port the hub passes up to 87 W to the laptop.

How do A-CM-COMBO10-01, COMBO9-01 and COMBO9-02 differ?

A-CM-COMBO10-01: 3 × USB-A, HDMI, VGA, LAN, SD/microSD, 87 W. A-CM-COMBO9-01: adds 2 × USB 2.0 but PD up to 60 W. A-CM-COMBO9-02: HDMI, DisplayPort and VGA, 87 W, no card reader in its port list.
