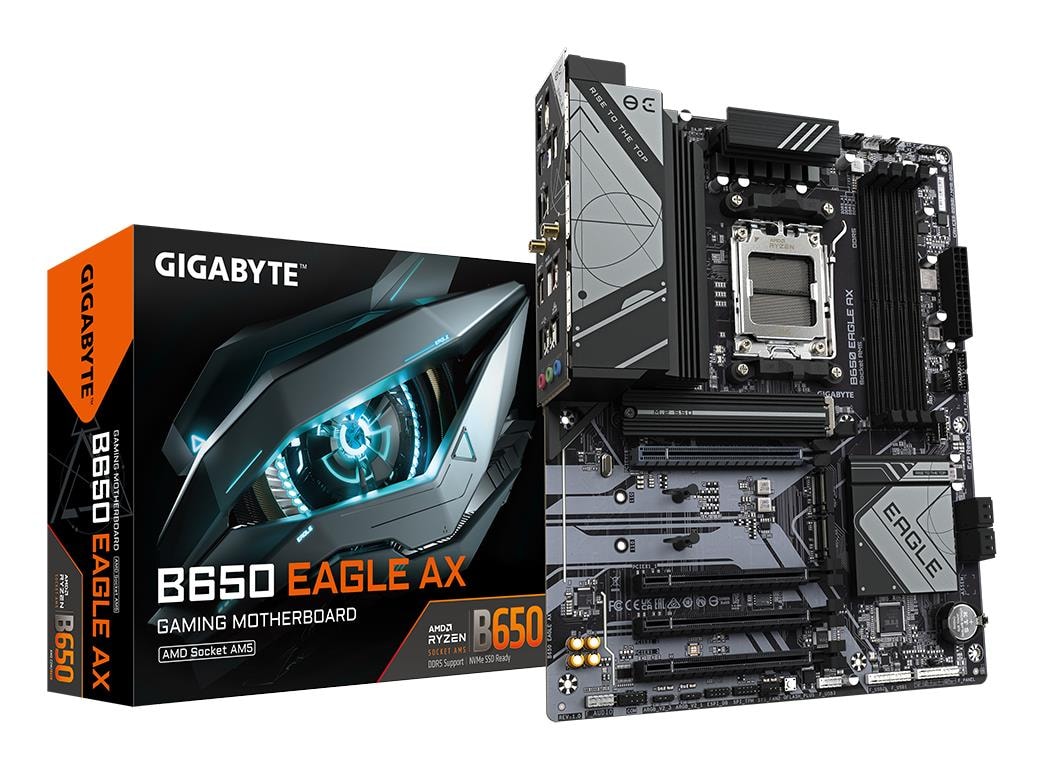

Gigabyte B650 Eagle AX ATX Motherboard – AM5, DDR5, Wi-Fi 6E
GIGABYTE

Gigabyte B650 Eagle AX ATX Motherboard – AM5, DDR5, Wi-Fi 6E

  • Maximum resolution4096 x 2160
  • Processor manufacturerAMD
  • Maximum internal memory256 GB
  • Number of HDDs supported4
  • Battery technologyLithium-Manganese Dioxide (LiMnO2)
  • RAID levels0/1/10

The Gigabyte B650 Eagle AX is an ATX motherboard for AMD CPUs built on the AMD B650 chipset with Socket AM5 , offering a solid foundation for Ryzen 7000, 8000, and 9000 series builds that demand fast memory and versatile storage.

Description

Expand Storage and Memory Without Compromise

  • Socket AM5 with AMD B650 chipset — compatible with the full current AMD Ryzen lineup
  • 4 DDR5 DIMM slots with AMD EXPO support for high-speed dual-channel memory configurations
  • 3 M.2 (M-key) slots including PCIe 5.0 and PCIe 4.0 support for fast NVMe SSDs
  • Wi-Fi 6E (802.11ax) and Bluetooth built in — no separate adapter needed
  • ATX form factor with a 12+2+2 phase digital VRM for stable power delivery under sustained load

A capable mid-range AMD motherboard suited to PC builders, gamers, and content creators who want DDR5 performance, ample NVMe storage, and integrated wireless connectivity in a standard ATX chassis.

Specifications

General

BrandGIGABYTE
Product colourBrown
HDCPYes
Line-inYes
BIOS typeUEFI AMI
ACPI version5.0
Component forPC
DirectX version12.0
BIOS memory size256
Clear CMOS jumperYes
Headphone outputs1
Unbuffered memoryYes
ECC сompatibilityNon-ECC
RGB LED pin headerYes
PC health monitoringFan/Temperature/Voltage/Water cooling
Number of memory slots4
Motherboard form factorATX
Number of M.2 (M) slots3
1st M.2 largest key size25110
2nd M.2 largest key size22110
3rd M.2 largest key size22110
Number of RGB LED pin headers4
PCI Express x16 (Gen 3.x) slots3
PCI Express x16 (Gen 4.x) slots1
Products per shipping (inner) case1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
3rd M.2 highest PCI Express generation4.0
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Warranty3 years
EAN4719331860158

Display

Maximum resolution4096 x 2160

Processor

Processor manufacturerAMD
Motherboard chipsetAMD B650
Processor socketSocket AM5
CPU fan connectorYes
Motherboard chipset familyAMD
Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Number of CPU fan connectors2

Memory

Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory per slot64

Storage

Number of HDDs supported4
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Supported storage drive interfacesM.2, SATA III

Graphics

Discrete graphics supportYes

Audio

Audio chipRealtek ALC897
Microphone inYes
Audio output channels7.1
Front panel audio connectorYes

Ports

HDMI ports quantity1
HDMI version2.1
USB 2.0 ports quantity6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
LAN controllerRealtek RTL8111H
USB 2.0 connectors3
12V power connectorYes
DisplayPort version1.4
PS/2 ports quantity1
Serial port headers1
WiFi-AP antenna jack2
DisplayPorts quantity1
Front panel connectorYes
Ethernet interface typeGigabit Ethernet
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of water pump connectors2
Number of chassis fan connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1

Connectivity

Wi-FiYes
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelRealtek RTL8852CE
BluetoothYes
Bluetooth version5.3
Antenna includedYes

Software & security

Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Windows operating systems supportedWindows 10 x64/Windows 11 x64

Battery & power

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Power source typeATX
Battery weight3
Lithium weight per battery0.07

Performance & capacities

RAID levels0/1/10
Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600
Supported memory clock speed (max)7600

Features

RAID supportYes
Screws includedYes
Batteries includedYes
Supported memory typesDDR5-SDRAM
Parallel processing technology supportNot supported

Dimensions & weight

Width305 mm
Depth244 mm
Height35 mm
