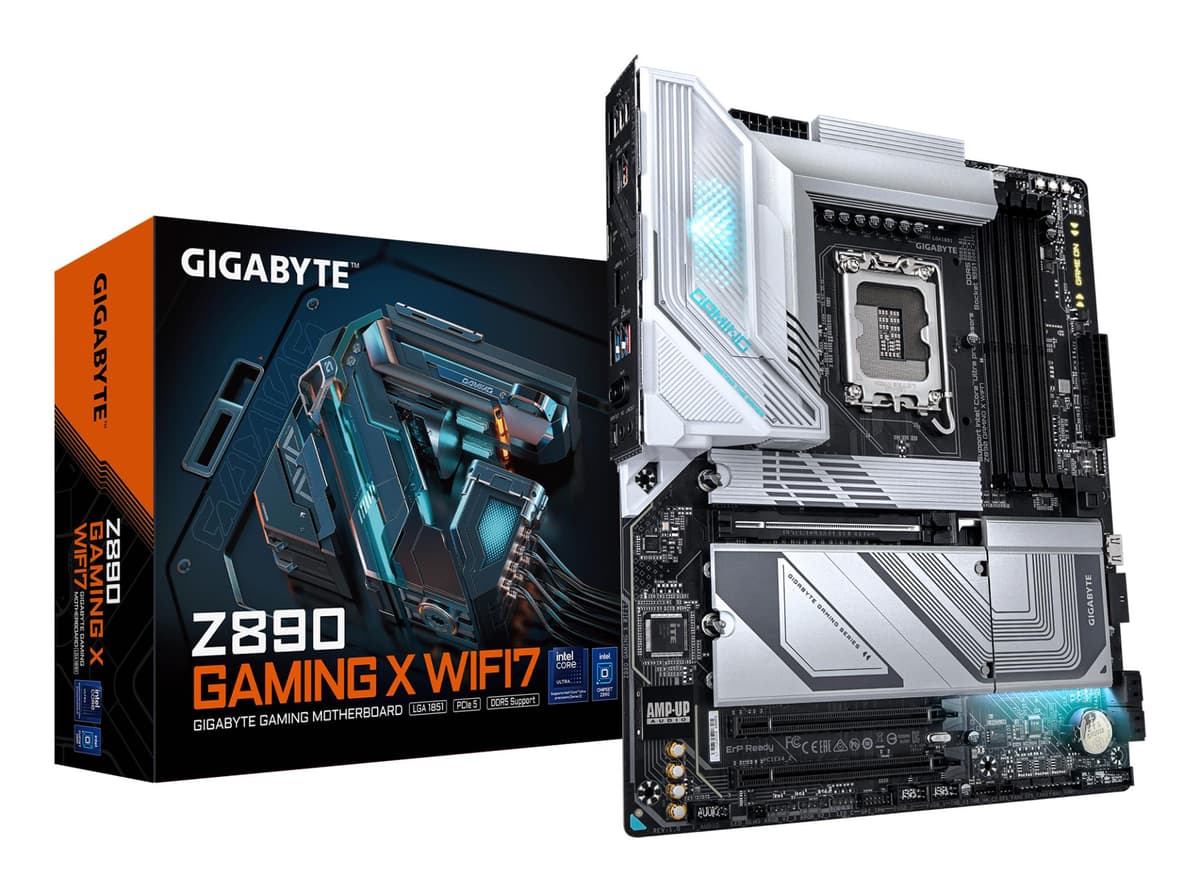

Gigabyte Z890 Gaming X Wifi ATX Motherboard LGA 1851 DDR5
GIGABYTE

Gigabyte Z890 Gaming X Wifi ATX Motherboard LGA 1851 DDR5

  • Processor manufacturerIntel
  • Maximum internal memory256 GB
  • Number of HDDs supported8
  • Battery technologyLithium-Manganese Dioxide (LiMnO2)
  • RAID levels0/1/10/5
  • Wi-Fi standardsWi-Fi 7 (802.11be)

The Gigabyte Z890 Gaming X Wifi is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 (Socket V1) processors, giving builders a modern, well-equipped platform for high-performance Intel desktop systems.

Description

Built for DDR5 Speed and Expandability

  • Intel Z890 chipset with LGA 1851 socket — ready for the latest Intel Core Ultra 200 series CPUs
  • 4x DDR5-SDRAM slots for fast, high-capacity memory configurations
  • 4x M.2 (M-key) slots for flexible NVMe SSD storage expansion
  • PCIe x16 slot with reinforced design for discrete graphics cards
  • Wi-Fi and Bluetooth built in, eliminating the need for add-in wireless cards

This motherboard suits enthusiast gamers, content creators, and power users who are building or upgrading a high-end Intel platform and want onboard wireless connectivity, ample M.2 storage options, and DDR5 support in a standard ATX form factor.

Specifications

General

BrandGIGABYTE
Product colourBlack
BIOS typeUEFI AMI
ACPI version5.0
Component forPC
DirectX version12.0
BIOS memory size256
Clear CMOS jumperYes
ECC сompatibilityNon-ECC
RGB LED pin headerYes
PC health monitoringFan/Temperature/Voltage
PCI Express x16 slots1
Number of memory slots4
Motherboard form factorATX
Number of M.2 (M) slots4
Products per shipping (inner) case1
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Warranty3 years
EAN4719331864941

Processor

Processor manufacturerIntel
Motherboard chipsetIntel Z890
Processor socketLGA 1851 (Socket V1)
Motherboard chipset familyIntel
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Maximum internal memory supported by processor256

Memory

Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM

Storage

Number of HDDs supported8
Supported storage drive typesHDD & SSD
Number of storage drives supported4
Supported storage drive interfacesM.2, SATA III

Audio

Audio chipRealtek ALC1220
Microphone inYes
Audio output channels7.1

Ports

HDMI ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
S/PDIF out portYes
USB 2.0 connectors2
12V power connectorYes
DisplayPorts quantity2
Ethernet interface type2.5 Gigabit Ethernet
Thunderbolt ports quantity2
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Total number of SATA connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1

Connectivity

Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
Top Wi-Fi standardWi-Fi 7 (802.11be)
WLAN controller modelMediaTek MT7925
BluetoothYes
Bluetooth version5.4

Software & security

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Windows operating systems supportedWindows 11 x64

Keyboard & controls

Clear CMOS buttonYes

Battery & power

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Battery weight3
Lithium weight per battery0.07

Performance & capacities

RAID levels0/1/10/5
Supported memory clock speeds5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600
Supported memory clock speed (max)8800

Features

RAID supportYes
Batteries includedYes
Supported memory typesDDR5-SDRAM
Supported memory module capacities12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB

Dimensions & weight

Width305 mm
Depth244 mm
Height35 mm
Weight2.27 kg
