KINGSTON

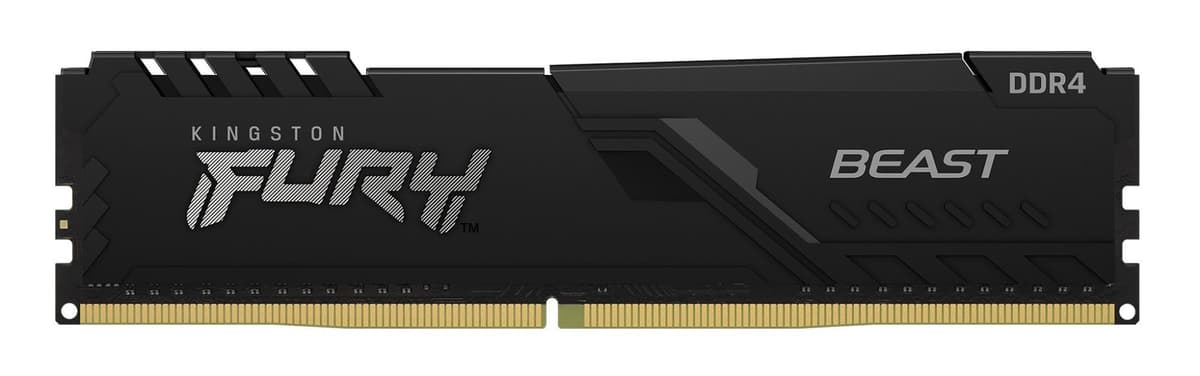

Kingston FURY Beast KF432C16BB/8 RAM DDR4 8 GB 3200 MT/s CL16

The Kingston FURY Beast KF432C16BB/8 is an 8 GB DDR4 RAM module for desktop PCs, running at 3200 MT/s with CL16 timing. The single-rank module carries an Intel XMP 2.0 profile and a low black heat spreader – an easy way to add a second module to the memory you already have, or to build a simple office PC.

  • Type: DDR4, 288-pin DIMM, unbuffered, non-ECC
  • Capacity: 8 GB (1 × 8 GB), single-rank
  • Speed: 3200 MT/s (PC4-25600)
  • Timing and voltage: CL16, 1.35 V
  • Profile and cooling: Intel XMP 2.0, low-profile black heat spreader

Description

A second module that switches on dual-channel

If your PC currently has one 8 GB module, adding a second identical one doubles the capacity and lets the motherboard use both memory channels at once. You notice it in games and on machines with integrated graphics, which borrow part of system RAM as video memory. The 3200 MT/s speed and CL16 timing apply once you select the XMP 2.0 profile in the BIOS. The module is 34.1 mm tall, so a large CPU cooler will not get in its way.

Who this RAM is for

Owners of an office or home PC where 8 GB has become too tight for the browser and work apps; system builders who need a DDR4 module with a known speed and timing; and anyone who wants to build dual-channel memory from two identical KF432C16BB/8 modules.

Specifications

General

BrandKINGSTON
ECCNo
Lead platingGold
Component forPC
Buffered memory typeUnregistered (unbuffered)
Module configuration1024M x 64
Master (outer) case width196.85
Master (outer) case height60.96
Master (outer) case length311.15
Shipping (inner) case width196.85
Shipping (inner) case height60.96
Shipping (inner) case length311.15
Master (outer) case gross weight1433.84
Products per master (outer) case25
Intel Extreme Memory Profile (XMP)Yes
Products per shipping (inner) case25
Intel Extreme Memory Profile (XMP) version2.0
EAN740617319910

Memory

Internal memory8 GB
Internal memory typeDDR4
CAS latency16
Memory ranking1
Memory form factor288-pin DIMM
Memory data transfer rate3200
Memory layout (modules x size)1 x 8

Storage

Storage temperature (T-T)-55 - 100

Battery & power

Memory voltage1.35

Performance & capacities

Operating temperature (T-T)0 – 85 °C
Cooling typeHeatsink

Dimensions & weight

Width7.2 mm
Depth133.35 mm
Height34.1 mm
Weight34.17 g
Product Net Weight0.04 kg

Questions & answers

Will it work with the memory I already have?

The safest option is to pair identical modules. If your PC has memory from another brand or at another speed, the modules usually run at the speed of the slowest one.

Will this memory fit a laptop?

No, this is a 288-pin DIMM module for desktop PCs. Laptops use the smaller SO-DIMM modules.

Does it work with an older Intel processor?

Kingston notes that some Intel chipsets and processors from before the 8th generation do not support DDR4 chips with 16 Gbit density. If needed, check whether the motherboard maker offers a BIOS update.
