Montech X3 Mesh PC case ATX, 6 RGB fans, White
MONTECH

Montech X3 Mesh PC case ATX, 6 RGB fans, White

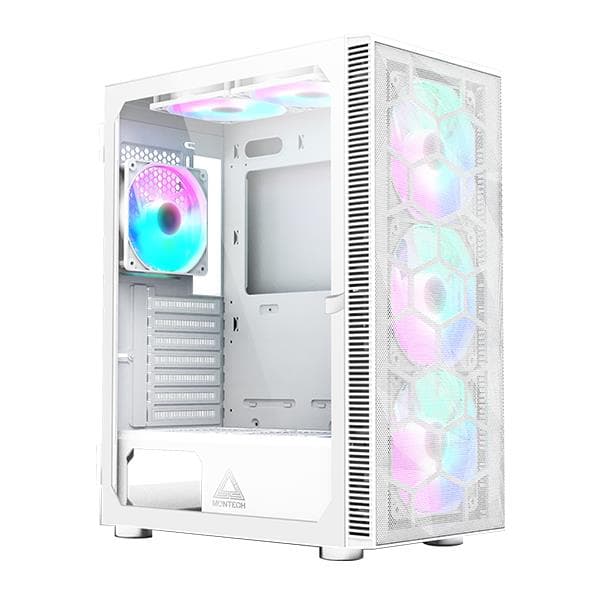

The Montech X3 Mesh is a white Midi Tower PC case for ATX, micro ATX and Mini-ITX boards with six RGB-lit fans already installed. A tempered glass side panel shows off the components, and three large 140 mm front fans deliver strong airflow.

  • Motherboards: ATX, micro ATX, Mini-ITX
  • Clearance: graphics card up to 305 mm, CPU cooler up to 160 mm, power supply up to 160 mm
  • Fans: 3 × 140 mm front, 2 × 120 mm top, 1 × 120 mm rear included, fixed RGB lighting
  • Front I/O: 1 × USB 3.0, 2 × USB 2.0, audio in and out
  • Drives: 2 × 2.5″ and 2 × 3.5″ mounts, combined HDD/SSD cage
  • Size and weight: 210 × 370 × 480 mm, 5.42 kg, 7 expansion slots

Description

Airflow sorted from day one

Three 140 mm front fans pull air in, while two top fans and one rear fan push it out, so there is no need to add fans. The lighting is fixed RGB rather than addressable, and the LED button switches it off. The hinged side glass has no screw holes, comes off easily during the build and is stronger for it.

Who this PC case is for

Gaming PC builders who prefer a white case with cooling included and keep data on both SSDs and 3.5″ hard drives. There is room for a graphics card up to 305 mm and a CPU cooler up to 160 mm. The power supply is chosen separately.

Specifications

General

BrandMONTECH
Form factorMidi Tower
Model nameX3 Mesh
Product colourWhite
TypePC
Side windowYes
IlluminationYes
Suitable forGaming
Maximum PSU length160
Top fans installed2x 120 mm
Illumination colourMulti
Number of 2.5" bays2
Number of 3.5" bays2
Rear fans installed1x 120 mm
Front fans installed3x 140 mm
Illumination locationBack/Front/Top
Number of expansion slots7
EAN4710562745214

Display

Tempered glass panel(s)Yes

Processor

Maximum CPU cooler height160

Storage

SSD form factor2.5"
HDD/SSD combo cageYes
Supported HDD sizes2.5/3.5
Number of HDDs supported2

Graphics

Maximum graphics card length305

Audio

Audio inputYes
Audio outputYes

Ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.01

Keyboard & controls

RGB control buttonYes

Battery & power

Power supply includedNo
Number of power supply units1

Performance & capacities

Anti-dust filterYes
Cooling & Ventilation SystemFront 140mm x 3 (LED Rainbow fan)Top 120mm x 2 (LED Rainbow fan)Rear 120mm x 1 (LED Rainbow fan)

Features

Design featuresVGA 305mm; CPU 160mm
Top fans diameters supported120
Rear fans diameters supported120
Front fans diameters supported120/140
Bottom fans diameters supported120
Number of top fans supported (max)2
Supported motherboard form factorsATX/micro ATX/Mini-ITX
Number of rear fans supported (max)1
Number of front fans supported (max)3
Number of bottom fans supported (max)2

Dimensions & weight

Width210 mm
Depth370 mm
Height480 mm
Weight5.42 kg

Questions & answers

How does the X3 Mesh differ from the X3 Glass?

According to Montech, the X3 Glass has glass front and side panels, while the X3 Mesh has a glass side panel. Clearances and included fans are the same.

Can the lighting be controlled from the motherboard?

No. The lighting is fixed RGB and can only be switched on or off with the button.

Is a power supply included?

No. Power supplies up to 160 mm long fit.
