NEOMOUNTS

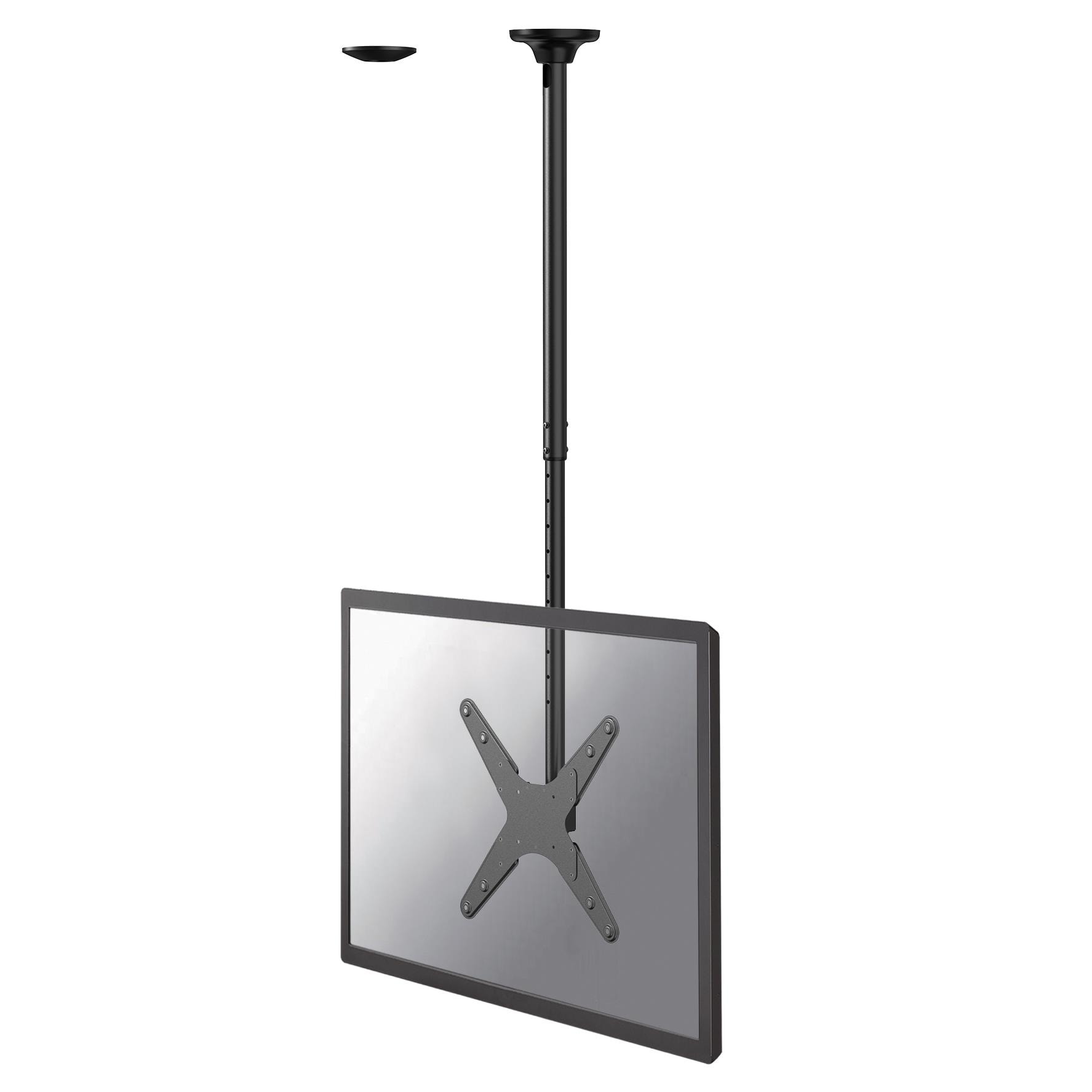

Neomounts FPMA-C340BLACK TV ceiling mount 32–75", VESA up to 400 × 400, 50 kg

The Neomounts FPMA-C340BLACK is a full-motion TV ceiling mount for 32–75″ screens with a 50 kg load limit and VESA support from 100 × 100 to 400 × 400 mm. Its height adjusts from 1060 to 1560 mm, the TV swivels 360° and tilts down by up to 25°.

  • Type: single-TV ceiling mount, one pivot point
  • VESA: 100 × 100, 150 × 200, 200 × 100, 200 × 200, 300 × 300, 400 × 200, 400 × 400 mm
  • Maximum load: 50 kg
  • Screen size: 32–75″
  • Adjustment: height 1060–1560 mm, tilt −25 to 0°, swivel 360°, rotation 6° (±3°)
  • Material and colour: steel, black

Description

A big TV from the ceiling, cables in the column

A TV of up to 75 inches and 50 kg hangs from the ceiling, freeing walls and floor. The 360° swivel turns the screen towards different viewing areas, and up to 25° of downward tilt helps when it hangs high. Cables run inside the column, and the manufacturer adds an extra cover for suspended ceilings. The NS-EP100BLACK extension pole adds 107.5 cm of height.

Who this TV ceiling mount is for

The FPMA-C340BLACK suits owners of a large TV with no free wall: an open-plan living room, a bar, a gym or a waiting area. The TV must be 32–75″, weigh up to 50 kg and use one of the listed VESA sizes.

Specifications

General

BrandNEOMOUNTS
Product colourBlack
Housing materialSteel
RotatingYes
SwivellingYes
Tilt angle25
Pivot angle-3 - 3
Swivel angle360
Mounting typeCeiling
Tilt adjustmentYes
Tilt angle range-25 - 0
Height adjustmentYes
Maximum VESA mount400 x 400
Minimum VESA mount100 x 100
Swivel angle range-180 - 180
Height adjustment typeManual
Number of pivot points1
Height adjustment range1060 - 1560
Products per pallet (EU)30
Master (outer) case width310
Master (outer) case height950
Master (outer) case length270
Master (outer) case net weight17600
Master (outer) case gross weight17600
Products per master (outer) case2
EAN8717371446369

Display

Panel mounting interface100 x 100/150 x 200/200 x 100/200 x 200/300 x 300/400 x 200/400 x 400
Maximum screen size75
Minimum screen size32
Number of displays supported1
Maximum weight capacity (per display)50

Storage

Maximum weight capacity50

Performance & capacities

Angle of rotation6

Features

Package net weight12800

Dimensions & weight

Height1785 mm
Weight5.54 kg

Questions & answers

Will my TV fit this mount?

Measure the distance between the four screw holes on the back of the TV in millimetres; that is the VESA size. The mount supports 100 × 100, 150 × 200, 200 × 100, 200 × 200, 300 × 300, 400 × 200 and 400 × 400 mm. The diagonal must be 32–75″ and the weight up to 50 kg.

Can it be installed on a suspended ceiling?

The manufacturer includes an extra cover for suspended ceilings. The mount itself still has to be fixed to the structural ceiling above, since a suspended ceiling cannot carry a 50 kg load.

Can the column be extended?

Yes, the manufacturer offers the NS-EP100BLACK extension pole, which adds 107.5 cm of height. The pole is a separate product.
