NEOMOUNTS

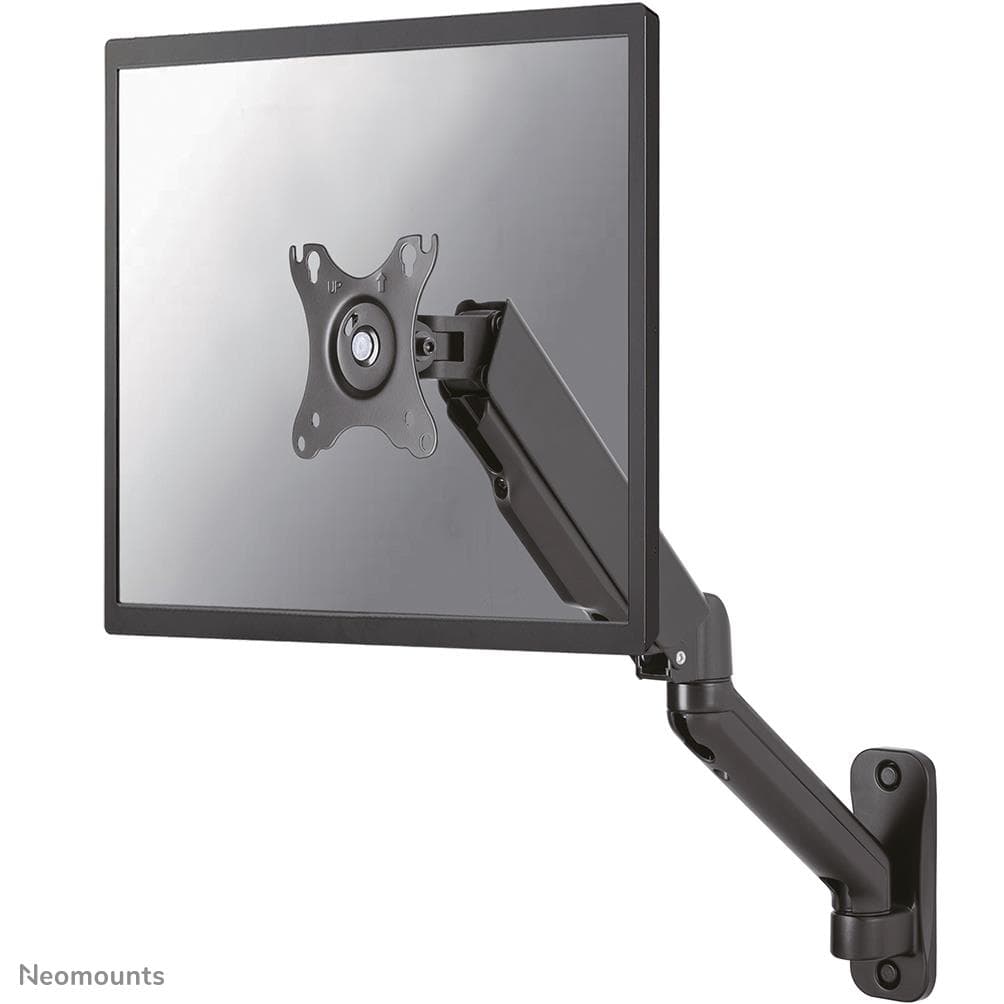

Neomounts WL70-450BL11 monitor wall mount 17–32", gas spring, up to 9 kg

The Neomounts WL70-450BL11 is a full-motion wall mount for a monitor or small TV from 17 to 32 inches. A gas spring lets you move the screen up and down over 250 mm, the mount carries 2–9 kg and fits VESA 75 × 75 and 100 × 100 mm.

  • Type: wall mount, full motion, gas spring height adjustment
  • VESA: 75 × 75 and 100 × 100 mm
  • Load: 2–9 kg, one screen
  • Screen size: 17–32″
  • Adjustment: height 0–250 mm, tilt −45° to +90°, swivel 180°, screen rotation 360°
  • Distance from wall: 90–540 mm; steel, cable management, black

Description

Gas spring and 360° rotation for precise positioning

The gas spring holds the screen at the height you set and lets you move it by hand over a 250 mm range. Tilt runs from −45° to +90°, the arm swivels 180° and the screen itself rotates 360°, so portrait orientation is possible too. Cables can be routed behind the screen through the cable management, and the easy-release VESA plate makes attaching and removing the screen quick.

Who this monitor mount is for

The WL70-450BL11 suits a workplace with little desk space, or wherever a monitor needs to hang on the wall but its position changes often. The screen must be 17–32″, weigh 2–9 kg and have VESA 75 × 75 or 100 × 100 mm mounting holes on the back.

Specifications

General

BrandNEOMOUNTS
Product colourBlack
Housing materialSteel
MountingScrews
RotatingYes
SwivellingYes
Swivel angle180
Mounting typeWall
Minimum weight2
Tilt adjustmentYes
Cable managementYes
Tilt angle range-45 - 90
Height adjustmentYes
Maximum VESA mount100 x 100
Minimum VESA mount75 x 75
Swivel angle range0 - 180
Height adjustment typeGas spring
Height adjustment range0 - 250
Products per pallet (EU)90
Master (outer) case width305
Distance to the wall (max)540
Distance to the wall (min)90
Master (outer) case height90
Master (outer) case length405
Master (outer) case net weight1600
Master (outer) case gross weight2300
Products per master (outer) case1
EAN8717371449049

Display

Panel mounting interface100 x 100/75 x 75
Maximum screen size32
Minimum screen size17
Number of displays supported1
Maximum weight capacity (per display)9

Storage

Maximum weight capacity9

Performance & capacities

Angle of rotation360

Features

Package net weight2300

Dimensions & weight

Width117 mm
Depth475 mm
Height491 mm
Weight1.64 kg
Depth (max)475

Questions & answers

Will my monitor fit this mount?

Measure the distance between the four screw holes on the back of the screen in millimetres; that is the VESA size. The mount supports 75 × 75 and 100 × 100 mm. The screen must also be 17–32″ and weigh 2–9 kg; a screen that is too light may not stay in place on the gas spring.

How far from the wall can the screen be pulled?

The distance between the screen and the wall ranges from 90 mm to 540 mm. Folded in, the screen sits close to the wall; pulled out, it can swivel up to 180°.

Is the mount suitable for a plasterboard wall?

The manufacturer does not specify. The mount is fixed to the wall with screws; installation depends on the wall material and fixings, and on plasterboard it is best screwed into the wall frame.
