TECNOWARE

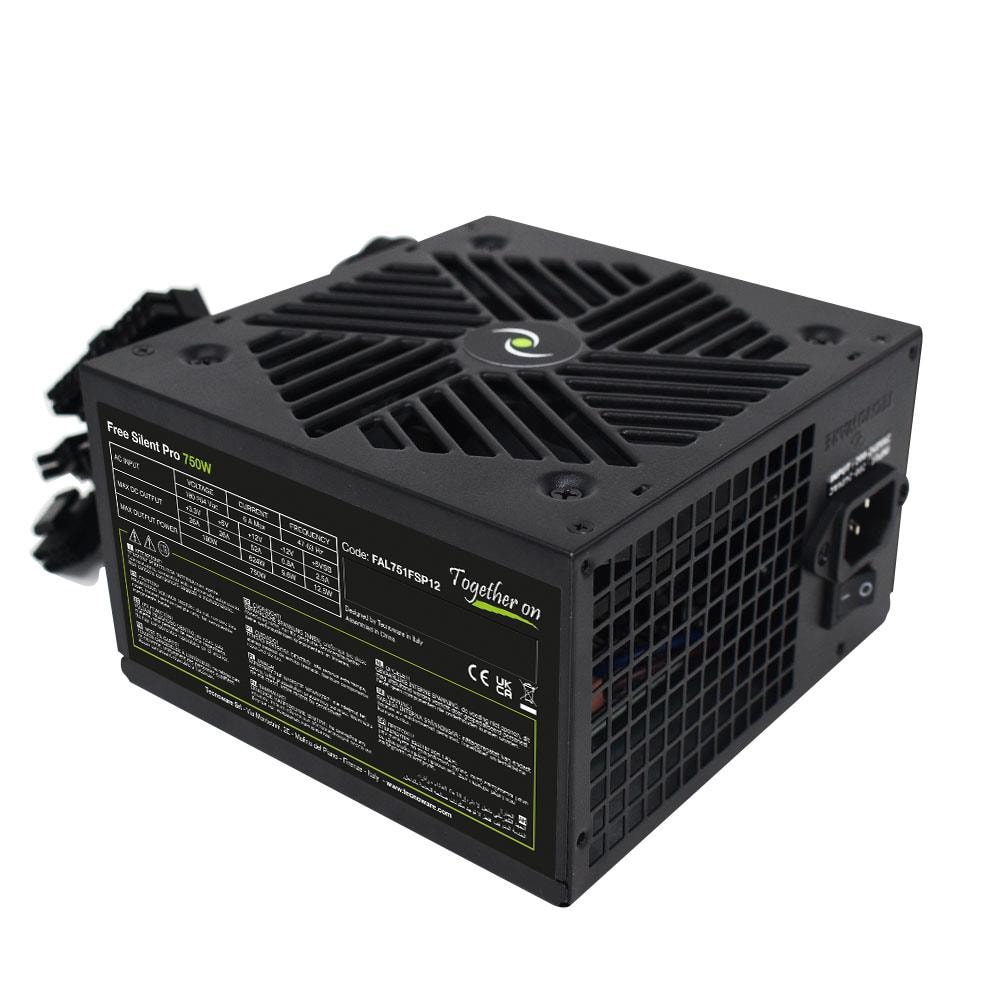

Tecnoware FAL751FSP12 750W ATX Desktop PC Power Supply

Storage temperature (T-T)-15 - 40
AC input voltage180 – 264 V
Operating temperature (T-T)0 – 40 °C
Width150 mm
Motherboard power connector24-pin ATX

The Tecnoware FAL751FSP12 is a 750W ATX desktop PC power supply built for reliable, everyday computing. Designed to ATX 12V v.2.31 specifications, it delivers stable power to a wide range of desktop builds while keeping noise levels in check thanks to its temperature-controlled 120mm fan.

Description

Solid Protection and Quiet Operation in One Unit

750W output with input voltage range of 180–264V, suitable for standard European mains supply
120mm silent fan with automatic speed control based on system temperature
Multiple protection circuits including surge, overload, and short circuit protection
Flat cables from 500mm to 800mm — easier routing in compact and mid-tower cases
Connectors included: 20+4-pin main, 4+4-pin CPU, 2x 6+2-pin PCIe, 4x SATA, 2x Molex

A straightforward choice for home and office desktop builds, budget workstations, or anyone replacing an ageing power supply in an ATX mid-tower or full-tower case.

Specifications

General

Brand	TECNOWARE
Product colour	Black
Purpose	PC
Efficiency	85
ATX version	2.31
Fan diameter	120
Number of fans	1
EAN	8026475179951

Processor

CPU power connector (4+4 pin)	Yes

Storage

Storage temperature (T-T)	-15 - 40

Ports

Motherboard power connector	24-pin ATX
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	2

Keyboard & controls

On/off switch	Yes

Battery & power

AC input voltage	180 – 264 V
AC input frequency	47 – 63 Hz
Total power	750
80 PLUS certification	No
Max output current (+5V)	26
Max output current (+12V)	52
Max output current (-12V)	0.8
Power protection features	Overload/Short circuit/Surge protection
Max output current (+3.3V)	26
Max output current (+5Vsb)	2.5
Power Factor Correction (PFC) type	Active
Power supply unit (PSU) form factor	ATX
