ARCTIC

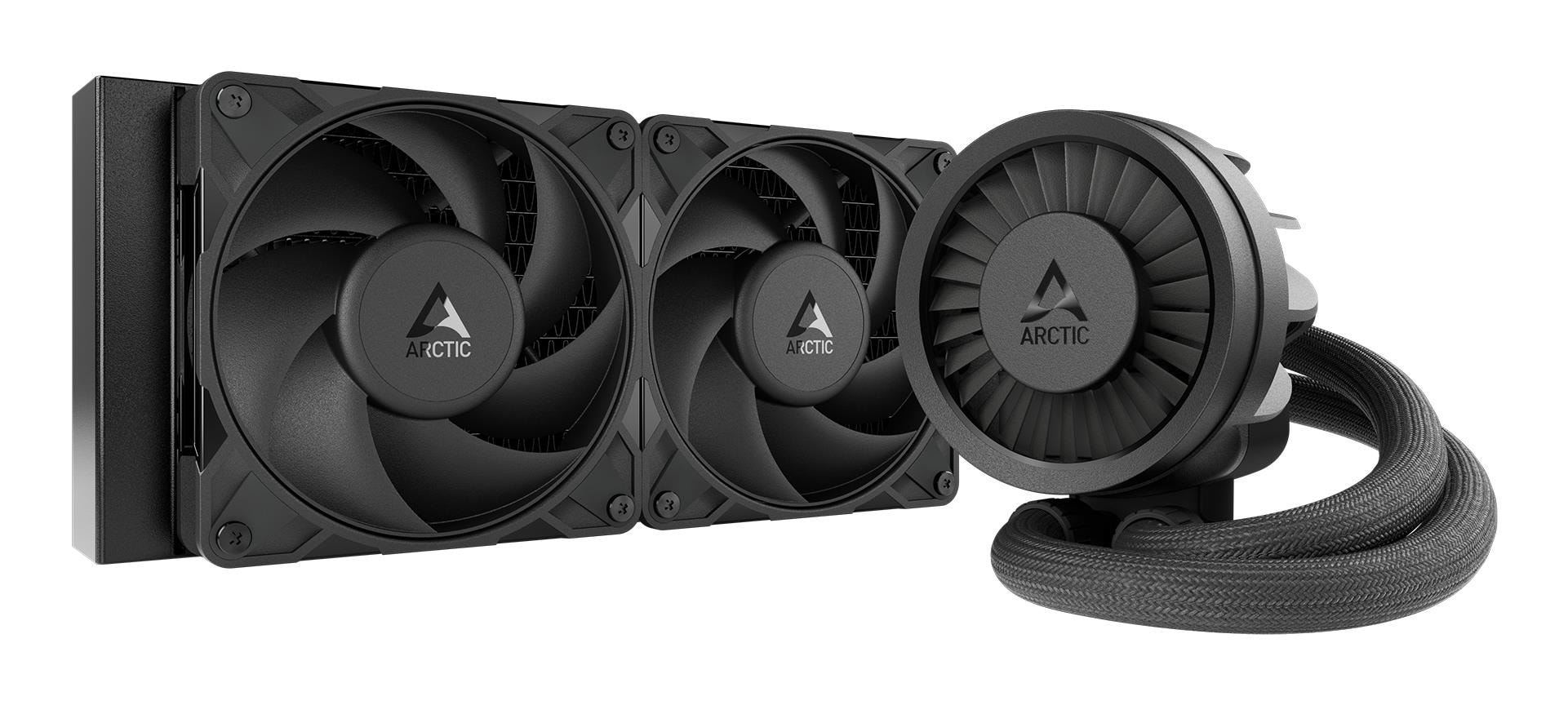

Arctic Liquid Freezer III Pro 240 liquid cooler 240 mm, VRM fan, Black

The Arctic Liquid Freezer III Pro 240 (ACFRE00178A) is a black, maintenance-free 240 mm liquid cooler for LGA 1700, LGA 1851, AM4 and AM5 sockets. A thick 38 mm radiator, two fans spinning at up to 3000 RPM and a VRM fan on the pump cool both the processor and the motherboard power stages.

  • Type and radiator: all-in-one liquid cooler, aluminium radiator 277 × 120 × 38 mm
  • Sockets: LGA 1700, LGA 1851, AM4, AM5
  • Fans: 2 × 120 mm, 600–3000 RPM, 4-pin PWM, fluid dynamic bearing, 6.9 mmH2O, 131 m³/h
  • Pump: 800–2800 RPM, copper base, VRM fan 400–2500 RPM
  • Tubing: 450 mm, 12.4 mm outer and 6 mm inner diameter
  • Weight: 1675 g

Description

A thicker radiator and airflow for the power stages

The 38 mm radiator has more fin area than a standard 27 mm one, and fans with 6.9 mmH2O static pressure push air right through it. A small VRM fan on the pump blows air over the power stages around the CPU socket, which in a liquid-cooled PC would otherwise get no airflow at all.

Who this liquid cooler is for

Gaming PC and workstation builders who want as much cooling as possible from a 240 mm format; overclockers whose motherboard power stages heat up under load; and anyone who prefers a maintenance-free black kit for an LGA 1700, LGA 1851, AM4 or AM5 platform.

Specifications

General

BrandARCTIC
Model nameLiquid Freezer III Pro 240 - Multi Compatible All-in-One CPU Water Cooler
Product colourBlack
TypeAll-in-one liquid cooler
Pump depth108.5
Pump width91
Pump height68.5
Tube length450
Bearing typeFluid Dynamic Bearing (FDB)
Fan diameter120
Tube diameter12.4
Number of fans2
Radiator depth277
Radiator width120
Radiator height38
Radiator materialAluminum
Suitable locationProcessor
Base plate materialCopper
Tube inner diameter6
Fan dimensions (W x D x H)120 x 120 x 25
EAN4895265000218

Processor

Supported processor socketsLGA 1700/LGA 1851/Socket AM4/Socket AM5

Ports

Fan connector4-pin
Pump connector4-pin

Battery & power

Cable length0.04 m
Fan current0.33
Fan voltage12
Pump current350
Pump voltage12

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Airflow131
Fan speed (max)3000
Fan speed (min)600
Maximum airflow77
Fan static pressure6.9
VRM fan speed (max)2500
VRM fan speed (min)400
Pump motor speed (max)2800
Pump motor speed (min)800

Features

Package typeHanging box
Pulse-width modulation (PWM) supportYes

Dimensions & weight

Weight1.68 kg

Questions & answers

Which sockets does it support?

The manufacturer lists LGA 1700, LGA 1851, AM4 and AM5.

What is the VRM fan for?

It is a small fan on the pump block (400–2500 RPM) that cools the motherboard voltage regulators, or VRM, around the processor.

Will it fit my case?

The radiator measures 277 × 120 × 38 mm, or 63 mm thick with the 25 mm fans. Check that the case has a 240 mm radiator mount and enough clearance for that thickness; the tubes are 450 mm long.
