Deepcool

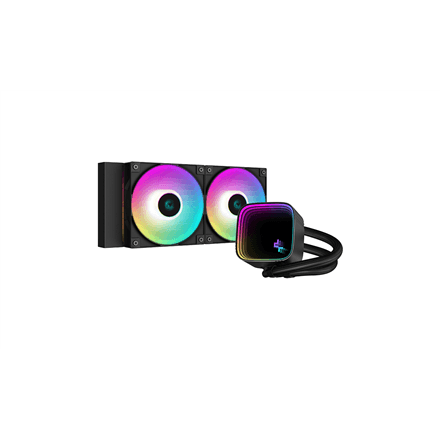

Deepcool LS520 SE liquid CPU cooler, LGA1700 and AM5, 120 mm fans

The Deepcool LS520 SE is a liquid CPU cooler for Intel and AMD processors that supports the current LGA1700 and AM5 sockets as well as several older ones. An aluminium radiator and 120 mm PWM fans spinning up to 2250 RPM keep the processor cool under load.

  • Type: liquid cooler, aluminium radiator, 12 V pump
  • Sockets: Intel LGA1700, LGA1200, LGA1151, LGA1150, LGA1155; AMD AM5, AM4
  • Fans: 120 × 120 × 25 mm, 500–2250 RPM, up to 60.85 CFM
  • Static pressure: up to 3.27 mmH2O
  • Connector and noise: 4-pin PWM, up to 32.9 dB

Description

Broad socket support for new and older platforms

The socket list covers Intel from LGA1155 up to LGA1700 plus AMD AM4 and AM5, so the cooler can move with you to a new PC when you change platform. Fan static pressure of up to 3.27 mmH2O helps push air through the radiator fins, and PWM control adjusts the speed between 500 and 2250 RPM to match the load.

Who this liquid cooler is for

Builders putting together a new LGA1700 or AM5 system; owners upgrading an older LGA1200 or AM4 PC who want to carry the cooler over to a future build; and gamers who want something more capable and tidier-looking than a box cooler.

Specifications

General

BrandDeepcool
TypeCPU Liquid Cooler
Fan dimensions (W x D x H)120 x 25 x 120 mm
Radiator materialAluminum
EAN6933412727989

Processor

Processor brand nameIntel, AMD
Supported processor socketsIntel: LGA1700/1200/1151/1150/1155AMD: AM5/AM4

Ports

Fan connector4-Pin (PWM)

Battery & power

Pump voltage12 V

Performance & capacities

Noise level (max)32.9 dB
Air pressure3.27 mmH2O (Max)
Fan speed (max)2250 RPM
Fan speed (min)500 RPM
Maximum airflow60.85 cfm

Dimensions & weight

Net weight1.30 kg

Questions & answers

Which sockets does the cooler support?

Intel LGA1700, LGA1200, LGA1151, LGA1150 and LGA1155, plus AMD AM5 and AM4.

How loud is it?

The manufacturer rates the maximum noise level at 32.9 dB. The fans spin at 500–2250 RPM, and PWM control keeps the speed low under light load.

Will the radiator fit in my case?

The manufacturer does not specify the radiator dimensions here; the fans measure 120 × 120 × 25 mm. Compare the radiator size on the Deepcool product page with the radiator mounts in your case.
