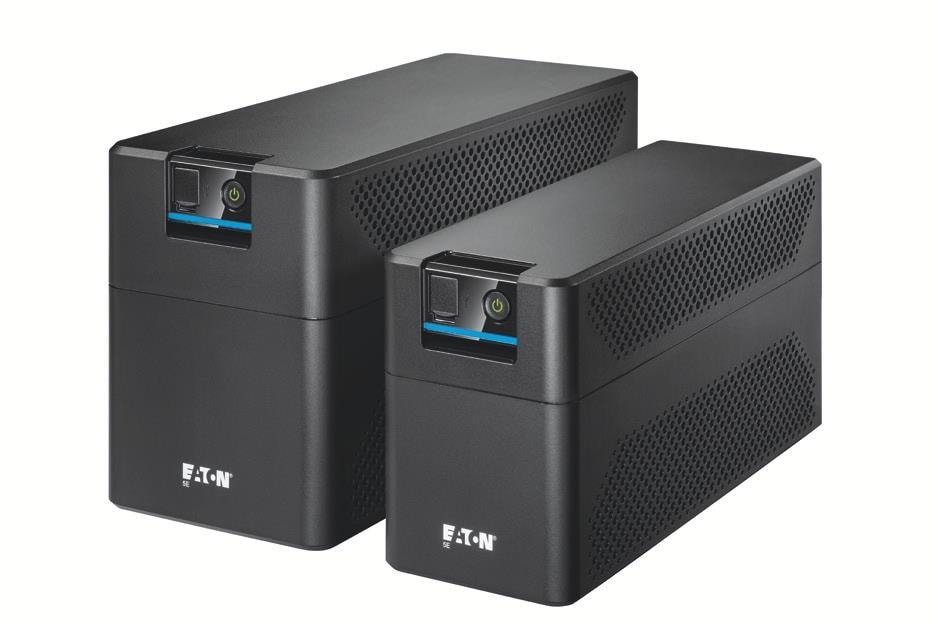

Eaton 5E Gen2 5E900UD UPS 900 VA / 480 W, line-interactive, pure sine wave

Name: Eaton 5E Gen2 5E900UD UPS 900 VA / 480 W, line-interactive, pure sine wave
Brand: EATON
SKU: ELKO-1396944
Price: 101.99 EUR
Availability: InStock

The Eaton 5E Gen2 900 USB (5E900UD) is a line-interactive UPS rated at 900 VA / 480 W with a pure sine wave output, two Schuko outlets and a USB connection. The fanless tower housing quietly protects a computer from both outages and voltage swings.

Capacity: 900 VA / 480 W
Topology: line-interactive, pure sine wave, double-boost AVR
Outputs: 2 × Schuko (Type F)
Interface: USB 2.0, automatic shutdown on Windows, macOS and Linux
Housing: tower, 100 × 288 × 148 mm, 5.3 kg, fanless, 25 dB

Description

Voltage regulation that saves the battery for a real outage

Double-boost AVR corrects both over- and undervoltage without switching to battery, so the charge is kept for a real power cut. Cold start lets you switch the UPS on without mains, and auto-restart brings it back on by itself after the battery has fully discharged. The automatic battery test and replacement alarm tell you in good time when the battery is worn.

Who this UPS is for

Home offices and small offices where 360 W would fall short, for example with a more powerful desktop and a large monitor. Over USB the UPS shuts the computer down on its own during a longer outage, and Eaton UPS Companion software lets you track energy use and settings.

Specifications

General

Brand	EATON
Form factor	Tower
Product colour	Black
Cold start	Yes
Auto-restart	Yes
UPS topology	Line-Interactive
AC outlet types	Type F
Audible alarm(s)	Yes
AC outlets quantity	2
Sustainability compliance	Yes
EAN	3553340704246

Ports

USB 2.0 ports quantity	1
USB port	Yes

Keyboard & controls

Control type	Buttons

Battery & power

Power source type	AC
Output power	480
Input frequency	50/60
Output power capacity	0.9
Automatic battery test	Yes
Power protection features	Over voltage/Under voltage
Input operation voltage (max)	240
Input operation voltage (min)	220
Output operation voltage (max)	240
Output operation voltage (min)	220

Performance & capacities

Noise level	25 dB
Operating temperature (T-T)	0 – 40 °C
Audible alarm modes	Battery replacement

Dimensions & weight

Width	100 mm
Depth	288 mm
Height	148 mm
Weight	5.3 kg

Questions & answers

Can the UPS shut down my computer over USB?

Yes. Via USB it integrates with Windows, macOS and Linux power management and shuts the system down cleanly when the battery starts to run low.

What does pure sine wave mean?

A pure sine output has the same shape as normal mains voltage. PC power supplies with active PFC and other sensitive devices run on battery just as they do on mains.

What outlets does it have?

It has two Schuko (Type F) outlets that take a standard European plug without an adapter. Total draw of the connected devices must stay below 480 W.
