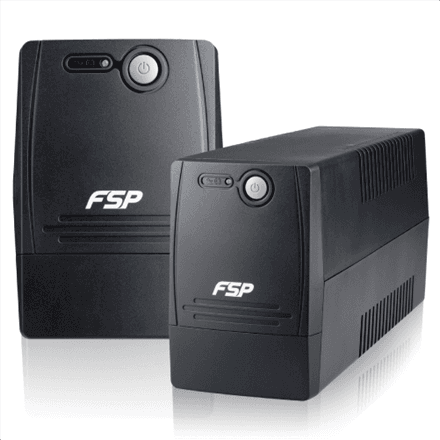

FSP FP 800 UPS 800 VA / 480 W, line-interactive, 2 × Schuko
FSP

FSP FP 800 UPS 800 VA / 480 W, line-interactive, 2 × Schuko

FSP FP 800 is a compact line-interactive UPS for a home computer, a router or a small office workstation. It delivers 800 VA / 480 W, its AVR evens out the mains voltage, and during a power cut the battery gives you time to save your work and shut the computer down properly.

  • Capacity: 800 VA / 480 W
  • Topology: line-interactive, boost and buck AVR, simulated sine wave
  • Outlets: 2 × Schuko (Type F)
  • Battery: 1 × 12 V 9 Ah, 6 h recharge time
  • Voltage: input 162–290 V, output 220 V, 50/60 Hz
  • Housing: tower, 10.1 × 27.9 × 14.2 cm, 4.1 kg, black

Description

AVR that smooths voltage swings without draining the battery

A line-interactive UPS handles low or high mains voltage with automatic voltage regulation: it boosts or bucks the voltage and leaves the battery alone. An input range of 162–290 V means short sags do not push the unit onto battery power. Cold start lets you switch the UPS on without mains power, it restarts by itself when power returns, the battery charges even while the unit is off, and FSP lists it as generator compatible.

Who this UPS is for

FP 800 suits a home office or a small office that needs to protect one desktop with its monitor, or a router together with a NAS. Two Schuko outlets take plugs without adapters, LEDs and an audible alarm report its status, and the maximum noise level is rated at 40 dB. It is a solution for one workstation rather than for a whole office.

Specifications

General

BrandFSP
Product type•Compact size•Excellent microprocessor control guarantees high reliability•Boost and buck AVR for voltage stabilization•Auto restart while AC is recovering•Simulated sine wave•Off-mode charging•Cold start function•Generator compatible
Colour of productBlack
AC outlet typesType F (Schuko)
AC outlets quantity2
Audible alarm(s)Yes
Auto-restartYes
Cold startYes
Form factorTower
Operating relative humidity (H-H)0 - 90 %
UPS topologyLine-Interactive
WaveformSine
EAN4711140489254

Storage

Capacity800 VA

Audio

Battery replacement alarmsAudible

Battery & power

Battery capacity9 Ah
Automatic Voltage Regulation (AVR)Yes
Battery recharge time6 h
Battery voltage12 V
Input operation voltage (max)290 V
Input operation voltage (min)162 V
Off-mode chargingYes
Output operation voltage (max)220 V
Output operation voltage (min)220 V
Output power480 W
Output power capacity800 VA
Power protection featuresOvercharge, Overload
Power supply input frequency50/60 Hz

Performance & capacities

Noise level (max)40 dB
Operating temperature (T-T)0 - 40 °C

Features

LED indicatorsYes
Number of batteries supported1

Dimensions & weight

Width10.1 cm
Height14.2 cm
Depth27.9 cm
Weight4.9 g
Net weight4.097 kg

Questions & answers

How long will FP 800 keep my computer running?

The manufacturer does not specify a runtime. It depends on the load: the further your consumption stays below the 480 W limit, the longer the 12 V 9 Ah battery lasts. The main job of a UPS is to give you time to save data and shut down cleanly.

What is the difference between VA and W?

800 VA is apparent power, while 480 W is the real power the connected devices may draw in total. Size by watts: the combined draw of the computer, monitor and other equipment should stay below 480 W.

How does it signal an ageing battery?

FP 800 sounds an audible alarm when the battery needs replacing. It holds one 12 V 9 Ah battery, and a full recharge takes about 6 hours according to FSP.
