KINGSTON

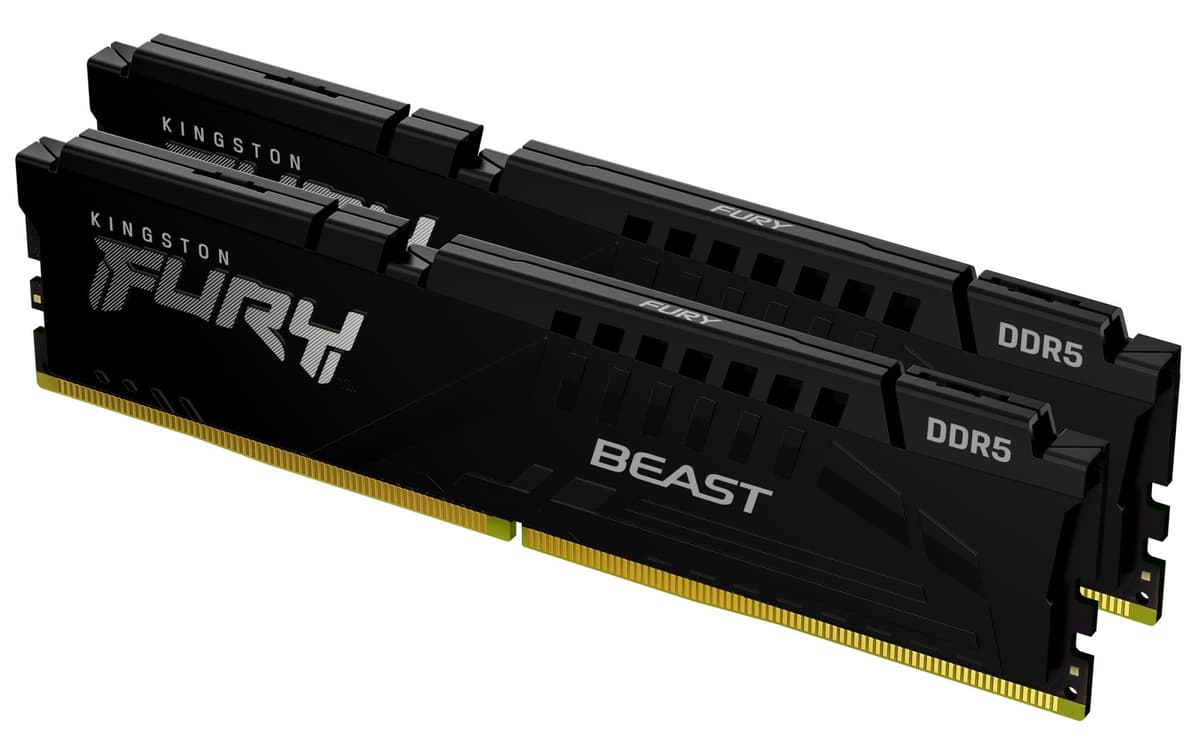

Kingston FURY Beast DDR5 RAM 2×16 GB 6000 MT/s CL36 KF560C36BBE2K2-32

The Kingston FURY Beast KF560C36BBE2K2-32 is a DDR5 desktop memory kit made up of two 16 GB modules, 32 GB in total. It runs at 6000 MT/s with CL36 latency, and its AMD EXPO profile sets that speed on the motherboard with a single setting. A low heat spreader leaves room for a large CPU cooler.

  • Type: DDR5, 288-pin DIMM, unbuffered, for desktops
  • Capacity and kit: 32 GB (2 × 16 GB)
  • Speed: 6000 MT/s
  • Timing: CL36
  • Voltage: 1.35 V
  • Profile and look: AMD EXPO, no lighting, black, heat spreader, 34.87 mm tall

Description

6000 MT/s and CL36 for balanced speed

The 6000 MT/s rating tells you how many million data transfers per second the memory performs, and CL (CAS latency) how many clock cycles pass between a command and the data arriving. The lower the CL at a given speed, the quicker the response. The 32 GB kit of two 16 GB modules leaves headroom for gaming while streaming, video editing and running many applications at once.

EXPO profile: rated speed with one BIOS setting

Without extra setup the modules start with the standard settings stored in their SPD. To get the full 6000 MT/s at CL36, select the AMD EXPO profile in the motherboard BIOS or UEFI, and it loads the right speed, timings and voltage for you. According to the Kingston series description, the memory is tested by leading motherboard manufacturers and appears on their qualified vendor lists (QVL).

A low heat spreader that stays clear of the cooler

The modules have no lighting and a black low-profile heat spreader only 34.87 mm tall. That matters when the radiator or fan of a CPU cooler hangs over the memory slots: a low module fits where a taller RGB kit would hit the cooler. The plain look also suits office and workstation builds where lighting effects are not wanted.

DDR5 features that keep things stable

Each module has built-in on-die ECC, which helps maintain data integrity at high speeds, and its own power management IC (PMIC) that regulates voltage right on the module. DDR5 splits each module into two independent 32-bit subchannels, which makes data handling more efficient. Operating voltage is 1.35 V. This is regular unbuffered memory, not server-class ECC memory.

Dimensions and installation

Each module is 133.35 mm long, 34.87 mm tall and 6.62 mm thick. The contacts are gold-plated and the operating temperature range is 0–85 °C. Install the two modules in the slots your motherboard manual recommends for dual-channel mode, usually every other slot. Before installing, check how much room there is between the CPU cooler and the memory slots.

Who this RAM is for

PC builders who need 32 GB of DDR5 and whose large CPU cooler leaves little room above the memory slots; content creators and developers who run several demanding applications at once; and workstation builders who prefer a plain black look without lighting effects.

Specifications

General

BrandKINGSTON
ECCNo
On-Die ECCYes
SPD profileYes
Lead platingGold
Component forPC
Buffered memory typeUnregistered (unbuffered)
Master (outer) case width203.2
Master (outer) case height101.6
Master (outer) case length311.15
Master (outer) case gross weight2754.94
Products per master (outer) case25
AMD Extended Profiles for Overclocking (EXPO)Yes
EAN740617345841

Memory

Internal memory32 GB
Internal memory typeDDR5
CAS latency36
Memory ranking1
Memory form factor288-pin DIMM
Memory data transfer rate6000
Memory layout (modules x size)2 x 16

Storage

Storage temperature (T-T)-55 - 100

Battery & power

Memory voltage1.35

Performance & capacities

Operating temperature (T-T)0 – 85 °C
Cooling typeHeatsink

Features

BacklightNo

Dimensions & weight

Width6.62 mm
Depth133.35 mm
Height34.87 mm
Weight74.6 g

Questions & answers

Will this memory work in a laptop?

No. These are 288-pin DIMM modules for desktop motherboards. Laptops use smaller SO-DIMM modules or memory soldered to the board.

Are the modules in the kit meant to be used together?

Yes, the kit contains two identical 16 GB modules intended to run together in dual-channel mode. Fit them in the slots recommended in the motherboard manual and enable the AMD EXPO profile in the BIOS.

Does the memory work with an Intel motherboard?

The modules follow the DDR5 standard and work in desktop motherboards with DDR5 support. The product data confirms an AMD EXPO profile, and according to the Kingston series description EXPO-certified modules also include Intel XMP 3.0 profiles. Check the motherboard maker QVL for exact compatibility.

Will the memory fit under a large CPU cooler?

The modules are 34.87 mm tall. Compare that with the memory height clearance listed by your cooler manufacturer.
