MSI MAG CoreLiquid A13 240 liquid cooler 240 mm, ARGB, Black
MSI

MSI MAG CoreLiquid A13 240 liquid cooler 240 mm, ARGB, Black

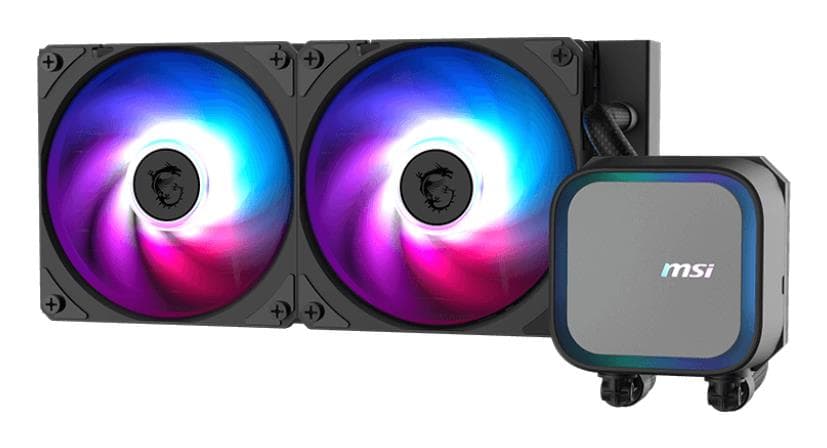

The MSI MAG CoreLiquid A13 240 is a black 240 mm liquid cooler with two pre-installed 120 mm ARGB fans. A pump spinning at up to 3800 RPM, a full copper base and single-cable connection make it easy to fit on LGA 1700, LGA 1851, AM4 and AM5 platforms.

  • Type and radiator: all-in-one liquid cooler, aluminium radiator 277 × 119.6 × 27 mm, 20 FPI
  • Sockets: LGA 1700, LGA 1851, AM4, AM5
  • Fans: 2 × 120 mm CycloBlade 7, PWM, rifle bearing, ARGB Gen2
  • Pump: up to 3800 RPM, 20 dB, ceramic bearings, copper base with 0.1 mm micro-channels
  • Block and tubing: block 70.9 × 69.3 × 56.98 mm, nylon-braided EPDM tubes

Description

One cable and the fans already fitted

The fans are mounted on the radiator at the factory and all wiring connects through a single cable, so there are fewer wires in the case and the build goes faster. The Intel LGA 1700 and 1851 bracket is pre-installed and screws are included. Twelve widened radiator channels and low-evaporation EPDM tubing help keep cooling stable under long loads.

Who this liquid cooler is for

Gaming PC builders who want to move to liquid cooling without complicated wiring; owners of a black case with room for a 240 mm radiator; and anyone who wants to match the lighting with the rest of their parts through MSI Mystic Light.

Specifications

General

BrandMSI
Model nameMAG CORELIQUID A13 240 BLACK
Product colourBlack
TypeAll-in-one liquid cooler
Bearing typeRifle bearing
Fan diameter120
Tube materialEthylene-propylene diene monomer (EPDM)
Number of fans2
Radiator depth119.6
Radiator width277
Radiator height27
Illumination LEDYes
Waterblock depth69.3
Waterblock width70.9
Radiator materialAluminum
Suitable locationMotherboard, Processor
Waterblock height56.98
Base plate materialCopper
Illumination colourMulti
Fan dimensions (W x D x H)120 x 120 x 25
Fan's mean time to failure (MTTF)40000
Pump's mean time to failure (MTTF)25000
EAN4711377273763

Processor

Supported processor socketsLGA 1700/LGA 1851/Socket AM4/Socket AM5

Ports

Fan connector3-pin
Pump connector3-pin

Battery & power

Cable length0.45 m
Fan current0.15
Fan voltage5
Pump current240
Pump voltage5
Fan power consumption1.8
Pump power consumption2.88

Performance & capacities

Maximum airflow62.6
Pump motor speed3800
Pump noise level20

Features

Screws includedYes
Pulse-width modulation (PWM) supportYes

Questions & answers

Which sockets does it support?

The manufacturer lists LGA 1700, LGA 1851, AM4 and AM5. The Intel bracket comes factory-fitted.

Will it fit my case?

The radiator measures 277 × 119.6 × 27 mm and the fans are 25 mm thick. The case needs a 240 mm radiator mount, i.e. room for 2 × 120 mm fans.

How fast do the fans spin?

The manufacturer does not specify fan speeds. What is listed is PWM control and rifle bearings.
