How a thermal pad works

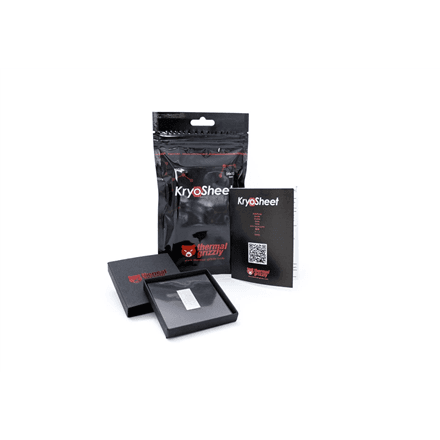

The surfaces of a chip and a heatsink are never perfectly smooth, and microscopic air pockets between them conduct heat poorly. A thermal pad fills that gap and carries heat from the chip to the heatsink. Unlike paste, the sheet does not need spreading: it is laid on a clean surface and the heatsink is fastened on top. Before fitting, measure the contact area and check that 24 × 12 mm suits it.
