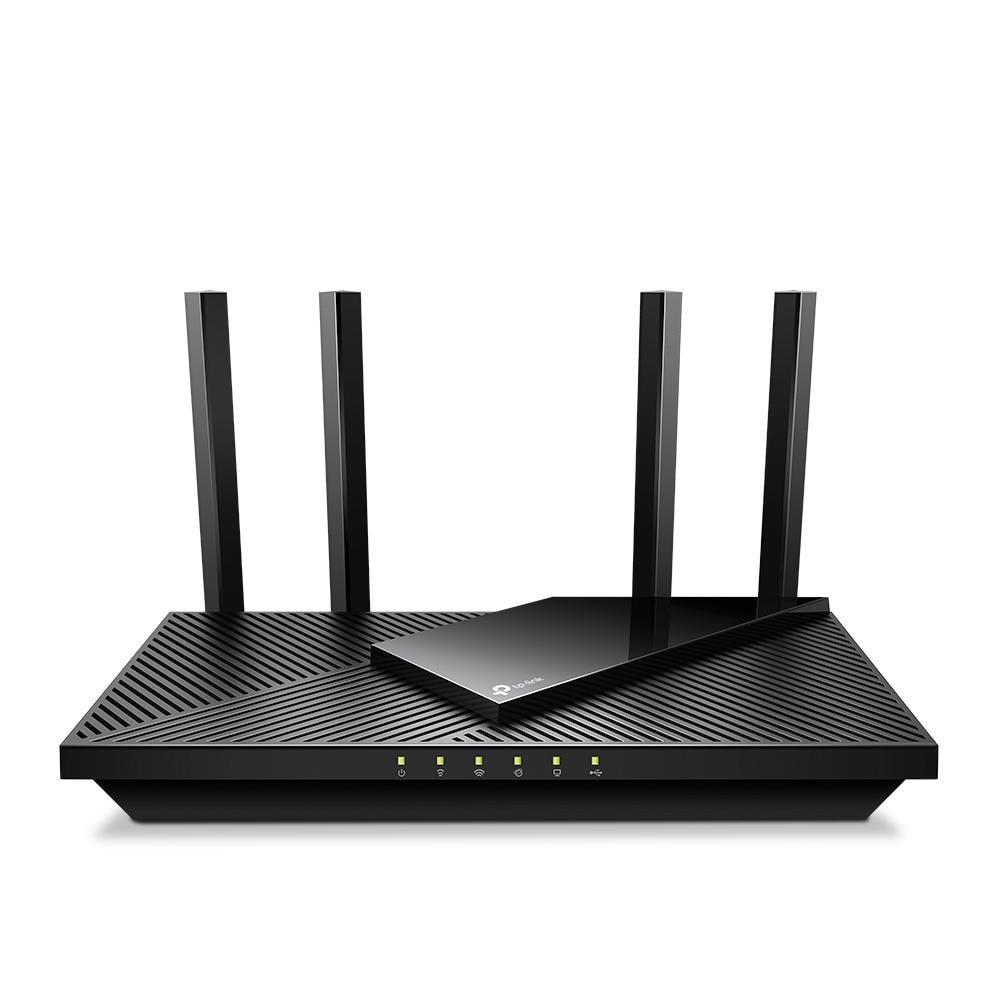

TP-Link Archer AX55 Pro Wi-Fi 6 router AX3000, 2.5G port, USB 3.0

TP-Link Archer AX55 Pro is a dual-band Wi-Fi 6 router with a 2.5 Gigabit port for fast internet plans. Four external antennas, a USB 3.0 port and VPN support make it a versatile home router.

  • Wi-Fi: Wi-Fi 6 (802.11ax) AX3000, 5 GHz up to 2402 Mbit/s and 2.4 GHz up to 574 Mbit/s
  • Bands: 2.4 GHz and 5 GHz, 160 MHz channel on 5 GHz
  • Ports: 1 × 2.5G WAN/LAN, 1 × 1G WAN/LAN, 3 × 1G LAN, 1 × USB 3.0
  • Antennas: 4 external, beamforming, OFDMA, OneMesh
  • Management: Tether app and web interface, HomeShield, OpenVPN, PPTP, L2TP
  • Power: adapter included, 261.1 × 134.5 × 41 mm

Description

A 2.5G port that does not hold back fast internet

When your internet plan is faster than 1 Gbit/s, a regular Gigabit WAN port becomes the bottleneck. The 2.5 Gigabit port on Archer AX55 Pro can be set as WAN or LAN, for example to connect a NAS or a powerful PC. A drive plugged into the USB 3.0 port becomes shared network storage reachable over FTP and Samba.

Who this router is for

Homes with fast fibre and many devices online at the same time. The VPN server and client give access to the home network from outside, while parental controls and QoS help share bandwidth. A OneMesh range extender can grow the network later.

Specifications

General

BrandTP-LINK
Product typeDesktop/pole router
Product colourBlack
DSL WANNo
FirewallYes
VPN serverOpenVPN, PPTP, L2TP
DHCP clientYes
DHCP serverYes
Guest accessYes
Media serverYes
Parental controlYes
NAT functionalityPort Forwarding, Port Triggering, UPnP, DMZ
Dynamic DNS (DDNS)Yes
Built-in FTP serverYes
WAN connection typeRJ-45
DoS attack preventionYes
Quick installation guideYes
Universal Plug and Play (UPnP)Yes
Stateful Packet Inspection (SPI)Yes
Operating relative humidity (H-H)10 - 90
EAN4897098686805

Storage

Support Samba (storage)Yes
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB portYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports5
Ethernet LAN interface typeGigabit Ethernet
USB sharingYes
Ethernet WANYes
SIM card slotNo
Port forwardingYes
Port triggeringYes
3G/4G USB modem compatibilityNo

Connectivity

Wi-Fi standardsWi-Fi 6 (802.11ax)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)2402 Mbit/s
Antenna designExternal
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Security algorithmsWPA/WPA2/WPA3
Antenna type2x2
Antenna includedYes
Antennas quantity4
Number of guest networks (5 GHz)1
Network address translation (NAT)Yes
Number of guest networks (2.4 GHz)1
WLAN data transfer rate (first band)2402
WLAN data transfer rate (second band)574

Software & security

Firewall securitySPI Firewall

Keyboard & controls

On/off switchYes
Reset buttonYes
WPS push buttonYes

Battery & power

AC adapter includedYes
Power source typeDC

Performance & capacities

Operating temperature (T-T)0 – 40 °C

Features

Cables includedLAN (RJ-45)
DMZ supportYes
VPN supportOpenVPN, PPTP, L2TP
Indication lightYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width261.1 mm
Depth134.5 mm
Height41 mm

Questions & answers

Does the router work with a SIM card or 4G modem?

No. There is no SIM slot and 3G/4G USB modems are not supported, so the internet comes in over an RJ-45 cable.

Does Archer AX55 Pro support mesh?

Yes, through OneMesh, when you add a TP-Link range extender that supports OneMesh.

What is in the box?

The router, power adapter, LAN cable and quick installation guide.
