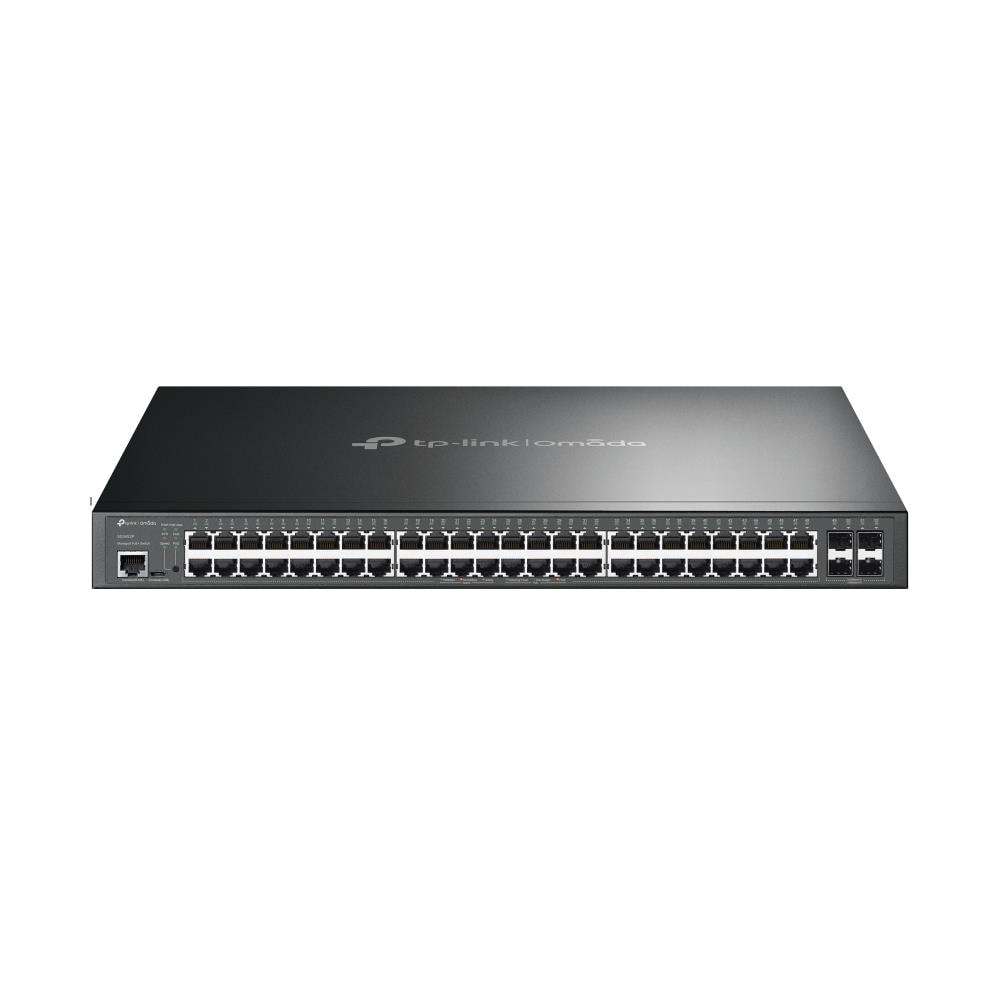

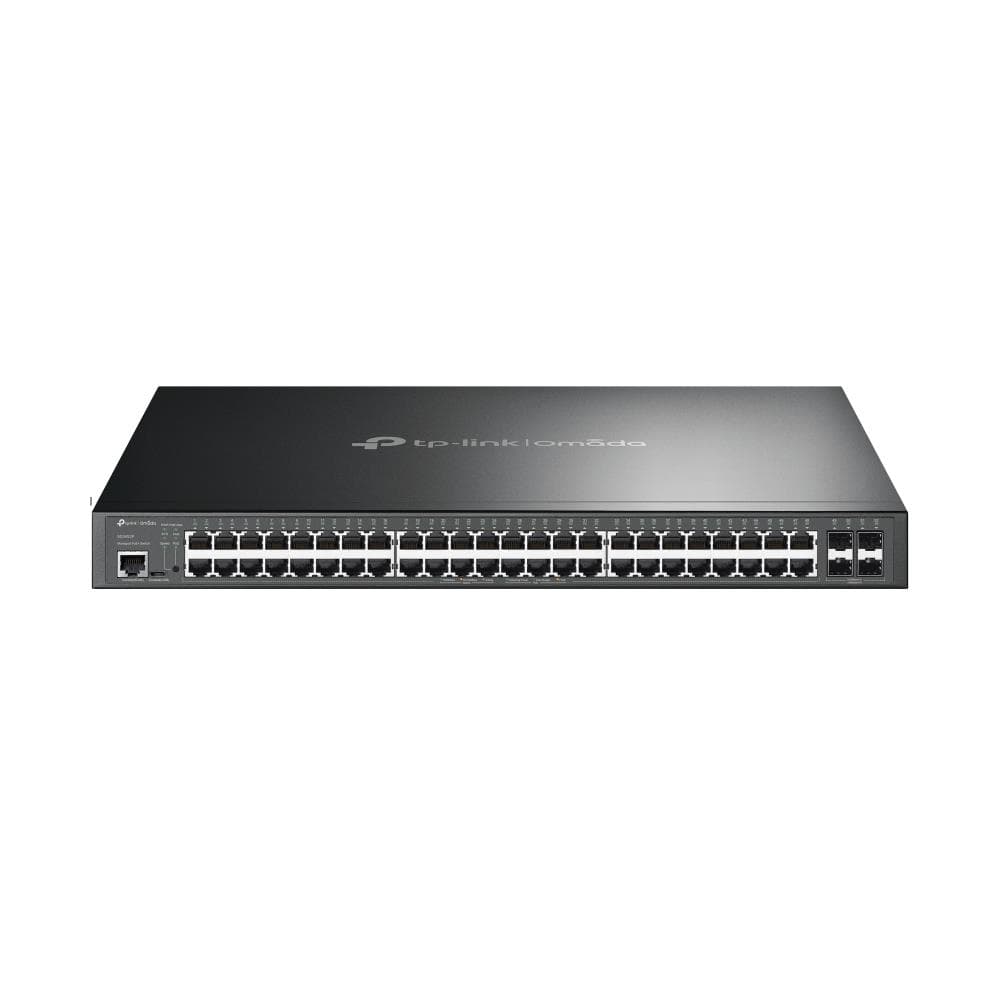

TP-Link Omada TL-SG3452P 48-Port Gigabit PoE+ L2+ Managed Switch

Switching capacity104
Power consumption (max)464.2 W
Operating temperature (T-T)0 – 40 °C
Switch typeManaged
Width440 mm
Ethernet LAN data rates10,100,1000

The TP-Link Omada TL-SG3452P is a rack-mountable L2+ managed switch built around 48 Gigabit PoE+ ports and a 384 W PoE budget, giving network administrators the headroom to power access points, IP cameras and VoIP phones across large deployments from a single device.

Description

Enterprise-Grade Control Without the Complexity

48× Gigabit 802.3af/at PoE+ ports with up to 30 W per port and a 384 W total budget
4× Gigabit SFP uplink slots for fibre or long-distance connections to core infrastructure
L2+ features including static routing, VLAN, ACL, QoS (L2–L4) and IGMP Snooping for precise traffic control
IP-MAC-Port Binding and ACL defend against ARP spoofing, broadcast storms and DoS attacks
Centralised management via Omada cloud, web GUI, CLI, SNMP and RMON — plus ERPS ring topology protection

The TL-SG3452P suits enterprise office networks, university campuses and ISP edge deployments where high port density, reliable PoE delivery and granular Layer 2+ management are essential requirements.

Specifications

General

Brand	TP-LINK
Form factor	1U
Model name	TL-SG3452P
Product colour	Black
Manual	Yes
Series	Omada
IP routing	Yes
Jumbo frames	9000
Static route	Yes
Cloud-managed	Yes
IGMP snooping	Yes
Rack mounting	Yes
Rate limiting	Yes
ARP inspection	Yes
Authentication	MAC-based authentication, Port-based authentication
Number of fans	3
Forwarding rate	77.38
Number of VLANs	4000
Link aggregation	Yes
System event log	Yes
MAC address table	16000
Quick start guide	Yes
Store-and-forward	Yes
Management protocols	SNMPv1/v2c/v3, SNTP
Packet buffer memory	12
Policy-based routing	Yes
Web-based management	Yes
Active link detection	Yes
Spanning tree protocol	Yes
Broadcast storm control	Yes
Number of static routes	48
Access Control List (ACL)	Yes
SFP module slots quantity	4
Head-of-line (HOL) blocking	Yes
Operating relative humidity (H-H)	10 - 90
GARP VLAN Registration Protocol (GVRP)	Yes
EAN	6935364006273

Storage

Switching capacity	104
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Ethernet LAN data rates	10,100,1000
Power over Ethernet (PoE)	Yes
Console port	RJ-45/Micro-USB
Port mirroring	Yes
Power connector	AC-in jack
Virtual LAN features	MAC address-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
Total Power over Ethernet (PoE) budget	384
Power over Ethernet (PoE) power per port	30
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
Power over Ethernet plus (PoE+) ports quantity	48

Connectivity

Networking standards	IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ad/IEEE 802.3x

Keyboard & controls

Switch type	Managed
Reset button	Yes
Switch layer	L2/L3

Battery & power

Power consumption (max)	464.2 W
AC input voltage	100 – 240 V
AC input frequency	50/60
Power source	AC
Power supply included	Yes

Performance & capacities

Operating temperature (T-T)	0 – 40 °C
Heat dissipation	1584.08
BPDU filtering/protection	Yes

Features

Cables included	AC
LED indicators	Yes
10G support	No
MIB support	Yes
Package type	Box
VLAN support	Yes
DHCP features	DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
Loop protection	Yes
SSH/SSL support	Yes
Multicast support	Yes
Password protection	Yes
Flow control support	Yes
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
