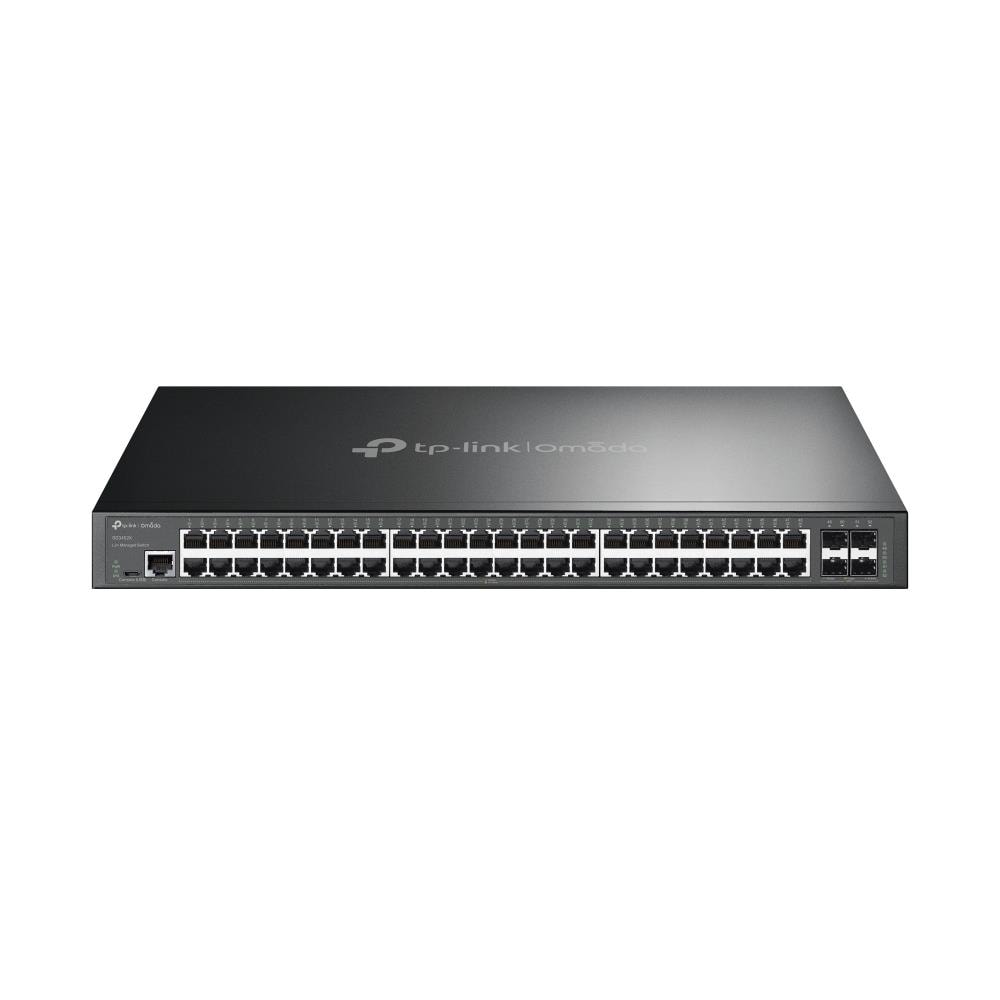

TP-Link Omada TL-SG3452X network switch 48 × 1G, 4 × SFP+ 10G, L2+

The TP-Link Omada TL-SG3452X is a managed L2+ network switch with 48 Gigabit RJ-45 ports and 4 SFP+ slots for 10G links. Switching capacity is 176 Gbit/s, and the fanless chassis takes 1U in a 19″ rack. You can manage it standalone or from the Omada SDN cloud and the Omada app.

  • Ports: 48 × Gigabit RJ-45 (10/100/1000)
  • Fibre slots: 4 × SFP+ (10G)
  • Performance: 176 Gbit/s switching capacity, 130.9 Mpps forwarding rate, 16,000-entry MAC table
  • Management: L2+, VLAN (up to 4000), static routing, ACL, QoS, web, CLI, SNMP, Omada cloud and app
  • PoE: none
  • Installation: 1U, rack mounting kit, 440 × 220 × 44 mm, fanless
  • Power: 100–240 V AC, up to 32.72 W

Description

10G uplinks without a bottleneck

Four SFP+ slots provide 10 Gbit/s connections to servers, NAS units and other switches. When 48 users work through the Gigabit ports at once, their traffic is not squeezed through a single Gigabit uplink. TP-Link says the 10G ports are backward compatible with Gigabit equipment, so the network can be upgraded step by step.

176 Gbit/s for every port

Switching capacity is 176 Gbit/s and the forwarding rate is 130.9 million packets per second, enough for all 48 Gigabit ports and the four 10G slots to run at full speed simultaneously. The MAC address table holds 16,000 entries, and jumbo frames of up to 9000 bytes are supported, which speeds up large file transfers on a storage network.

Omada SDN and standalone management

The switch is part of the TP-Link Omada SDN platform, so you can configure and monitor it through the cloud or the Omada app together with other Omada devices. Standalone, it is managed through the web interface, command line, SNMP and RMON, with a console port in both RJ-45 and Micro-USB form. TP-Link also lists OAM and DDM functions that make it easier to monitor links and SFP modules.

VLANs, routing and security

Up to 4000 VLANs (tagged, private and voice VLANs plus VLAN mapping), together with Auto VLAN and Guest VLAN, split the network into segments. Static routing (48 IPv4 and 48 IPv6 routes), IPv4 and IPv6 ACLs, IP-MAC-Port Binding, ARP inspection and AAA, RADIUS and TACACS+ are supported. QoS with SP/WRR queues and IGMP snooping keep voice and video traffic running smoothly.

A silent fanless chassis

The switch has no fans, so it runs in complete silence even in an office where the rack sits close to people. Maximum power consumption is 32.72 W and heat dissipation is 111.65 BTU/h. The chassis measures 440 × 220 × 44 mm, and a rack mounting kit and AC power cable are included. The operating temperature range is 0–45 °C.

Who this network switch is for

Offices where users are fine with Gigabit but servers and NAS units need 10G; video editing and design studios that constantly move large files to and from storage; schools and companies building an Omada network with switches on several floors joined by a 10G backbone; and administrators who value a silent device without fans.

Specifications

General

BrandTP-LINK
Form factor1U
Model nameOmada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
Product colourBlack
SeriesOmada
IGMP proxyYes
Public MIBY
Rack railsYes
IPv4 routes48
IPv6 routes48
Jumbo frames9000
Static routeYes
Cloud-managedYes
IGMP snoopingYes
Rack mountingYes
Rate limitingYes
ARP inspectionYes
AuthenticationAuto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Number of fans0
Rack mount kitYes
Forwarding rate130.9
Number of VLANs4000
Link aggregationYes
System event logYes
MAC address table16000
Quick start guideYes
Authentication typeAAA, RADIUS, TACACS+
Management protocolsSNMPv1/v2c/v3, SNTP
Packet buffer memory12
Web-based managementYes
Huawei-proprietary MIBY
Spanning tree protocolYes
Broadcast storm controlYes
Number of static routes48
Access Control List (ACL)Yes
SFP+ module slots quantity4
Head-of-line (HOL) blockingYes
Queue scheduling algorithmsSP/Weighted Round Robin (WRR)/WRR+SP
Operating relative humidity (H-H)10 - 90
GARP VLAN Registration Protocol (GVRP)Yes
Multicast Listener Discovery (MLD) snoopingY
EAN6935364006471

Storage

Switching capacity176
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)No
Console portRJ-45/Micro-USB
Port mirroringYes
Power connectorAC-in jack
IP-MAC-Port bindingYes
Static port securityYes
Virtual LAN featuresPrivate VLAN/Tagged VLAN/VLAN mapping/Voice VLAN
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity48

Connectivity

Networking standardsIEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ad

Keyboard & controls

Switch typeManaged
Switch layerL2+

Battery & power

Power consumption (max)32.72 W
AC input voltage100 – 240 V
AC input frequency50/60
Power sourceAC
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 45 °C
Heat dissipation111.65
MAC address filteringYes
BPDU filtering/protectionYes
Configuring Location Settings (CLI)Yes

Features

Cables includedAC
LED indicatorsYes
10G supportYes
MIB supportRFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Package typeBox
VLAN supportYes
DHCP featuresDHCP client/DHCP relay/DHCP server
Loop protectionYes
SSH/SSL supportYes
Multicast supportYes
Password protectionYes
Flow control supportYes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
Jumbo frames supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width440 mm
Depth220 mm
Height44 mm

Questions & answers

Which modules do the SFP+ slots take?

The slots are designed for 10G SFP+ links and, according to TP-Link, are backward compatible with Gigabit equipment. Modules and cables are not included and are chosen to suit distance and cable type.

Do the ports provide PoE power?

No, the TL-SG3452X does not support PoE. The model in the same series with PoE+ on all 48 ports is the TL-SG3452P, although its SFP slots are Gigabit.

How does it differ from the TL-SG3452?

Both have 48 Gigabit RJ-45 ports, but the TL-SG3452X has four 10G SFP+ slots and 176 Gbit/s of switching capacity, while the TL-SG3452 has four Gigabit SFP slots and 104 Gbit/s.

Can it be installed in a server rack?

Yes, the chassis is 1U high and a rack mounting kit is included. It measures 440 × 220 × 44 mm.
