TP-LINK

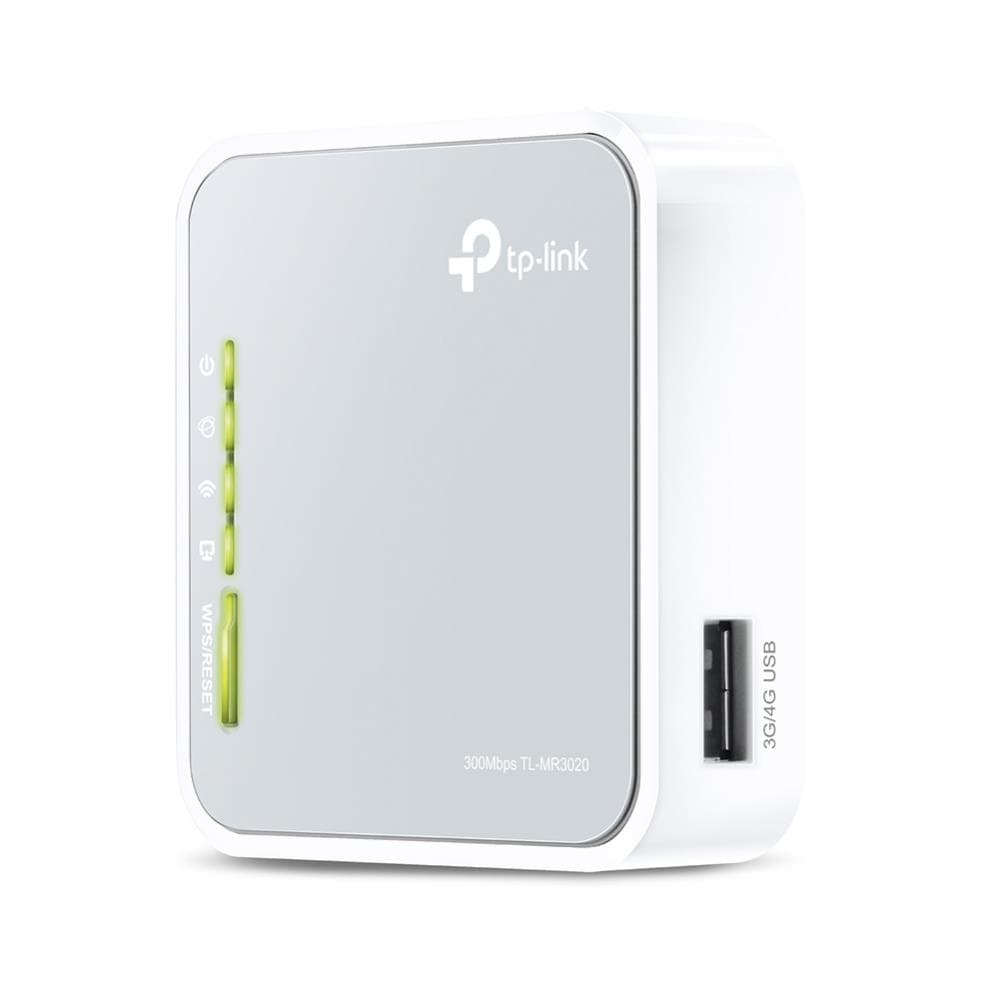

TP-Link TL-MR3020 portable 3G/4G router, Wi-Fi 4 150 Mbit/s, USB

TP-Link TL-MR3020 is a pocket-sized portable router that shares internet from a 3G/4G USB modem or a hotel cable over Wi-Fi. Wi-Fi 4 delivers up to 150 Mbit/s and the case measures only 74 × 67 × 22 mm.

  • Wi-Fi: Wi-Fi 4 (802.11n), up to 150 Mbit/s
  • Band: 2.4 GHz
  • Ports: 1 × RJ-45 10/100 Mbit/s (WAN/LAN), 1 × USB 2.0 for a modem
  • Modes: 3G/4G router, WISP client, travel router (AP), chosen with a side switch
  • Power: 5 V over USB or from the adapter, both included with cables

Description

Three modes with one switch

In 3G/4G mode you plug a mobile internet modem into the USB port and share the connection with phones, tablets and laptops. In travel router mode TL-MR3020 turns a wired hotel connection into your own Wi-Fi network, and in WISP mode it picks up internet from another Wi-Fi network. The manufacturer says a 3G/4G modem can also serve as a backup if the cable connection drops. The router has no SIM slot.

Who this router is for

Travellers who want their own secure Wi-Fi network in a hotel or at a summer cottage, and anyone who already owns a USB modem and wants to share its connection with several devices at once. The small case and USB power let it run from a laptop, with no wall socket needed.

Specifications

General

BrandTP-LINK
Product typePortable router
Model namePortable 3G/4G Wireless N Router
Product colourGrey/White
DSL WANNo
FirewallYes
DHCP clientYes
DHCP serverYes
Web-based managementYes
Universal Plug and Play (UPnP)Yes
Operating relative humidity (H-H)10 - 90
EAN6935364051709

Memory

Memory card slot(s)No

Storage

Storage temperature (T-T)-40 - 80
Storage relative humidity (H-H)5 - 90

Audio

Frequency range2.4 – 2.48 Hz

Ports

USB 2.0 ports quantity1
USB portYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100
Ethernet LAN interface typeFast Ethernet
DC-in jackYes
Ethernet WANYes
SIM card slotNo
Port forwardingYes
USB charging portYes
3G/4G USB modem compatibilityYes

Connectivity

Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi bandSingle-band (2.4 GHz)
WLAN data transfer rate (max)150 Mbit/s
Mobile network connectionYes
Antenna designInternal
Networking standardsIEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3u
Security algorithms128-bit WEP/64-bit WEP/WPA2-PSK/WPA-PSK
3GYes
4GYes
WLAN data transfer rates supported150

Software & security

Mac operating systems supportedYes
Linux operating systems supportedYes
Windows operating systems supportedWindows 2000/Windows 2000 Professional/Windows 7 Home Basic/Windows 7 Home Basic x64/Windows 7 Home Premium/Windows 7 Home Premium x64/Windows 7 Professional/Windows 7 Professional x64/Windows 7 Starter/Windows 7 Starter x64/Windows 7 U/Windows 7 Ultimate

Keyboard & controls

Reset buttonYes

Battery & power

AC adapter includedYes
Output voltage5 V
Power source typeAC, USB
Output current1

Performance & capacities

Operating temperature (T-T)10 – 60 °C
FilteringYes
MAC address filteringYes

Features

Cables includedLAN (RJ-45)/USB
LED indicatorsYes
DMZ supportYes
Cabling technology10/100Base-T(X)

Dimensions & weight

Width74 mm
Depth67 mm
Height22 mm

Questions & answers

Can I put a SIM card in it?

No. There is no SIM slot; for mobile internet you plug a 3G/4G USB modem into the USB port.

How is the router powered?

Over USB at 5 V, for example from a laptop, or with the included adapter.

Can it be used without a modem?

Yes. In travel router mode the internet comes in through the RJ-45 port, and in WISP mode through another Wi-Fi network.
