UBIQUITI

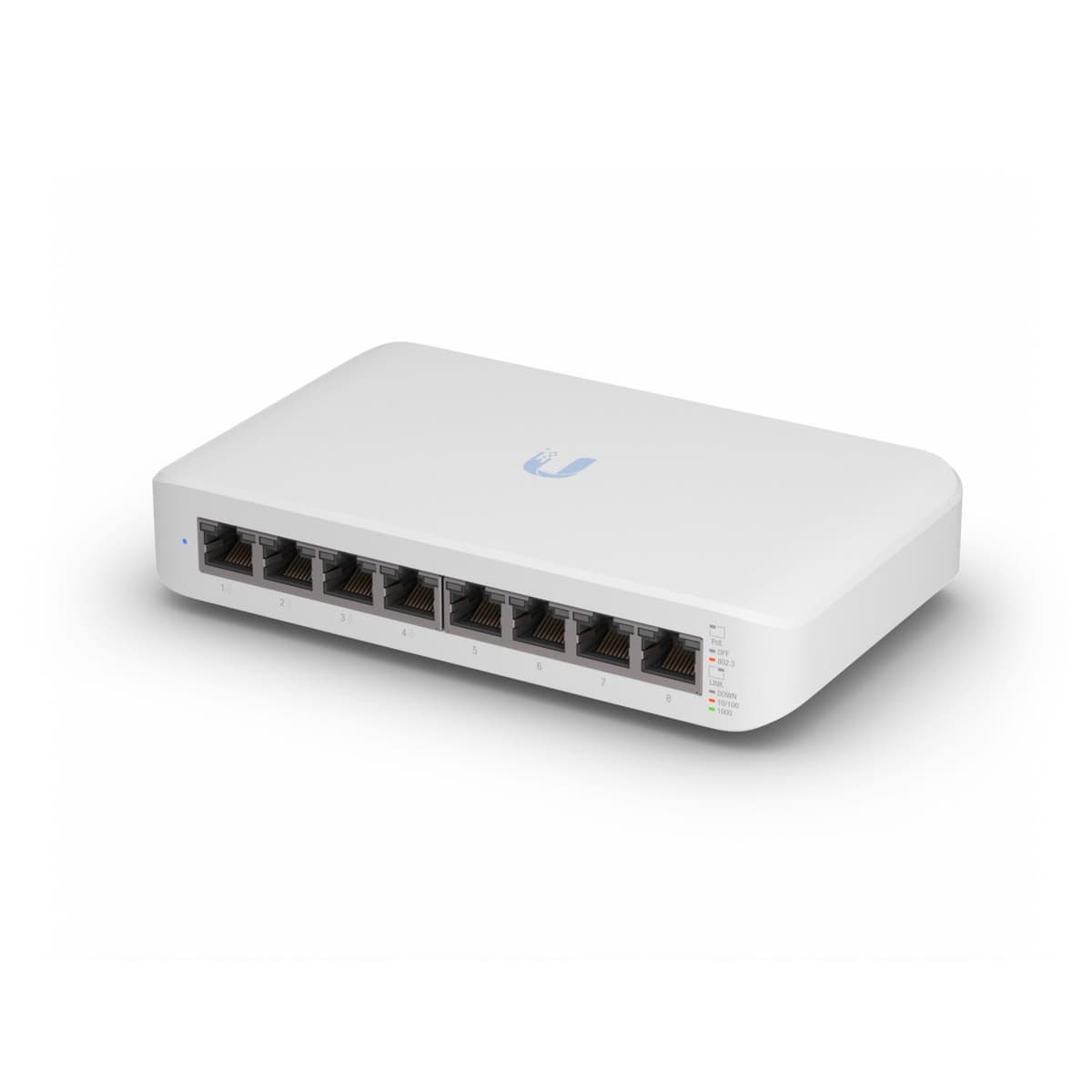

Ubiquiti USW-Lite-8-PoE managed switch gigabit ethernet

  • Switching capacity8
  • Power consumption (typical)60 W
  • Operating temperature (T-T)0 – 15 – 40 °C
  • Networking standardsIEEE 802.3at
  • Switch typeManaged
  • Width163.7 mm

The Ubiquiti USW-Lite-8-PoE is a compact managed network switch designed for small offices, remote sites, and edge deployments. With eight gigabit ethernet ports and integrated PoE+ power delivery, this desktop switch simplifies both data connectivity and device powering in one unit.

Description

Compact power for growing networks

  • 8 × gigabit ethernet ports (10/100/1000Base-T) for high-speed data transfer
  • 4 dedicated PoE+ ports deliver up to 90W combined power for cameras, access points, and other PoE devices
  • Managed switch intelligence with VLAN support, QoS, and traffic management
  • Desktop or pedestal mounting—no rack space required
  • Low power consumption ideal for always-on deployments

Ideal for businesses expanding their network infrastructure, installing wireless coverage, or deploying IP cameras without separate power infrastructure. Works seamlessly in UniFi-based networks and mixed vendor environments alike.

Specifications

General

BrandUBIQUITI
Model nameSwitch Lite 8 PoE
Product colourWhite
StackableNo
Rack mountingNo
Wall mountableYes
Operating relative humidity (H-H)10 - 90
EAN810010071156

Storage

Switching capacity8

Ports

Power over Ethernet (PoE)Yes
Power connectorDC-in jack
Power over Ethernet (PoE) power per port30
Power over Ethernet (PoE) type supportedPoE+
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8
Power over Ethernet plus (PoE+) ports quantity4

Connectivity

Networking standardsIEEE 802.3at

Keyboard & controls

Switch typeManaged
Switch layerL2

Battery & power

Power consumption (typical)60 W
DC input voltage54
Power supply includedYes
Number of power supply units1

Performance & capacities

Operating temperature (T-T)0 – 15 – 40 °C

Features

LED indicatorsYes
10G supportNo

Dimensions & weight

Width163.7 mm
Depth99.6 mm
Height31.7 mm
Weight450 g
