AXIS

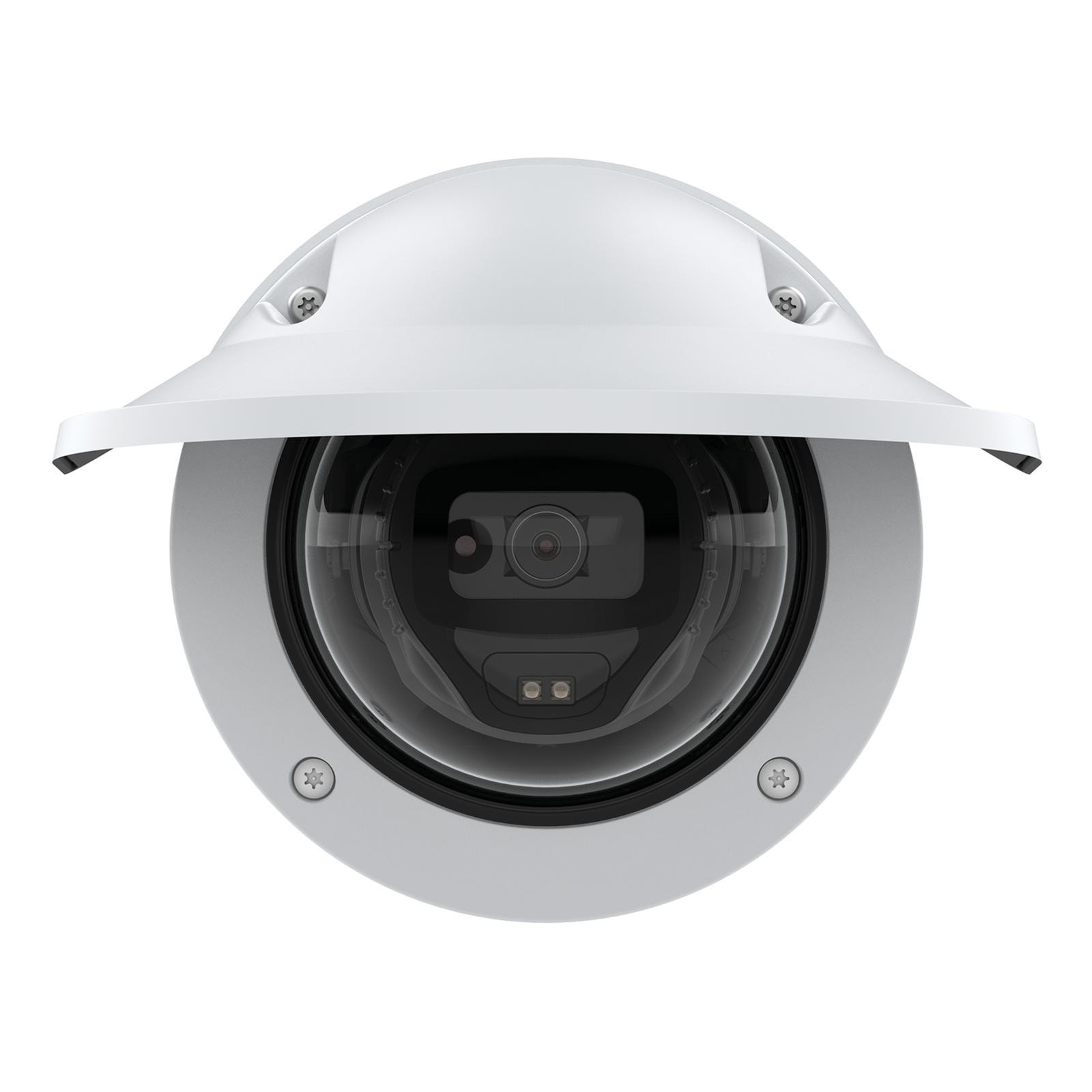

AXIS M3215-LVE IP camera 2 MP, 101°, IK10, IP66, PoE, White

The AXIS M3215-LVE (02371-001) is a fixed-lens dome IP camera that delivers a 2 MP image with a 101-degree view, even in difficult lighting. A deep learning processing unit built on the ARTPEC-8 chip detects people and vehicles inside the camera. A vandal-resistant IK10 housing, IP66 protection and PoE power make it suitable both indoors and on an outside wall.

  • Resolution: 2 MP, 1920 × 1080, up to 30 frames per second
  • Lens and field of view: 101° horizontal, 55° vertical, F2.0 aperture, 1/2.9″ sensor
  • Night vision: OptimizedIR, Lightfinder, Forensic WDR, minimum illumination 0.14 lx
  • Power and network: PoE (4.8 W consumption), RJ-45 (Fast Ethernet)
  • Protection: IK10, IP66, operating temperature –40 to +50 °C
  • Recording and analytics: microSD/SDHC/SDXC, H.264/H.265, AXIS Object Analytics
  • Audio and I/O: microphone input, I/O connectivity for external devices

Description

A clear picture in any light

The camera records 1920 × 1080 at up to 30 frames per second on a 1/2.9″ CMOS sensor. Axis Lightfinder keeps colour and detail in low light, Forensic WDR balances the image when sunlight and deep shadow share the frame, and built-in OptimizedIR lights the scene in darkness without a separate floodlight. Minimum illumination is 0.14 lx and the camera focuses from as close as 1 m.

A wide-view dome that reaches every corner

The horizontal field of view is 101° and the vertical 55°, with an F2.0 aperture. During installation the lens pans up to 190° and tilts from –10 to 80°, so the same camera works on a ceiling or a wall and the view can be aimed exactly where it is needed. The dome is 102 mm high and 149 mm in diameter and weighs 783 g; the white housing is plastic and polycarbonate.

Deep learning analytics on the ARTPEC-8 chip

A deep learning processing unit (DLPU) on the ARTPEC-8 platform analyses the image inside the camera. AXIS Object Analytics detects and classifies people, vehicles and vehicle types, and can be tailored to your own needs. The camera adds metadata to the video, which makes forensic searches through recordings quick and easy. The result is fewer false alarms and a faster response to real events.

Vandal-resistant and weatherproof

An IK10 impact rating means the dome withstands heavy blows, which matters in stairwells, car parks and anywhere else the camera is within reach. IP66 keeps out dust and heavy rain, and an operating range of –40 to +50 °C covers even the coldest Estonian winters. Axis also lists the camera as fog-proof.

Audio, I/O and cybersecurity

The camera has a microphone input and I/O connectivity, so you can add an external microphone or connect other devices to the system. It runs on PoE and draws just 4.8 W. Built-in cybersecurity features include HTTPS encryption and IEEE 802.1X authentication with EAP-TLS, and video is compressed in H.264 or H.265 and can be recorded to a microSD card when needed.

Who this IP camera is for

Housing associations and property managers who need a vandal-resistant camera for stairwells, car parks or lobbies; retail floors and offices where the picture has to handle both a sunny window and a dark corner; schools and public buildings; and businesses that want analytics built into the camera without a separate server.

Specifications

General

BrandAXIS
Form factorDome
Product colourWhite
Housing materialPlastic/Polycarbonate (PC)
TypeIP security camera
IK codeIK10
LED typeIR
Fog proofYes
Pan range0 - 190
Frame rate30
PTZ controlYes
Night visionYes
Mounting typeCeiling/wall
Video streamingYes
Progressive scanYes
Tilt angle range-10 - 80
Minimum illumination0.14
Maximum aperture number2
Wide Dynamic Range (WDR)Yes
Video compression formatsH.264/H.265
Operating relative humidity (H-H)10 - 100
EAN7331021076549

Display

Maximum resolution1920 x 1080

Memory

Internal memory1024 GB

Storage

Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Built-in HDDNo
Storage temperature (T-T)-40 - 65
Storage relative humidity (H-H)5 - 95

Camera

Flash memory8192 MB
Day/night modeYes
Zoom capabilityYes
Number of cameras1
Camera pan controlYes
Camera shutter speed1/37000 - 2
Closest focusing distance1
Lens viewing angle, vertical55
Lens viewing angle, horizontal101

Audio

Microphone inYes

Ports

Card reader integratedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet interface typeFast Ethernet
Power consumption (Power over Ethernet (PoE))4.8

Connectivity

Connectivity technologyWired
Networking standardsIEEE 802.1x
Security algorithmsEAP-TLS/HTTPS
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS,

Software & security

HTTPS encryptionYes

Battery & power

Power source typePoE

Performance & capacities

Operating temperature (T-T)0 – 40 – 50 °C
Angle of rotation190

Features

International Protection (IP) codeIP66
Sensor typeCMOS
Optical sensor size1/2.9
Placement supportedIndoor & outdoor

Dimensions & weight

Height102 mm
Diameter149 mm
Weight783 g

Questions & answers

Does the camera need a separate power adapter?

No. It is powered over PoE through the network cable and draws 4.8 W, so a PoE switch or PoE injector is enough.

Can the camera withstand impacts and vandalism?

Yes. The dome carries an IK10 impact rating, the top class on the IK scale, and the housing is rated IP66.

Can the camera be installed outdoors?

Yes. It is designed for indoor and outdoor use, rated IP66 with an operating range of –40 to +50 °C.

How far can the camera see at night?

The camera has built-in OptimizedIR, but the manufacturer does not specify the IR range in metres.

Does the camera record audio?

The camera has a microphone input: connect an external microphone and the video can be recorded with sound.
