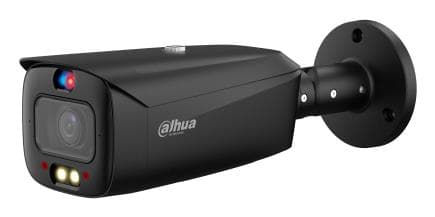

Dahua HFW3549T1-ZASPV27135S5-B IP camera 5 MP, 2.7–13.5 mm, siren, PoE

The Dahua HFW3549T1-ZASPV27135S5-B (IPC-HFW3549T1-ZAS-PV) is a 5 MP WizSense Series IP camera with active deterrence: when an event occurs it switches on a siren and red and blue flashing lights. A 2.7–13.5 mm varifocal lens and Smart Dual Light make it a camera that does not just record but also warns intruders off.

  • Image: 5 MP, 1/2.7″ CMOS sensor, minimum illumination 0.0003 lux
  • Lens: 2.7–13.5 mm, horizontal field of view 113°–36°
  • Night vision: Smart Dual Light – IR plus warm light, colour image during events
  • Power: PoE or 12 V DC
  • Protection: IP67, metal and plastic housing, operating range −30 to +60 °C
  • Recording and analytics: microSD up to 256 GB, SMD 4.0, tripwire and intrusion with human and vehicle classification
  • Audio and deterrence: microphones, speaker, two-way talk, siren, red and blue lights

Description

A siren and strobe that deter before damage is done

When a perimeter rule is triggered, the camera raises a light and sound alarm: red and blue lights flash and a warning plays from the speaker. You can pick one of several built-in messages or import your own recording, for example a warning in Estonian. The intruder knows straight away that they have been seen and often leaves before anything happens. With two-way audio a guard can also speak to them directly.

Dual light for colour images at night

Normally the IR illuminator is on at night and the image is black and white. When a person or vehicle enters the scene, the warm light turns on and the camera records the event in full colour, which later helps identify clothing or car colour. Once the target leaves, the warm light goes off and IR takes over again, which reduces light pollution. The 1/2.7″ sensor and 0.0003 lux minimum illumination give a usable image even in very low light.

An adjustable 2.7–13.5 mm field of view

The lens can be set from a wide 113° view that covers a whole yard to a narrow 36° view that brings a gate or driveway closer. According to Dahua, the camera detects a target at up to 65.2 m at the wide end and up to 186.6 m at the tele end. WDR, HLC and BLC balance strong backlight, and 3D noise reduction keeps the image clean in low light.

Fewer false alarms and easy arming

SMD 4.0 classifies the objects that trigger motion detection and filters out non-targets such as small and large animals. Tripwire and intrusion rules distinguish people from vehicles. With a Dahua AI NVR, Quick Pick lets you pull human and vehicle targets out of the event list in seconds. One-tap disarming in the mobile app or through an alarm input switches off the siren and notifications when you get home yourself.

A protected housing and secure connection

Rated IP67, the camera is dust-tight, survives temporary immersion and tolerates ±30% input voltage swings. Data transmission is encrypted, and the device uses authentication and access control. The camera mounts on a wall or ceiling, weighs 1.05 kg and measures 288.4 × 94.4 × 84.7 mm. It is powered over PoE or by a 12 V adapter and records to microSD cards of up to 256 GB.

Who this IP camera is for

Owners of houses and summer cottages who want to warn intruders off rather than just watch the footage afterwards; businesses that need active deterrence in a storage yard or car park at night; construction sites where tools and machinery stay outside overnight; and installers building a system around a Dahua AI NVR who need a camera with an adjustable field of view.

Specifications

General

BrandDAHUA
Form factorBullet
Product colourBlack
Housing materialMetal/Plastic
TypeIP security camera
MirrorYes
Pan range0 - 360
Web browserYes
Night visionYes
Mounting typeCeiling/wall
White balanceAuto/Lamp/Manual/Outdoor
Progressive scanYes
Tilt angle range0 - 90
Total megapixels5
Focal length range2.7 - 13.5
Alarm input channels2
Minimum illumination0.0003
Web-based managementYes
Alarm output channels2
Night vision distance30
Detect distance (tele)186.6
Detect distance (wide)65.2
Observe distance (tele)37.3
Observe distance (wide)26.1
Wide Dynamic Range (WDR)Yes
Video compression formatsH.264/H.264B/H.264H/H.265
EAN6939554994265

Display

Maximum resolution2592 x 1944

Memory

Internal memory512 GB

Storage

Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Built-in HDDNo
ROM capacity128
Storage temperature (T-T)-30 - 60

Graphics

Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2592 x 1944/2688 x 1520/640 x 480 (VGA)

Camera

Day/night modeYes
Privacy maskingYes
Number of lenses1
Camera pan controlNo
Camera tilt controlNo
Camera shutter speed1/3 - 1/100000
Lens viewing angle, diagonal137 - 40
Lens viewing angle, vertical57 - 20
Lens viewing angle, horizontal113 - 36
Number of Privacy masking areas4

Audio

Audio system2-way
Audio detectionYes
Built-in microphoneYes
Built-in speaker(s)Yes
Audio input channels2.0
Audio output channels2.0
Audio formats supportedG.711/G.726

Ports

Card reader integratedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Power consumption (Power over Ethernet (PoE))8.7

Connectivity

Wi-FiNo
BluetoothNo
Connectivity technologyWired

Software & security

Mobile operating systems supportedAndroid/iOS

Battery & power

Power consumption (typical)3.3 W
Power consumption (max)7.4 W
Power source typeDC, PoE
DC output voltage12

Performance & capacities

Operating temperature (T-T)0 – 30 – 60 °C
Noise reductionYes
Adjustment shutter speedAuto/Manual
Noise reduction technology3D noise reduction

Features

International Protection (IP) codeIP67
Sensor typeCMOS
Number of sensors1
Optical sensor size1/2.7
Placement supportedIndoor & outdoor

Dimensions & weight

Width94.4 mm
Depth288.4 mm
Height84.7 mm
Weight1.05 kg
Product Net Weight1.05 kg

Questions & answers

Can I change the siren message?

Yes. The camera has several built-in voice messages, and you can import your own recording.

Can I disarm it from my phone?

Yes, one-tap disarming works in the mobile app (Android and iOS) and also through an alarm input.

Is the night image in colour?

During events, yes: when a person or vehicle appears, the warm light turns on and recording is in colour. The rest of the time IR is used and the image is black and white.

Does the camera work with PoE?

Yes, it can be powered over PoE or with a 12 V DC adapter.
