DAHUA

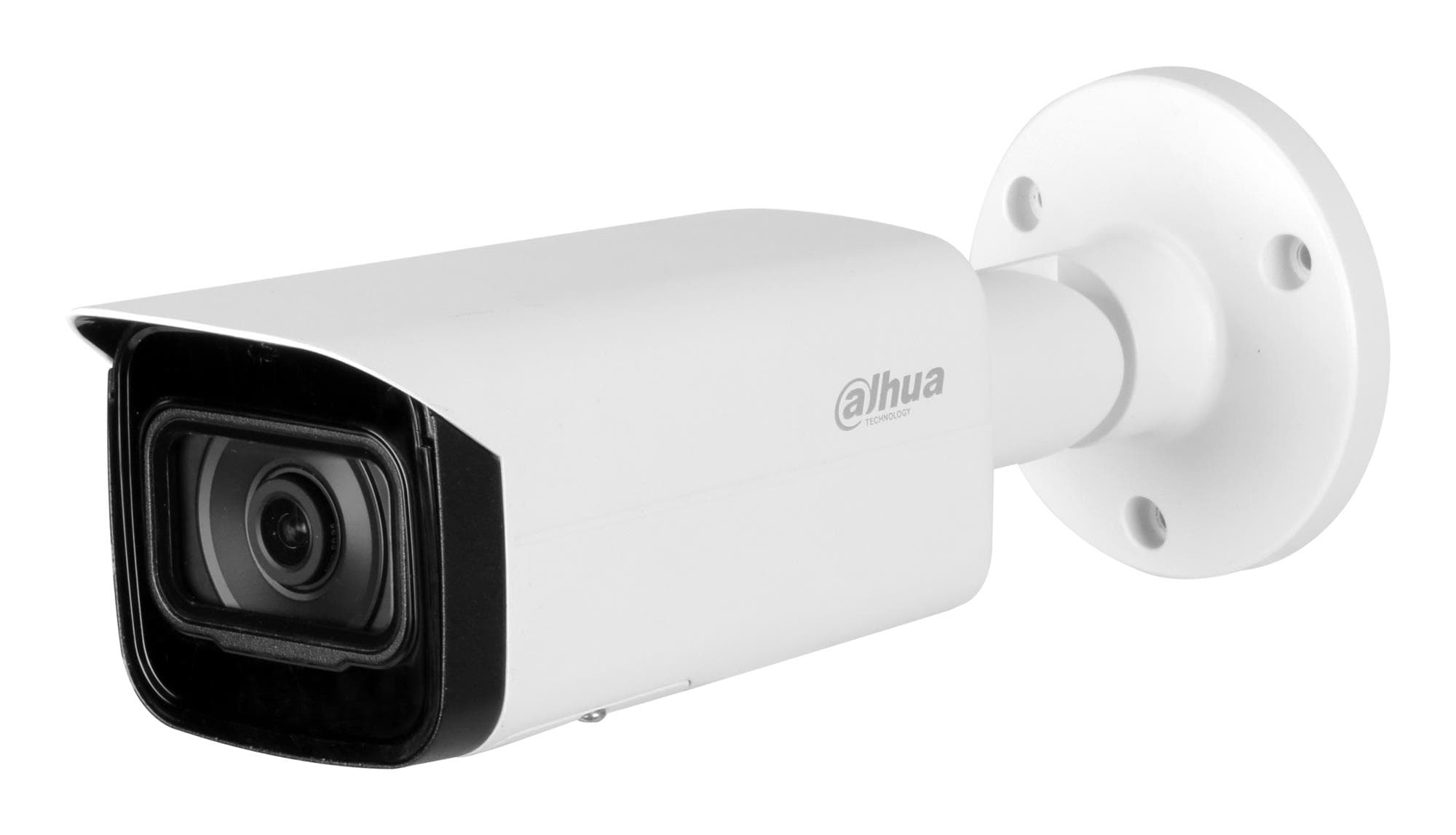

Dahua IPC-HFW5842T-ASE-0360B-S3 IP camera 8 MP, 3.6 mm, IR 80 m, IK10

The Dahua WizMind IPC-HFW5842T-ASE-0360B-S3 is a white 8-megapixel bullet IP camera for outdoor use. A 3.6 mm lens, a large 1/1.8″ sensor and IR up to 80 metres deliver 4K footage day and night, the IP67 and IK10 housing withstands weather and impacts, and deep-learning analytics cut down false alarms.

  • Resolution: 8 MP (3840 × 2160), 25/30 fps, 1/1.8″ CMOS
  • Lens: fixed 3.6 mm, F1.6, horizontal field of view 87°
  • Night vision: IR up to 80 m, 4 LEDs, 0.0004 lx
  • Power: PoE (IEEE 802.3af), ePoE or 12 V, up to 8.3 W
  • Protection: IP67, IK10, metal housing, −40 to 60 °C
  • Recording and analytics: microSD up to 1 TB, H.265, face detection, people counting, SMD 3.0
  • Audio and alarm: built-in microphone, 1 audio in and out, 1 alarm in and out

Description

4K footage from a large sensor

The 3840 × 2160 resolution is 4K, recorded at 25 or 30 frames per second. The 1/1.8″ CMOS sensor is large for a security camera, so the picture stays clean at dusk, with a minimum illumination of 0.0004 lux. 120 dB WDR, HLC and BLC balance out backlight, and 3D noise reduction removes the grain from night footage.

A 3.6 mm lens for medium distances

The fixed 3.6 mm lens covers 87° horizontally, 49° vertically and 99° diagonally. That is narrower than a wide-angle lens, but it brings more distant objects closer. According to the manufacturer, detection reaches 98 m, observation 39.2 m, recognition 19.6 m and identification 9.8 m. It works well for a driveway, a row of parking spaces or the side of a building.

Night vision up to 80 metres

Four built-in IR LEDs light up a dark area up to 80 metres away, so even a large yard or car park stays visible at night. Smart IR adjusts the light output so that nearby objects do not turn into a white blur. The camera switches automatically between day and night modes and delivers a clear black-and-white picture after dark.

WizMind analytics that pick out what matters

Deep-learning algorithms tell people from vehicles and support face detection, smart object detection, people counting, smart sound detection and video metadata. IVS rules and SMD 3.0 reduce false alarms, so wind and shadows do not set anything off. Eight privacy zones can be masked in the frame, and IP address filtering plus IEEE 802.1x protect the network.

A tough housing and simple power

The metal housing is rated IP67 and IK10: dust-tight, waterproof and impact-resistant. It operates from −40 to 60 °C. Power comes over PoE (IEEE 802.3af), via ePoE or from a 12 V adapter, with a maximum draw of 8.3 W. Footage can go to a microSD card of up to 1 TB, network storage or a recorder. It measures 244.1 × 79 × 75.9 mm and weighs 820 g.

Who this IP camera is for

Business premises, car parks, storage yards and private driveways that need 4K detail at medium distance and long IR range. Integrators who want a vandal-resistant camera with AI analytics for a Dahua system. The white housing suits light-coloured facades, and IK10 protection pays off wherever the camera is within arm’s reach.

Specifications

General

BrandDAHUA
Form factorBullet
Product colourWhite
Housing materialMetal
TypeIP security camera
ManualYes
MirrorYes
IK codeIK10
LED typeIR
Pan range0 - 360
Frame rate30
Night visionYes
Dynamic range120
Mounting typePole clamp
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Detect distance98
Video streamingYes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Observe distance39.2
Progressive scanYes
Streaming methodMulticast
Tilt angle range0 - 90
Total megapixels8
Identify distance9.8
Alarm input/outputYes
Fixed focal length3.6
Recognize distance19.6
Alarm input channels1
Minimum illumination0.0004
Alarm output channels1
Night vision distance80
Video motion detectionYes
Maximum aperture number1.6
Wide Dynamic Range (WDR)Yes
Video compression formatsH.264/H.264B/H.264H/H.265/M-JPEG
Number of illumination LEDs4
Region of Interest (ROI) encodingYes
Human and vehicle targets classificationYes
EAN6923172588616

Display

Maximum resolution3840 x 2160

Memory

RAM capacity2048

Storage

Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1000 GB
Built-in HDDNo
ROM capacity4096
Storage temperature (T-T)-40 - 60
Network access storage (NAS)Yes
Storage relative humidity (H-H)10 - 95

Camera

Fixed focusYes
Day/night modeYes
Video recordingYes
Number of cameras1
Camera pan controlYes
Camera tilt controlYes
Camera shutter speed1/3 - 1/100000
Closest focusing distance2.3
Lens viewing angle, diagonal99
Lens viewing angle, vertical49
Lens viewing angle, horizontal87
Number of Privacy masking areas8

Audio

Built-in microphoneYes
Audio formats supportedG.711 µ-law/G.711 A-law/G.723/G.726/PCM

Ports

Card reader integratedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Ethernet interface typeFast Ethernet

Connectivity

Wi-FiNo
BluetoothNo
Connectivity technologyWired
Networking standardsIEEE 802.1x/IEEE 802.3af
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

Software & security

Mobile operating systems supportedAndroid/iOS

Keyboard & controls

Gain control typeAuto

Battery & power

Power consumption (typical)4.1 W
Power consumption (max)8.3 W
Power source typeDC, PoE
DC output voltage12

Performance & capacities

Operating temperature (T-T)0 – 40 – 60 °C
Noise reductionYes
Angle of rotation360
IP address filteringYes
Noise reduction technology3D noise reduction

Features

International Protection (IP) codeIP67
Sensor typeCMOS
Number of sensors1
Optical sensor size1/1.8
Placement supportedOutdoor
Highlight Compensation (HLC)Yes
Back Light Compensation (BLC)Yes
Quality of Service (QoS) supportYes

Dimensions & weight

Width79 mm
Height75.9 mm
Weight820 g
Length244.1

Questions & answers

How far can the camera see at night?

The built-in IR illumination reaches up to 80 metres.

Does the camera run on PoE?

Yes, it supports PoE (IEEE 802.3af) and ePoE, with a maximum draw of 8.3 W. A 12 V DC adapter is the alternative.

How does the 3.6 mm lens differ from a wider one?

The 3.6 mm lens has an 87° horizontal field of view: the frame is narrower than with a wide-angle lens, but people and vehicles further away appear larger.

How large a memory card can it use?

The camera supports microSD cards of up to 1 TB.

Is the camera vandal-resistant?

Yes, the metal housing is rated IK10 and also has IP67 weather protection.
