GEMBIRD

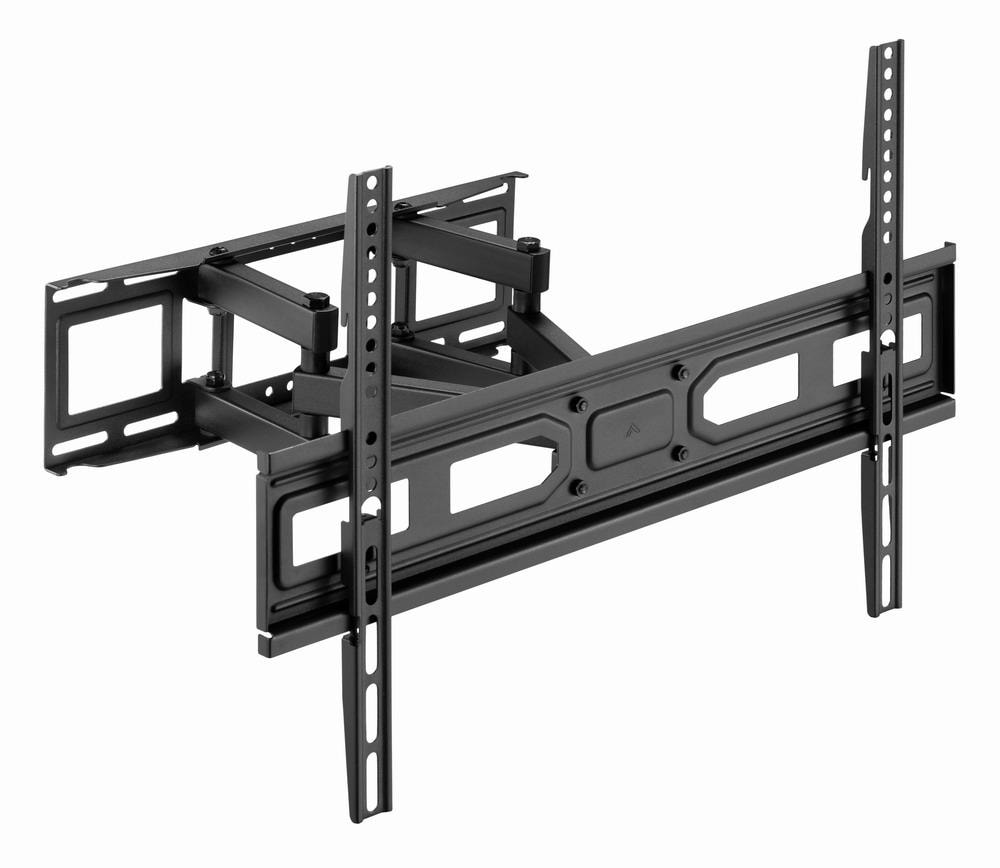

Gembird WM-80ST-03 TV wall mount 37–80", full-motion, VESA up to 600 × 400, 40 kg

The Gembird WM-80ST-03 is a double-arm full-motion TV wall mount for 37–80″ televisions. The TV can be pulled up to 355 mm away from the wall, swivelled up to 60° to either side and tilted, so the picture can face the sofa or the dining table.

  • Type: full-motion wall mount, 2 articulating arms, single screen
  • VESA: 100 × 100 to 600 × 400 mm
  • Maximum load: 40 kg
  • Screen size: 37–80″ (94–203 cm)
  • Movement: swivel −60…+60°, tilt +3…−15°, level adjustment ±3°
  • Wall distance and kit: 67–355 mm, cable management, mounting hardware included, steel and plastic, black

Description

Two arms that bring the TV away from the wall

Folded in, the TV sits 67 mm from the wall; fully extended, it sits 355 mm out. That clearance is what lets the screen turn: the double-arm mount swivels the TV up to 60° to either side and tilts it 3° up or 15° down. The ±3° level adjustment helps straighten the screen even if a drill hole ended up slightly off. Cables can be routed along the mount.

Who this TV mount is for

The mount suits a 37–80″ TV weighing up to 40 kg with VESA holes between 100 × 100 and 600 × 400 mm. It works well in a living room or kitchen where the screen is watched from different spots, and in a corner where the TV has to reach out from the wall.

Specifications

General

BrandGEMBIRD
Product colourBlack
Housing materialPlastic/Steel
ManualYes
SwivellingYes
Turn angle120
Pivot angle3 - -3
Mounting kitYes
Mounting typeWall
Tilt adjustmentYes
Cable managementYes
Tilt angle range3 - -15
Maximum VESA mount600 x 400
Minimum VESA mount100 x 100
Swivel angle range60 - -60
Sustainability complianceYes
Distance to the wall (max)355
Distance to the wall (min)67
EAN8716309127783

Display

Panel mounting interface100 x 100/100 x 150/100 x 200/150 x 100/150 x 150/200 x 100/200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 200/600 x 300/600 x 400
Maximum screen size80
Minimum screen size37
Number of displays supported1

Storage

Maximum weight capacity40

Audio

Number of arms2

Features

Package typeBox

Dimensions & weight

Width430 mm
Height402 mm
Weight3.6 kg
Depth (max)420

Questions & answers

Will my TV fit this mount?

Measure the distance between the four threaded holes on the back of the TV in millimetres: that is the VESA size. The mount supports 100 × 100, 100 × 150, 100 × 200, 150 × 100, 150 × 150, 200 × 100, 200 × 200, 300 × 200, 300 × 300, 400 × 200, 400 × 300, 400 × 400, 600 × 200, 600 × 300 and 600 × 400 mm. The TV must weigh 40 kg or less.

Can it be mounted on plasterboard?

The manufacturer does not specify. An extended full-motion mount puts more load on the wall than a fixed one, so installation depends on the wall material and the fixings.

Are the screws included?

Yes, according to the manufacturer all the necessary installation materials are included.
