MikroTik

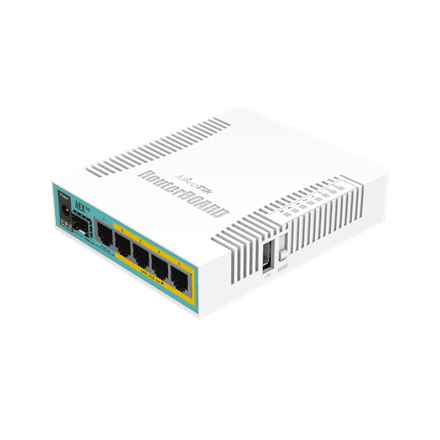

MikroTik hEX PoE RB960PGS wired router 5 × 1G, SFP, PoE out, USB

The MikroTik hEX PoE RB960PGS is a wired router for places where Wi-Fi is not needed: five Gigabit Ethernet ports, an SFP slot for fibre and PoE output on ports 2–5. One box can power cameras or access points without a separate power adapter for each of them.

  • Wi-Fi: none, wired connections only
  • Ports: 5 × Gigabit Ethernet (10/100/1000 Mbit/s, shielded), 1 × SFP, 1 × USB 2.0
  • PoE: passive PoE input 12–57 V; output on ports 2–5, up to 1 A per port and 2 A in total
  • CPU and memory: QCA9557 800 MHz, 128 MB RAM, 16 MB flash
  • Management: RouterOS, licence level L4
  • Power: 24 V 2.5 A adapter included, 54 W maximum consumption

Description

PoE output that cuts down on cables

Ports 2–5 pass on the same voltage that powers the router itself, with up to 1 A per port and up to 2 A across all of them. The output is passive or 802.3af/at; standard af/at devices (mode B) can be powered when the input voltage is 48–57 V. The router takes power from the included adapter or through passive PoE, and it is rated for operation from −40 °C to 60 °C.

Who this router is for

A small office, warehouse or holiday home where the internet arrives by copper or fibre and a few PoE cameras or access points should be powered from one place. The 800 MHz CPU handles the advanced configurations RouterOS supports, so it also suits a network administrator who wants flexible setup in a compact case.

Specifications

General

BrandMikroTik
Data transfer rate (max)1 Gbit/s
EAN4752224003294

Processor

Processor modelQCA9557
Processor cores1
Processor frequency800 MHz

Memory

Internal memory128 MB
Memory card includedYes
Memory typeFlash

Storage

Storage capacity16 MB

Ports

Ethernet LAN (RJ-45) ports5
Ethernet LAN data rates10/100/1000 Mbit/s
USB ports quantity1xUSB

Connectivity

Wi-FiNo
Mesh SupportNo
Mobile BroadbandNo mobile broadband
MU-MiMONo
PoE inPassive PoE
Wi-Fi bandNo Wi-Fi

Battery & power

Voltage(PoE in input Voltage) 12-57 V
AC adapter includedYes (24V 2.5A power adapter)
Power consumption (max)54 W

Performance & capacities

Operating temperature (T-T)-40°C to 60°C °C

Features

CertificationCE, EAC, ROHS
Other featureshEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded. It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

Dimensions & weight

Net weight0.50 kg

Questions & answers

Does the router work with mobile internet or a SIM card?

No. This model has no mobile modem and no SIM slot. The internet connection comes in over an Ethernet cable or over fibre through an SFP module.

How many PoE devices can it power?

Up to four, on ports 2–5. The limits are 1 A per port and 2 A in total, and the output voltage equals the input voltage, so the connected devices must accept that voltage.

What is in the box?

The manufacturer lists a 24 V 2.5 A power adapter. An SFP module and network cables are not mentioned in the data.
