TP-LINK

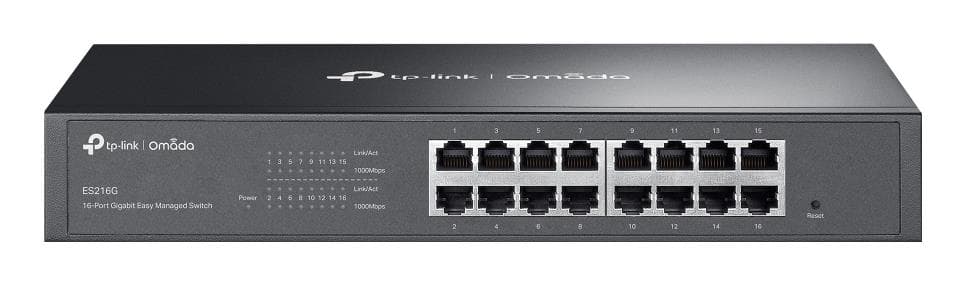

TP-Link Omada ES216G network switch 16 × 1G, managed, cloud management

The TP-Link Omada ES216G is a 16-port gigabit managed network switch that you set up through its web interface, the free Omada Cloud Essentials cloud management or the Omada app. Out of the box it works like a plain switch, and VLANs and QoS come in when you need them.

  • Ports: 16 × RJ-45 10/100/1000 Mbps
  • Management: managed L2, web interface, Omada cloud and app, Zero Touch Provisioning
  • Features: VLAN (up to 32), port isolation, cable test, QoS, IGMP snooping, loop prevention
  • PoE: no
  • Housing: metal, fanless, desktop or rack (kit included), 294 × 140 × 44 mm
  • Power: 100–240 V, power cable included, 6 kV surge protection, up to 8.4 W draw

Description

Cloud management without a separate controller

Omada Cloud Essentials is the free version of the Omada cloud controller, letting you monitor and manage Omada access points, switches and gateways from one place. Setup runs in a browser or the phone app, and Zero Touch Provisioning adds a new switch to the network without on-site configuration. VLANs, port isolation and the cable test make a surveillance network more dependable.

Who this network switch is for

Small businesses that need to connect work PCs, printers and a server into one network and manage it remotely; surveillance installers already working with Omada devices; and IT partners who look after several clients’ networks from one cloud interface.

Specifications

General

BrandTP-LINK
Model nameES216G
Product colourBlack
FanlessYes
Fast leaveYes
User guideYes
Jumbo frames15000
Cloud-managedYes
IGMP snoopingYes
Rack mountingYes
Rack mount kitYes
Forwarding rate23.8
Number of VLANs32
Auto-negotiationYes
Link aggregationYes
MAC address table8000
Store-and-forwardYes
Firmware upgradeableYes
Packet buffer memory4
Web-based managementYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Unified static configurationYes
Zero Touch Provisioning (ZTP)Yes
Mean time between failures (MTBF)2131140
Operating relative humidity (H-H)10 - 90
EAN1210002600682

Storage

Switching capacity32
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Camera

Flash memory64 MB

Ports

Power over Ethernet (PoE)No
Port mirroringYes
Power connectorAC-in jack
Virtual LAN featuresMTU VLAN/Port-based VLAN/Tagged VLAN
Gigabit Ethernet (copper) ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity16

Connectivity

Networking standardsIEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x

Keyboard & controls

Switch typeManaged
Switch layerL2

Battery & power

Power consumption (max)8.4 W
AC input voltage100 – 240 V
AC input frequency50/60
Power sourceAC
Power supply includedYes
Surge protection voltage6

Performance & capacities

Operating temperature (T-T)0 – 5 – 50 °C
Heat dissipation28.52

Features

Cables includedAC
LED indicatorsYes
10G supportNo
Package typeBox
VLAN supportYes
DHCP featuresDHCP client
Auto MDI/MDI-XYes
Loop protectionYes
Surge protectionYes
Flow control supportYes
Jumbo frames supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width294 mm
Depth140 mm
Height44 mm

Questions & answers

Does it support PoE?

No, the ES216G has no PoE power. Cameras and access points will need their own adapter or a PoE switch.

Is the cloud management paid?

According to the manufacturer, Omada Cloud Essentials is free. The switch can also be managed directly through its web interface, and in simple setups it works with no configuration at all.

Can it be mounted in a rack?

Yes, the rack mounting kit is in the box. The switch can also stay on a desk, and it measures 294 × 140 × 44 mm.
