TP-LINK

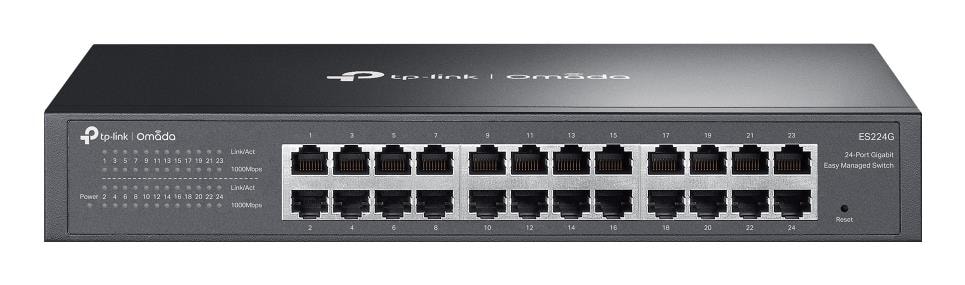

TP-Link ES224G 24-Port Gigabit Managed Network Switch

Switching capacity48
AC input voltage100 – 240 V
Operating temperature (T-T)0 – 5 – 50 °C
Switch typeManaged
Width294 mm
Virtual LAN featuresMTU VLAN/Port-based VLAN

The TP-Link ES224G is a 24-port Layer 2 managed network switch delivering Gigabit Ethernet speeds across all ports — a solid, no-nonsense choice for businesses and surveillance setups that need reliable, centrally managed connectivity.

Description

Rack-Ready Gigabit Performance with Cloud Management

24 × Gigabit Ethernet ports (10/100/1000 Mbps RJ45) for high-throughput wired connections across your entire network
Layer 2 managed switch with VLAN, QoS, and IGMP Snooping support for precise traffic control and network segmentation
Omada Cloud Essentials — free cloud-based centralised management via browser or the Omada app, covering switches, access points, and gateways
Rack-mountable design with a durable metal casing, fitting neatly into standard server racks
Fanless construction ensures completely silent operation — suitable for office environments and noise-sensitive installations

The ES224G suits small and medium-sized businesses, IT administrators managing multi-device networks, and installers building dedicated IP surveillance infrastructure who need dependable Layer 2 management without ongoing software costs.

Specifications

General

Brand	TP-LINK
Product colour	Black
Series	ES224G
Fanless	Yes
Fast leave	Yes
User guide	Yes
Jumbo frames	15000
Cloud-managed	Yes
IGMP snooping	Yes
Rack mounting	Yes
Rack mount kit	No
Forwarding rate	35.7
Number of VLANs	32
Auto-negotiation	Yes
Link aggregation	Yes
MAC address table	8000
Store-and-forward	Yes
Firmware upgradeable	Yes
Packet buffer memory	4
Web-based management	Yes
Broadcast storm control	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Unified static configuration	Yes
Operating relative humidity (H-H)	10 - 90
EAN	1210002600705

Storage

Switching capacity	48
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Port mirroring	Yes
Virtual LAN features	MTU VLAN/Port-based VLAN
Gigabit Ethernet (copper) ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24

Keyboard & controls

Switch type	Managed
Switch layer	L2

Battery & power

AC input voltage	100 – 240 V
AC input frequency	50/60
Power source	AC
Power supply included	Yes
Surge protection voltage	6

Performance & capacities

Operating temperature (T-T)	0 – 5 – 50 °C

Features

Cables included	AC
VLAN support	Yes
DHCP features	DHCP client
Auto MDI/MDI-X	Yes
Surge protection	Yes
Multicast support	Yes
Flow control support	Yes
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
