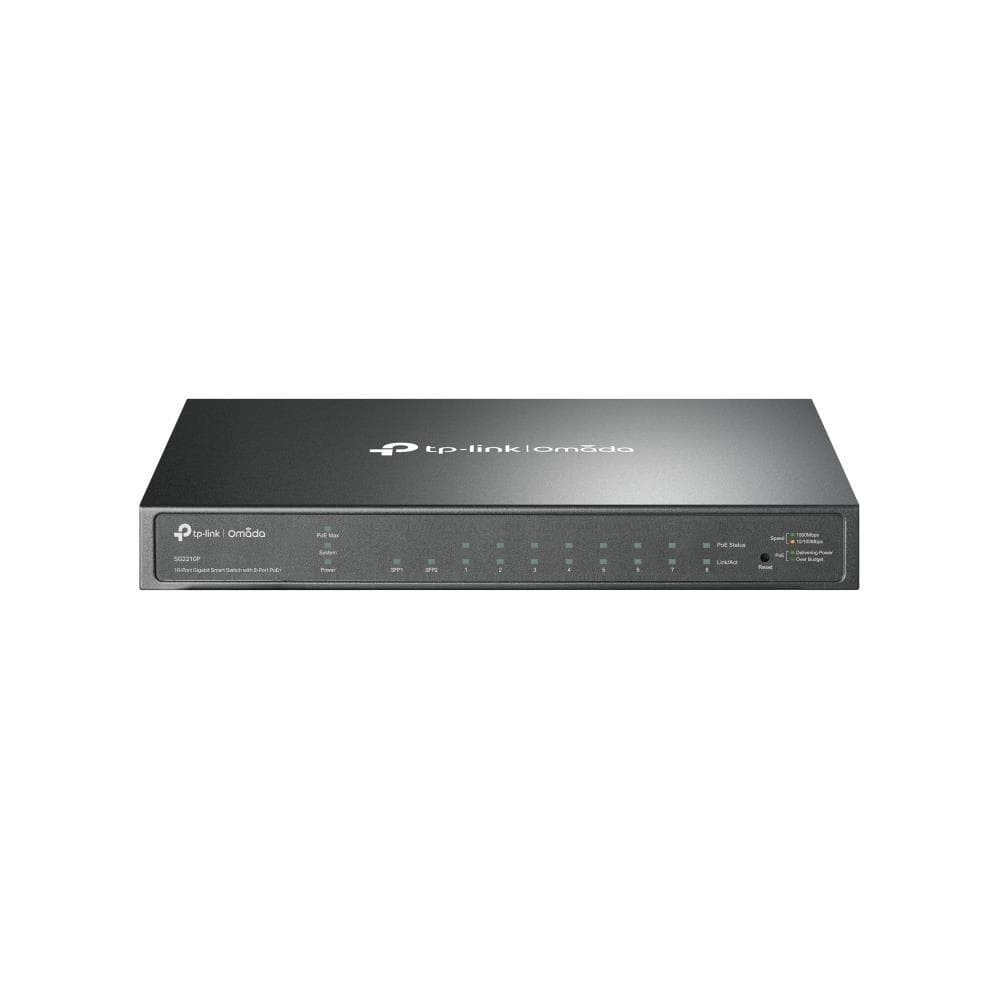

TP-LINK Omada SG2008 managed gigabit switch with PoE

Switching capacity20
Power consumption (max)77.8 W
Operating temperature (T-T)0 – 40 °C
Switch typeManaged
Width209 mm
Power connectorDC-in jack

The TP-LINK Omada SG2008 is a managed layer 2 gigabit switch built for small office and enterprise networks. With 8 gigabit ports, dual SFP uplinks, and full Power over Ethernet support, it delivers reliable connectivity and device power in a compact desktop form factor.

Description

Managed switching with PoE for growing networks

8 × 10/100/1000 Mbps Ethernet ports, all PoE-capable
2 × SFP slots for fibre or long-distance copper uplinks
Layer 2 managed features for VLAN, quality of service and network segmentation
Desktop or wall-mount installation options

Ideal for offices, retail locations and distributed networks that need to power wireless access points, cameras or VoIP phones while maintaining professional-grade switch intelligence and control.

Specifications

General

Brand	TP-LINK
Model name	Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
Product colour	Black
Manual	Yes
Series	Omada
Jumbo frames	9000
Cloud-managed	Yes
IGMP snooping	Yes
Rate limiting	Yes
ARP inspection	Yes
Authentication	MAC-based authentication, Port-based authentication
Forwarding rate	14.88
Auto-negotiation	Yes
Link aggregation	Yes
System event log	Yes
MAC address table	8000
Firmware upgradeable	Yes
Packet buffer memory	4.1
Web-based management	Yes
Spanning tree protocol	Yes
Broadcast storm control	Yes
Access Control List (ACL)	Yes
SFP module slots quantity	2
Operating relative humidity (H-H)	10 - 90
Multicast Listener Discovery (MLD) snooping	Y
EAN	6935364030698

Storage

Switching capacity	20
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Power over Ethernet (PoE)	Yes
Port mirroring	Yes
Power connector	DC-in jack
IP-MAC-Port binding	Yes
Static port security	Yes
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8

Connectivity

Networking standards	IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Keyboard & controls

Switch type	Managed
Switch layer	L2/L2+

Battery & power

Power consumption (max)	77.8 W
AC input voltage	100 – 240 V
AC input frequency	50/60
Power source	DC/PoE
Power supply included	Yes

Performance & capacities

Operating temperature (T-T)	0 – 40 °C
BPDU filtering/protection	Yes
Configuring Location Settings (CLI)	Yes

Features

Cables included	AC
LED indicators	Yes
10G support	No
VLAN support	Yes
Auto MDI/MDI-X	Yes
SSH/SSL support	Yes
Multicast support	Yes
Flow control support	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
