TP-LINK

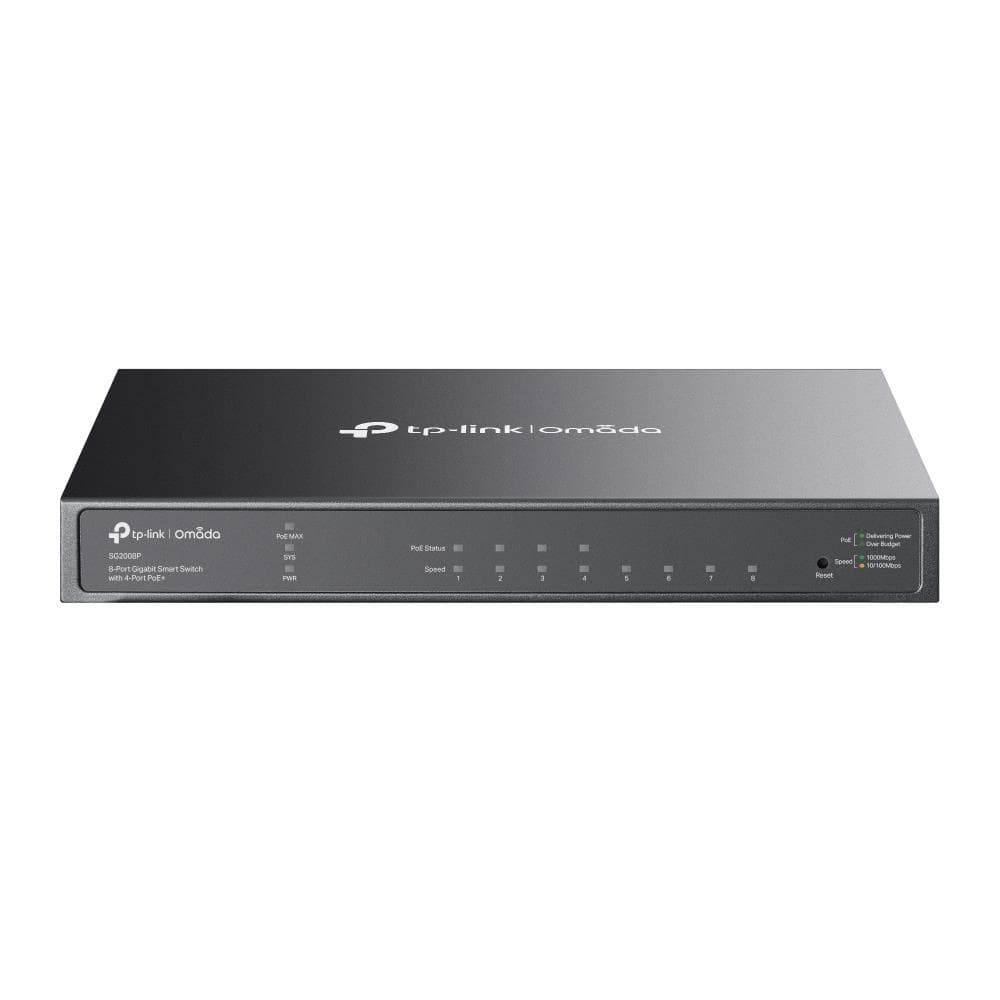

TP-Link Omada TL-SG2008P network switch 8 × 1G, 4 × PoE+ 62 W, L2+

The TP-Link Omada TL-SG2008P is an 8-port gigabit managed L2+ network switch with four PoE+ ports and a total budget of up to 62 W. It can be managed through the Omada SDN Controller, the cloud and the Omada app, or standalone through its web interface, CLI and SNMP.

  • Ports: 8 × RJ-45 10/100/1000 Mbps
  • PoE: 4 × PoE+ (802.3af/at), up to 30 W per port, 62 W in total
  • Management: Omada SDN Controller, cloud and app; web interface, CLI, SNMP, RMON
  • Features: static routing, 802.1Q VLAN (up to 4094), ACL, QoS, IGMP snooping, 802.1X
  • Housing: metal, fanless, desktop or wall, 209 × 126 × 26 mm

Description

L2+ means static routing inside the switch

Static routing moves internal traffic between VLANs right in the switch, so the router no longer has to handle every packet and the network runs more efficiently. Security comes from 802.1X with RADIUS authentication, DHCP snooping, ARP inspection and ACLs. With the Omada controller, the switch is managed together with Omada access points and gateways.

Who this network switch is for

Small and medium businesses building their network on Omada gear and wanting to run it from one cloud interface; offices where four access points, cameras or IP phones need PoE power; and administrators who need VLANs, ACLs and 802.1X authentication.

Specifications

General

BrandTP-LINK
Model nameOmada 8-Port Gigabit Smart Switch with 4-Port PoE+
Product colourBlack
ManualYes
SeriesOmada
FanlessYes
Jumbo frames9000
IGMP snoopingYes
Rack mountingYes
Rate limitingYes
ARP inspectionYes
AuthenticationMAC-based authentication, Web-based authentication
Forwarding rate11.9
Number of VLANs4094
Auto-negotiationYes
Link aggregationYes
Number of queues8
System event logYes
MAC address table8000
Authentication typeRADIUS
Management protocolsSNMPv1/v2c/v3
Packet buffer memory4.1
Web-based managementYes
Spanning tree protocolYes
Broadcast storm controlYes
Operating relative humidity (H-H)10 - 90
EAN6935364072957

Storage

Switching capacity16
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)Yes
Port mirroringYes
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8
Power over Ethernet plus (PoE+) ports quantity4

Connectivity

Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Security algorithms802.1x RADIUS

Keyboard & controls

Switch typeManaged
Switch layerL2/L2+

Battery & power

Power consumption (max)77.3 W
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation263.6
MAC address filteringYes

Features

LED indicatorsYes
10G supportNo
MIB supportMIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Package typeBox
VLAN supportYes
DHCP featuresDHCP client/DHCP relay/DHCP snooping/DHCPv6 server/DHCPv6 snooping
Auto MDI/MDI-XYes
Multicast supportYes
Flow control supportYes
IPv4 & IPv6 featuresIPv6 ping/IPv6 Telnet/IPv6 tracert
Jumbo frames supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width209 mm
Depth126 mm
Height26 mm

Questions & answers

How many devices can it power over PoE?

Four ports deliver PoE+ power, up to 30 W per port and 62 W in total. The other four ports are regular gigabit ports.

Is the Omada controller required?

No. The switch can also be managed standalone through the web interface, command line, SNMP and RMON. The Omada controller and cloud add centralised management.

What is the difference between the TL-SG2008 and TL-SG2008P?

The TL-SG2008P has four PoE+ ports with a 62 W total budget and L2+ features such as static routing. The TL-SG2008 is an L2 switch without PoE.
