TP-LINK

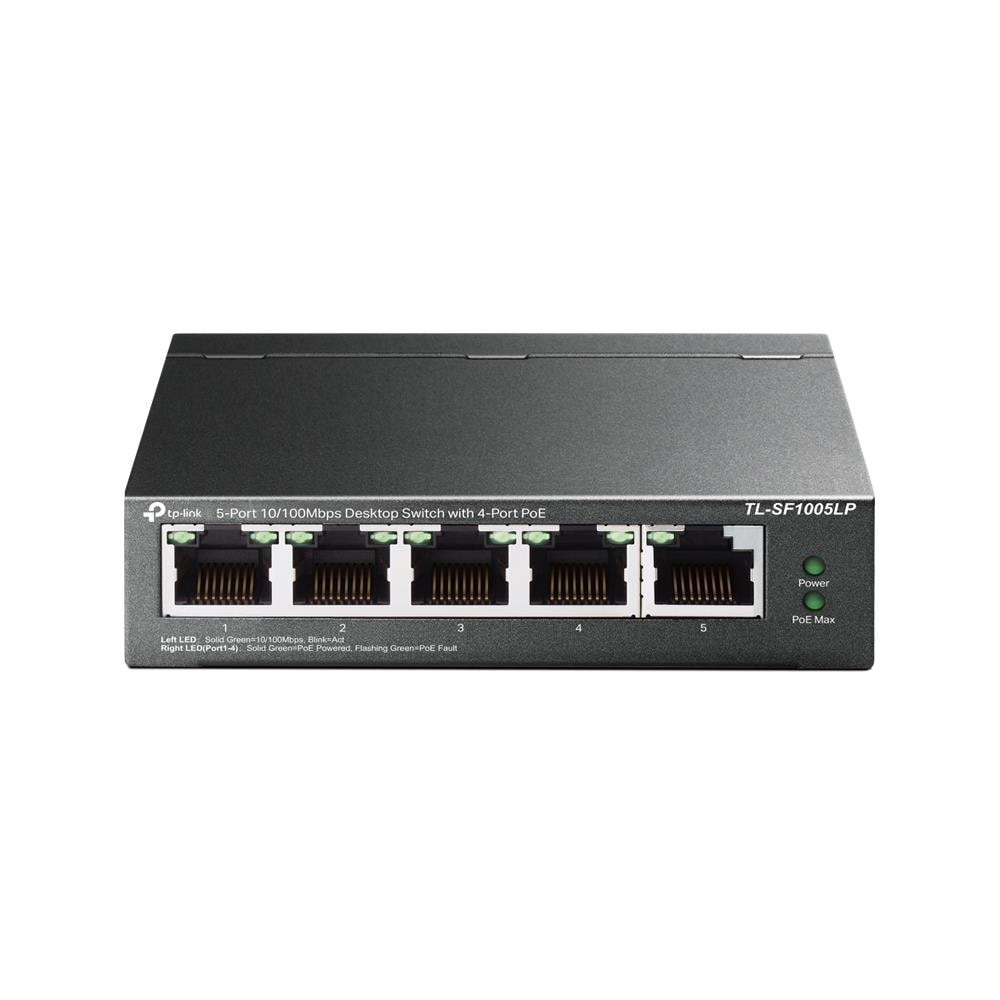

TP-LINK TL-SF1005LP 5-port Fast Ethernet switch with PoE

  • Switching capacity1
  • Power consumption (max)47 W
  • Operating temperature (T-T)0 – 40 °C
  • Switch typeUnmanaged
  • Width100 mm
  • Copper ethernet cabling technology100BASE-TX/10BASE-T

The TP-LINK TL-SF1005LP is an unmanaged network switch that delivers straightforward connectivity for small offices and remote installations. With built-in Power over Ethernet (PoE) support, this fast ethernet switch lets you power compatible devices directly through the network cable, eliminating the need for separate power adapters.

Description

Plug-and-play networking with integrated power delivery

  • 5 Fast Ethernet ports (10/100 Mbps) for reliable data transfer
  • 4 PoE ports provide power to IP cameras, wireless access points, and VoIP phones
  • Unmanaged design—no configuration needed, works instantly out of the box
  • Compact form factor fits easily on desks or in network cabinets

Ideal for small businesses setting up IP surveillance systems, deploying wireless coverage to branch offices, or powering networked devices in locations where running separate power lines is impractical. The TL-SF1005LP suits budget-conscious installations that prioritise simplicity and cost savings over advanced management features.

Specifications

General

BrandTP-LINK
Model name5-Port 10/100Mbps Desktop Switch with 4-Port PoE
Product colourBlack
FanlessYes
User guideYes
Full duplexYes
Half duplexYes
Jumbo frames2000
Rack mountingNo
Forwarding rate0.744
Auto-negotiationYes
MAC address table2000
Store-and-forwardYes
Sustainability complianceYes
Operating relative humidity (H-H)10 - 90
EAN6935364052782

Storage

Switching capacity1
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)Yes
Copper ethernet cabling technology100BASE-TX/10BASE-T
Total Power over Ethernet (PoE) budget41
Power over Ethernet (PoE) ports quantity4
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity5

Connectivity

Networking standardsIEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch typeUnmanaged

Battery & power

AC adapter includedYes
Power consumption (max)47 W
AC input voltage220 V
AC input frequency50 Hz
Input voltage53.5 V
Power sourceDC/PoE
Input current0.81
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation160.27

Features

LED indicatorsYes
10G supportNo
Auto MDI/MDI-XYes
Flow control supportYes
Jumbo frames supportYes
Cable types supportedCat3/Cat4/Cat5/Cat5e
MAC address auto-aging supportedYes

Dimensions & weight

Width100 mm
Depth98 mm
Height25 mm
