TP-Link TL-SG1210MPE network switch 10 × 1G, 8 × PoE+ 123 W, combo SFP
TP-LINK

TP-Link TL-SG1210MPE network switch 10 × 1G, 8 × PoE+ 123 W, combo SFP

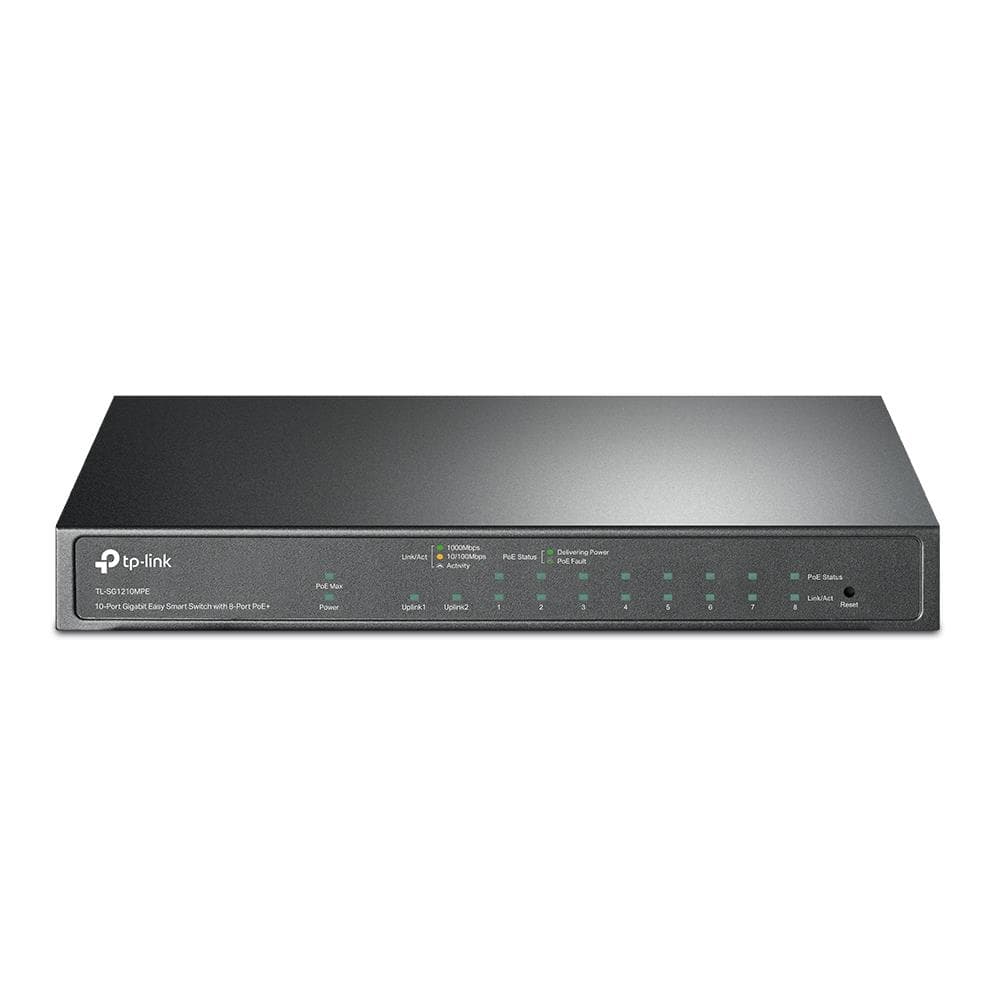

The TP-Link TL-SG1210MPE is a 10-port gigabit Easy Smart network switch whose eight PoE+ ports power cameras, access points and IP phones with a budget of up to 123 W. It also has a combo SFP/RJ-45 port for a fibre link and a fanless metal housing.

  • Ports: 9 × RJ-45 10/100/1000 Mbps + 1 × combo SFP/RJ-45
  • PoE: 8 × PoE+ (802.3af/at), up to 30 W per port, 123 W in total
  • Management: Easy Smart L2, web interface and utility, VLAN, QoS, IGMP snooping, port mirroring
  • Performance: 20 Gbps switching capacity, 4000-entry MAC table
  • Housing and power: metal, fanless, 209 × 126 × 26 mm, 53.5 V power adapter included

Description

123 W of power and a self-healing system

The eight PoE+ ports share a 123 W budget, with up to 30 W per port. If consumption exceeds the limit, intelligent power management cuts the lower-priority ports and keeps the important devices running. The switch detects how much power each device needs and will not damage equipment without PoE support. PoE Auto Recovery reboots a camera or access point that has stopped responding, with no site visit needed.

Who this network switch is for

Offices, dormitories and small businesses that need to power up to eight cameras, access points or IP phones; surveillance installers who want PoE headroom for higher-power devices; and networks that need a fibre link over SFP to another room or building.

Specifications

General

BrandTP-LINK
Model name10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Product colourBlack
ManualYes
Jumbo frames16000
IGMP snoopingYes
Rack mountingNo
Rate limitingYes
Forwarding rate14.88
MAC address table4000
Store-and-forwardYes
Broadcast storm controlYes
Operating relative humidity (H-H)10 - 90
EAN6935364052669

Storage

Switching capacity20
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 95

Ports

Power over Ethernet (PoE)Yes
Port mirroringYes
Power connectorDC-in jack
Fiber ports quantity1
Fiber optic connectorSFP
Power over Ethernet (PoE) power per port30
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity9
Power over Ethernet plus (PoE+) ports quantity8

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Keyboard & controls

Switch typeManaged
Switch layerL2

Battery & power

Input current2.43
DC input voltage53.5
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C

Features

LED indicatorsYes
10G supportNo
Loop protectionYes
Jumbo frames supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width209 mm
Depth126 mm
Height26 mm

Questions & answers

How many devices can it power over PoE?

Eight ports deliver PoE+ power with up to 123 W in total and up to 30 W per port. For example, devices drawing around 15 W can all eight be powered at once.

What is a combo SFP/RJ-45 port?

It is one port with two sockets: you connect either through an SFP module over fibre or with a regular RJ-45 network cable, depending on what your network needs.

Does the switch need to be configured?

Not necessarily, it works as soon as it is connected. VLANs, QoS and network monitoring can be set up when needed through the web interface or the Easy Smart utility.
