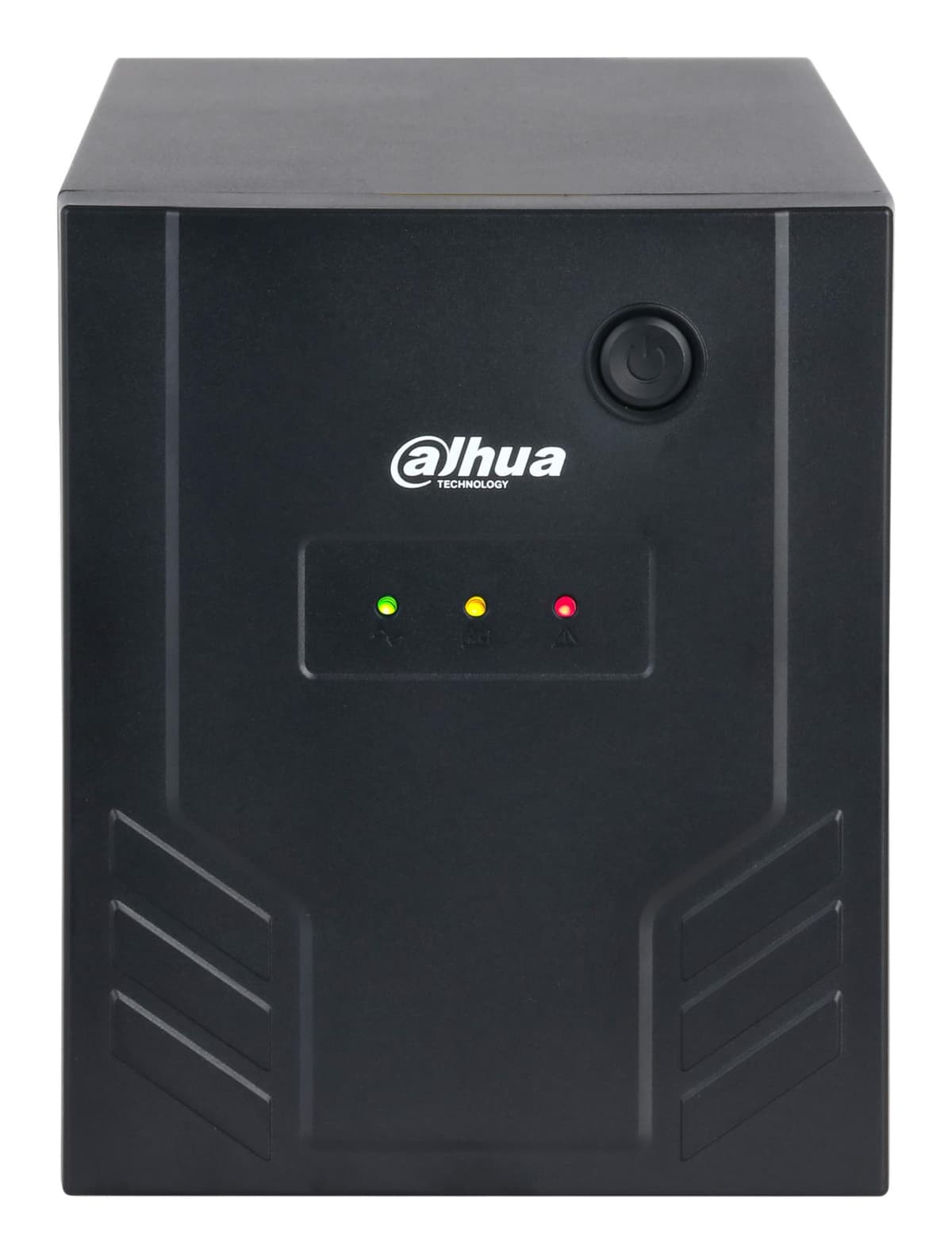

Dahua PFM3350-1500 UPS 1500 VA / 900 W, line-interactive, pure sine wave
DAHUA

Dahua PFM3350-1500 UPS 1500 VA / 900 W, line-interactive, pure sine wave

The Dahua PFM3350-1500 is a line-interactive UPS rated at 1500 VA / 900 W with a pure sine wave output and four outlets. A 170–280 V input range and automatic voltage stabilisation protect a computer and network gear from both outages and mains fluctuations.

  • Capacity: 1500 VA / 900 W
  • Topology: line-interactive, pure sine wave, 4–8 ms transfer
  • Outputs: 4 outlets, 1.2 m power cable
  • Battery: 2 × 7 Ah lead-acid, 4 h recharge
  • Protection: overload, short circuit, overcharge and over-discharge
  • Size and weight: 138.4 × 374.5 × 166.5 mm, 11.4 kg, metal and plastic housing

Description

Four outlets and a pure sine wave for a whole workstation

Four outlets let you put a computer, monitor, router and NAS behind one UPS. The pure sine wave mirrors normal mains voltage, so PSUs with active PFC run on battery without trouble, and the unit switches over in 4–8 ms when the power fails. Audible alarms warn about battery operation, low battery, overload, faults and when the battery needs replacing.

Who this UPS is for

Small offices or home offices with a more powerful computer, where several devices need to sit behind one UPS and 600 W would fall short. 900 W leaves headroom for a gaming PC or small server, and the two batteries recharge in 4 hours.

Specifications

General

BrandDAHUA
Product colourBlack
Housing materialMetal, Plastic
ManualYes
WaveformSine/Pure sine
Built-in fanYes
UPS topologyLine-Interactive
Audible alarm(s)Yes
Output frequency50/60
AC outlets quantity4
Operating relative humidity (H-H)0 - 90
EAN6937552481954

Display

Response time4

Storage

Storage temperature (T-T)-15 - 55
Storage relative humidity (H-H)0 - 90

Keyboard & controls

Control typeButtons

Battery & power

Battery technologyLead-Acid
Battery capacity7 Wh
Battery voltage13.7 V
Cable length1.2 m
Output power900
Power factor0.6
Input frequency50/60
Maximum current7.2
Charging current1
Battery recharge time4
Output power capacity1.5
Power protection featuresOvercharge/Overdischarge/Overload
Input operation voltage (max)280
Input operation voltage (min)170
Output operation voltage (max)230

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Audible alarm modesAlarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

Features

LED indicatorsFault/Power
Number of batteries included2

Dimensions & weight

Width138.4 mm
Depth374.5 mm
Height166.5 mm
Weight11.4 kg

Questions & answers

How long does it run during a power cut?

The manufacturer does not specify a runtime, because it depends on the load. The lower the load compared with 900 W, the longer the two 7 Ah batteries last.

How many devices can I connect?

There are four outlets, and total draw must stay below 900 W. Add up the computer, monitors and network gear and leave a little headroom.

What alarms does the UPS give?

It sounds an alarm when switching to battery, on low battery, overload and faults, and when the battery needs replacing. LEDs on the front show power and fault status.
