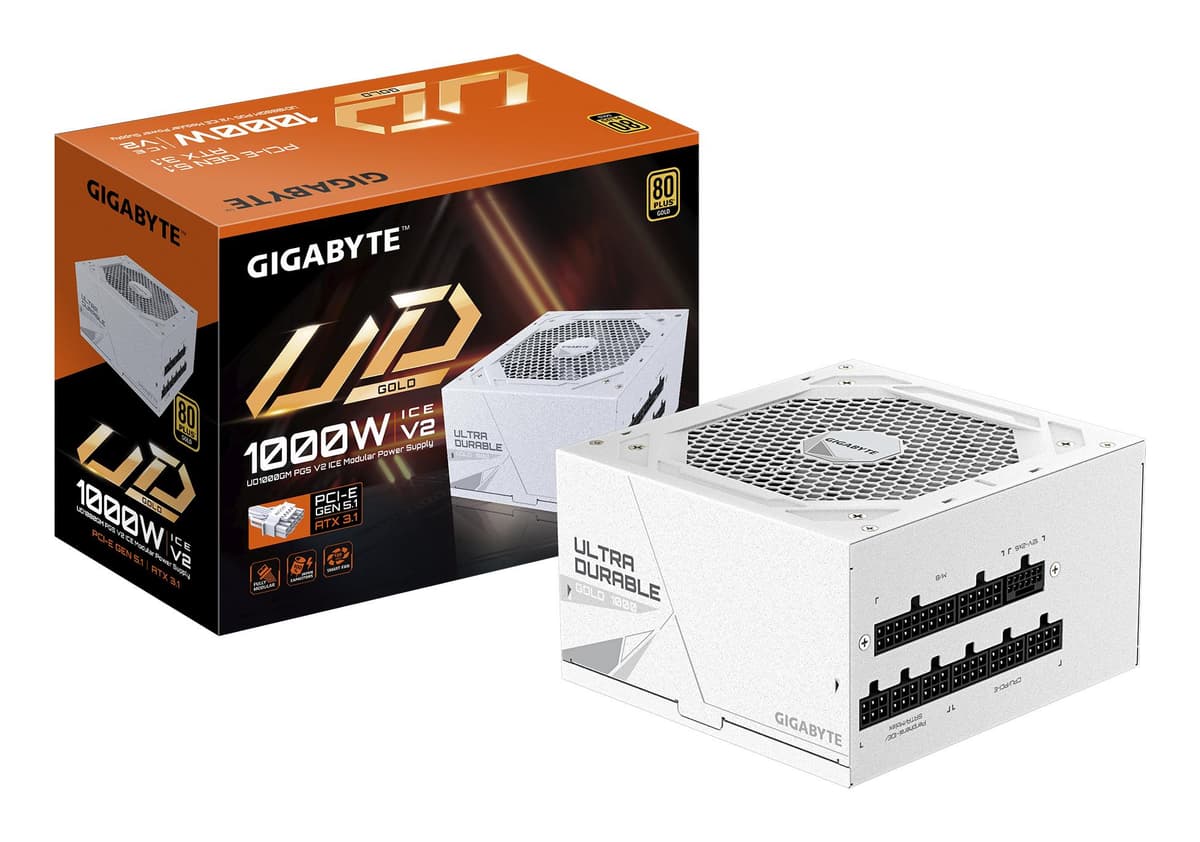

Gigabyte UD1000GM PG5 Ice 1000W ATX 3.1 80 PLUS Gold Power Supply

CPU power cable length650
AC input voltage100 – 240 V
Cooling typeActive
Width150 mm
Number of EPS connectors2
Package typeBox

The Gigabyte UD1000GM PG5 Ice is a 1000W ATX 3.1 desktop power supply built for high-performance PC builds that demand clean, stable power delivery. With 80 PLUS Gold efficiency certification, it converts mains power with minimal waste, keeping energy costs down and heat output in check.

Description

Solid Efficiency and Smart Cooling in One White PSU

1000W continuous output on a single +12V rail — handles demanding GPUs and multi-core CPUs without voltage fluctuation
ATX 3.1 and PCIe Gen 5.1 ready — fully compatible with the latest Intel platforms and next-generation graphics cards
80 PLUS Gold certified — delivers up to 92% efficiency under typical loads
120mm hydraulic bearing fan — quiet, long-life cooling that adjusts speed based on thermal demand
White finish — pairs naturally with white or windowed mid-tower and full-tower cases

A strong fit for gaming rigs, content creation workstations, and enthusiast builds where a high-wattage, efficient power supply is a core component rather than an afterthought.

Specifications

General

Brand	GIGABYTE
Model name	UD1000GM PG5 ICE
Product colour	White
Purpose	PC
Hold time	16
Efficiency	90
ATX version	3.1
Cabling type	Fully-Modular
Fan diameter	120
Number of fans	1
Mean time between failures (MTBF)	100000
Warranty	10 years
EAN	4719331556594

Processor

CPU power cable length	650
CPU power connector (4+4 pin)	Yes

Ports

PCI Express connector	Yes
Number of EPS connectors	2
Motherboard power connector	20+4 pin ATX
Floppy drive power connector	1
Number of SATA power connectors	8
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (12+4 pin)	1
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (12+4 pin) cable length	700

Keyboard & controls

On/off switch	Yes

Battery & power

AC input voltage	100 – 240 V
AC input frequency	50/60
Total power	1000
Power factor	0.9
Input current	15 - 6.5
Combined power (+5V)	125
80 PLUS certification	80 PLUS Gold
Combined power (+12V)	1000
Combined power (-12V)	3.6
Combined power (+3.3V)	125
Combined power (+5Vsb)	15
Max output current (+5V)	25
Max output current (+12V)	83.3
Max output current (-12V)	0.3
Power protection features	Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Max output current (+3.3V)	25
Max output current (+5Vsb)	3
Motherboard power cable length	610
PCI Express power cable length	600
Power Factor Correction (PFC) type	Active
Power supply unit (PSU) form factor	ATX
