NEOMOUNTS

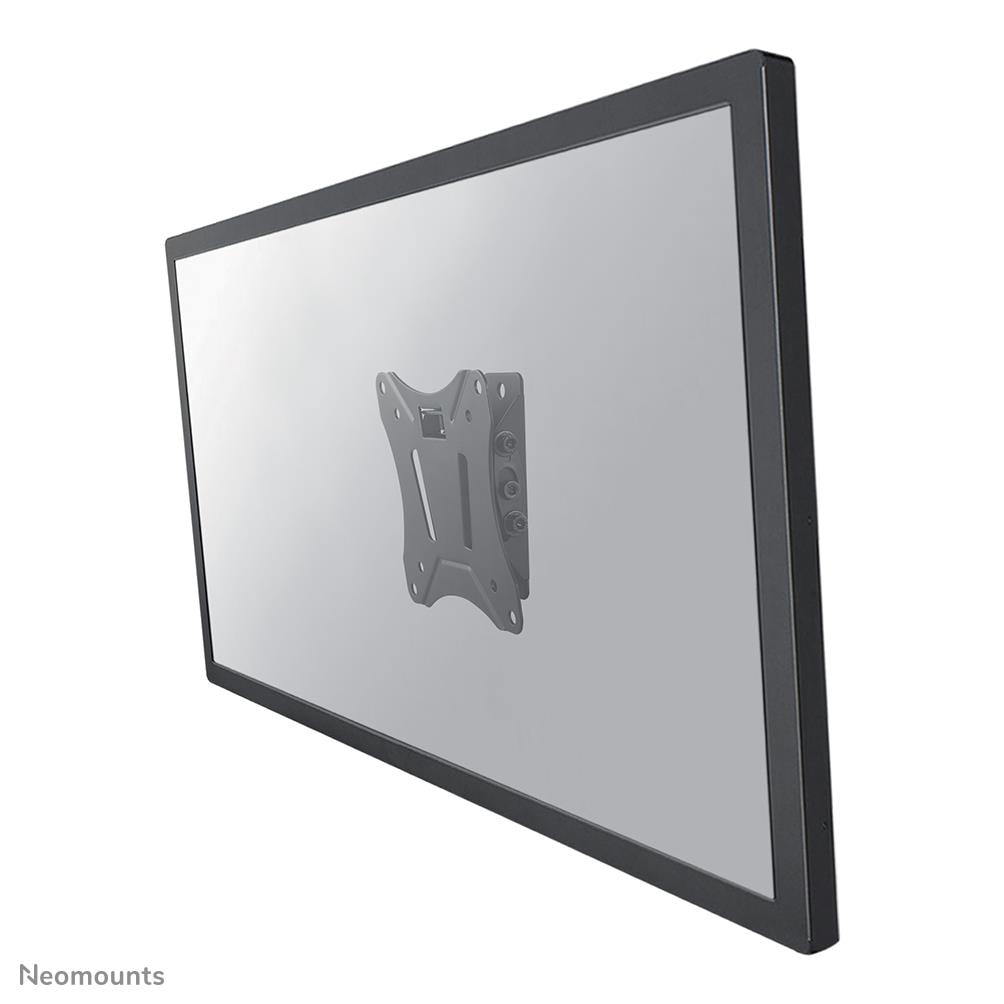

Neomounts NM-W60BLACK tilting wall mount 10–30", VESA 75/100, up to 25 kg

The Neomounts NM-W60BLACK is a compact tilting wall mount for a 10–30 inch TV or monitor weighing up to 25 kg. It sits just 3.4 cm from the wall and fits VESA patterns 75 × 75 and 100 × 100 mm.

  • Type: wall mount, tilting, for one screen
  • VESA: 75 × 75, 100 × 100 mm
  • Maximum load: 25 kg
  • Screen size: 10–30″
  • Movement: tilt −12 to +3° (15° in total), wall distance 34 mm
  • Material and colour: steel, black

Description

A little tilt for a screen mounted up high

When a small TV hangs above eye level in a bedroom, kitchen or waiting area, the 15° tilt lets you angle the screen downwards so the picture looks clearer and reflections are reduced. At 34 mm deep, the mount keeps the screen close to the wall.

Who this wall mount is for

The NM-W60BLACK suits a small TV or monitor sized 10–30″ with VESA holes of 75 × 75 or 100 × 100 mm and a weight of up to 25 kg. Being slim and tilt-only, it fits places where the screen should stay flat against the wall rather than swing out.

Specifications

General

BrandNEOMOUNTS
Product colourBlack
Housing materialSteel
Mounting typeWall
Tilt adjustmentYes
Tilt angle range-12 - 3
Maximum VESA mount100 x 100
Minimum VESA mount75 x 75
Products per pallet (EU)576
Master (outer) case width259
Distance to the wall (max)34
Master (outer) case height270
Master (outer) case length259
Master (outer) case net weight9100
Master (outer) case gross weight10600
Products per master (outer) case24
EAN8717371445829

Display

Panel mounting interface100 x 100/75 x 75
Maximum screen size30
Minimum screen size10
Number of displays supported1
Maximum weight capacity (per display)25

Storage

Maximum weight capacity25

Features

Package net weight400

Dimensions & weight

Weight380 g

Questions & answers

Will my TV or monitor fit?

Measure the distance between the four screw holes on the back of the screen in millimetres. The mount supports only 75 × 75 and 100 × 100 mm; the screen must be 10–30″ and weigh up to 25 kg.

How far from the wall will the screen be?

The mount is 34 mm deep, so the screen stays close to the wall.

Can the screen swivel sideways?

No. According to the manufacturer data, the only adjustment is tilt from −12 to +3°.
