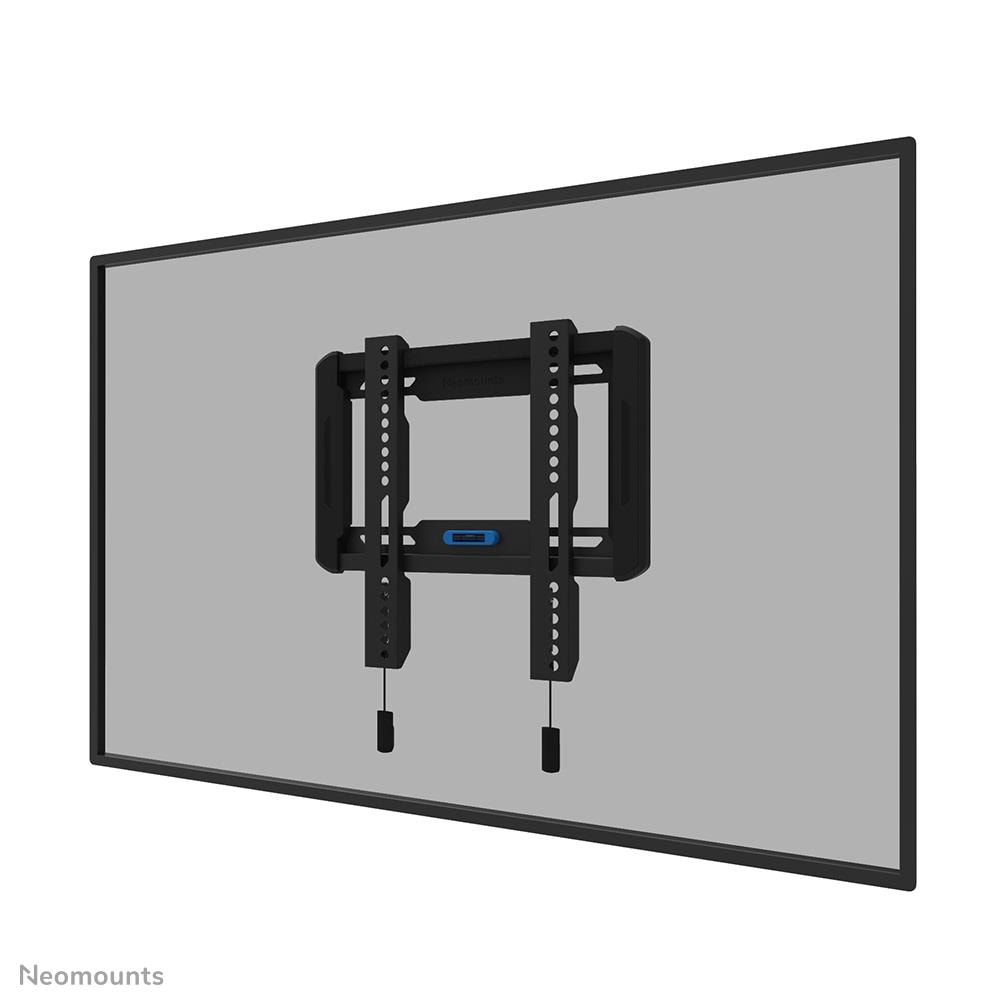

Neomounts WL30-550BL12 TV wall mount 24–65", fixed, 23 mm, up to 40 kg

The Neomounts WL30-550BL12 is an ultra-flat fixed TV wall mount for 24–65 inch screens with a load capacity of up to 40 kg. It is only 23 mm deep and fits VESA patterns from 50 × 50 to 200 × 200 mm.

  • Type: fixed wall mount, ultra-flat
  • VESA: 50 × 50 to 200 × 200 mm
  • Maximum load: 40 kg
  • Screen size: 24–65″
  • Wall distance: 23 mm
  • Installation: magnetic pull-and-release straps, built-in spirit level, steel, black

Description

Magnetic straps and a spirit level for easier installation

The TV attaches to the wall plate with a pull-and-release system: pull the strap and the TV comes free. After installation the straps click onto the mount with a magnet and stay hidden behind the screen. The built-in spirit level helps you set the wall plate straight so the TV does not hang crooked.

Who this TV mount is for

The WL30-550BL12 suits owners of a small or mid-size TV who want it as flat against the wall as possible. The key spec is the VESA size: the mount supports patterns up to 200 × 200 mm, so with a larger TV check the hole spacing on the back first.

Specifications

General

BrandNEOMOUNTS
Product colourBlack
Housing materialSteel
TypeFixed
LockableNot lockable
Mounting typeWall
Height adjustmentNo
Maximum VESA mount200 x 200
Minimum VESA mount50 x 50
Products per pallet (EU)300
Master (outer) case width353
Distance to the wall (max)23
Master (outer) case height267
Master (outer) case length300
Master (outer) case net weight10000
Master (outer) case gross weight14500
Products per master (outer) case10
EAN8717371448639

Display

Panel mounting interface100 x 100/100 x 150/100 x 200/100 x 75/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/50 x 50/75 x 100/75 x 200/75 x 75
Maximum screen size65
Minimum screen size24
Number of displays supported1
Maximum weight capacity (per display)40

Storage

Maximum weight capacity40

Features

Package net weight1400

Dimensions & weight

Width315 mm
Depth23 mm
Height287 mm
Weight950 g
Depth (max)23

Questions & answers

Which VESA sizes does the mount support?

50 × 50, 75 × 75, 75 × 100, 75 × 200, 100 × 75, 100 × 100, 100 × 150, 100 × 200, 120 × 120, 150 × 200, 200 × 100, 200 × 150 and 200 × 200 mm. The VESA size is the distance between the screw holes on the back of the TV in millimetres.

Will a 65 inch TV fit?

Yes, if its VESA size is no larger than 200 × 200 mm and it weighs up to 40 kg. If the mounting holes are spaced wider, choose a mount with a larger VESA range.

Can the TV be tilted or locked?

No. The mount is fixed, has no height adjustment and according to the manufacturer it is not lockable.
