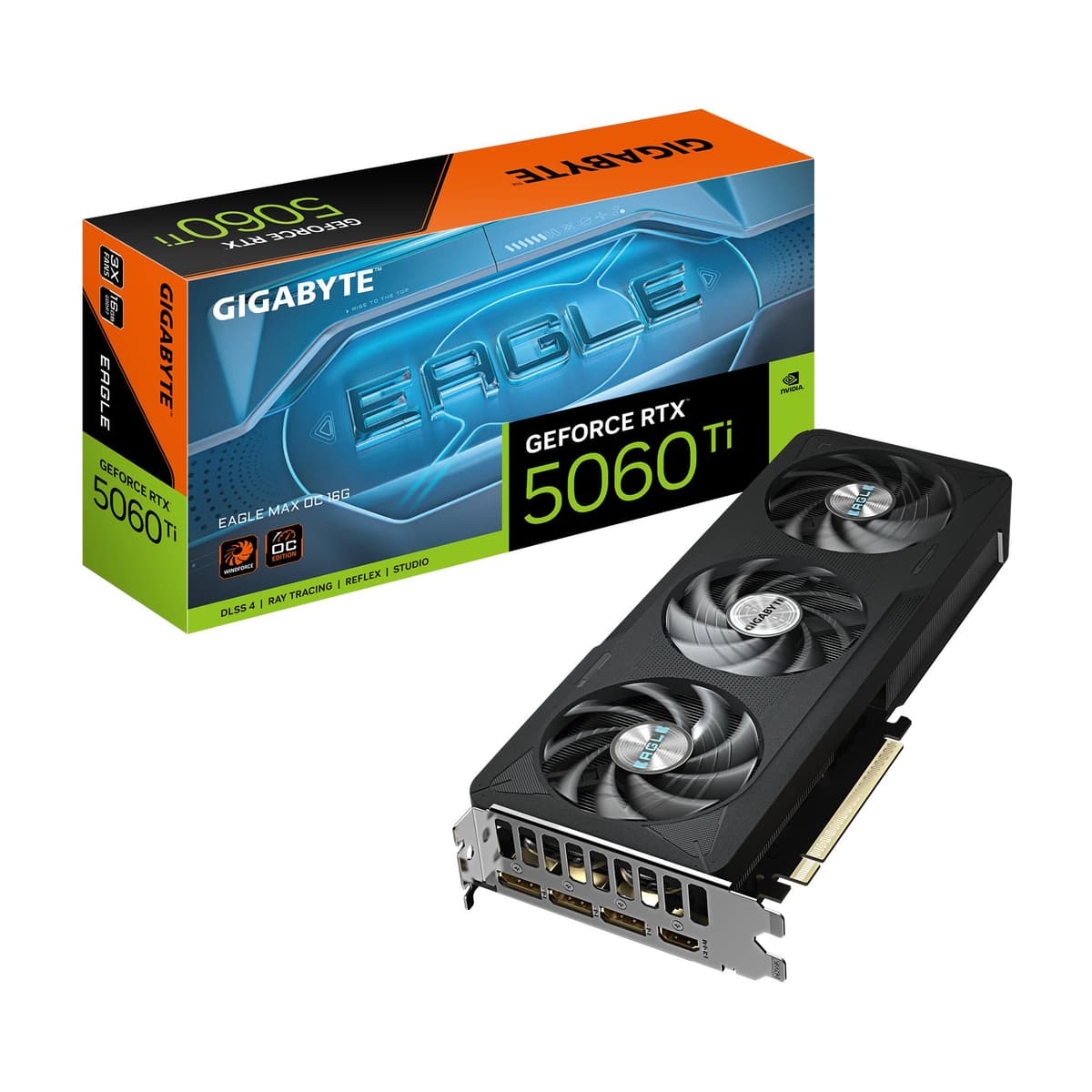

Gigabyte RTX 5060 Ti EAGLE MAX graphics card 16 GB GDDR7 (GV-N506TEAGLEMAXOC-16GD)

The Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC 16G is a triple-fan graphics card with a GPU based on the NVIDIA Blackwell architecture and 16 GB of GDDR7 memory. Its factory overclocked clock is 2617 MHz, its thermal design power (TDP) is 135 W, and three DisplayPort 2.1b outputs plus HDMI 2.1b support up to four monitors at once.

  • Graphics processor: NVIDIA GeForce RTX 5060 Ti, 4608 CUDA cores
  • Memory: 16 GB GDDR7, 128-bit bus, 28 Gbps
  • Clock speed: 2617 MHz, factory overclocked (OC)
  • Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b, up to 4 monitors
  • Power: TDP 135 W, 1 × 8-pin connector, 650 W power supply recommended
  • Size: 281 × 115 × 40 mm, PCIe 5.0
  • Cooling: WINDFORCE 3X, 3 fans

Description

Three fans for quieter, cooler running

What sets the EAGLE MAX apart is the WINDFORCE 3X cooling system with three fans on a 281 mm heatsink. The GPU has a TDP of 135 W, so there is relatively little heat for three fans to deal with, and under the same load they can spin more slowly than on a dual-fan card. The manufacturer also highlights a reinforced structure that keeps the long card straight.

Blackwell and DLSS 4 for smoother gaming

The card is built on the NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores and the Blackwell architecture. DLSS 4 support means AI reconstructs a sharp image from a frame rendered at lower resolution and inserts additional frames, raising the frame rate. As an RTX card it supports hardware ray tracing. Being an OC edition, the GPU clock is raised at the factory to 2617 MHz.

16 GB of GDDR7 for large textures

Video memory is 16 GB of GDDR7 running at 28 Gbps over a 128-bit bus. New-generation GDDR7 delivers good bandwidth even on a narrower bus, and 16 GB is a generous amount for this class. High-quality textures, large video projects and locally run AI models fit in memory without lowering settings.

Four outputs on the newest standards

The rear bracket carries three DisplayPort 2.1b outputs and one HDMI 2.1b port; up to four monitors can run at once and the maximum supported resolution is 7680 × 4320. These standards are designed for monitors and TVs with high resolution and refresh rates. NVIDIA G-SYNC support helps eliminate screen tearing with a compatible monitor.

A 281 mm card, so measure your case first

The card measures 281 × 115 × 40 mm in a full-height, half-length (FH/HL) form factor. The three fans make it longer than the dual-fan versions, so check the graphics card clearance of your case in advance. The 40 mm thickness corresponds to two expansion slots. A single 8-pin connector covers supplementary power, and the manufacturer recommends a power supply of at least 650 W.

Who this graphics card is for

Gamers who want a DLSS 4 card for Full HD or 1440p and prefer a triple-fan cooler; PC builders whose case has room for a 281 mm card; and creators who need 16 GB of video memory for video editing, 3D work and AI tools.

Specifications

General

BrandGIGABYTE
Form factorFull-Height/Half-Length (FH/HL)
Product colourBlack
CUDAYes
NVIDIA G-SYNCYes
Interface typePCI Express 5.0
Number of fans3
OpenGL version4.6
DirectX version12.0
Data transfer rate28
Overclocked (OC) editionYes
Products per shipping (inner) case1
Warranty3 years
EAN4719331356620

Display

Maximum resolution7680 x 4320
TV tuner integratedNo

Processor

Processor frequency2617 GHz
CUDA cores4608

Memory

Memory clock speed28,000 MHz
Memory bus128

Graphics

Discrete graphics card memory16 GB
Graphics processorGeForce RTX 5060 Ti
Graphics card memory typeGDDR7
Graphics processor familyNVIDIA
Maximum displays per videocard4

Ports

HDMI ports quantity1
HDMI version2.1b
Dual Link DVINo
DisplayPort version2.1b
DisplayPorts quantity3
Supplementary power connectors1x 8-pin

Battery & power

Thermal Design Power (TDP)135
Minimum system power supply650

Performance & capacities

Cooling typeActive
Cooling technologyGIGABYTE WINDFORCE 3X

Features

Package typeBox
Parallel processing technology supportNot supported

Dimensions & weight

Depth40 mm
Height115 mm
Weight770 g
Product Net Weight0.7 kg
Length281

Questions & answers

Will the card fit in my case?

The card is 281 mm long, 115 mm tall and 40 mm thick. Compare the length with the maximum graphics card length given by your case manufacturer.

Is my power supply enough?

The manufacturer recommends a power supply of at least 650 W. The card has a TDP of 135 W and needs one 8-pin PCIe supplementary power connector.

Does it work on a PCIe 4.0 motherboard?

Yes. The PCI Express 5.0 interface is backwards compatible, so the card works in PCIe 4.0 and 3.0 slots as well, with data transfer at the older standard's speed.

How does it differ from the dual-fan EAGLE cards?

The EAGLE MAX OC uses a WINDFORCE 3X cooler with three fans and is 281 mm long. The memory (16 GB GDDR7) and the GPU are the same, with a factory clock of 2617 MHz.
