GIGABYTE

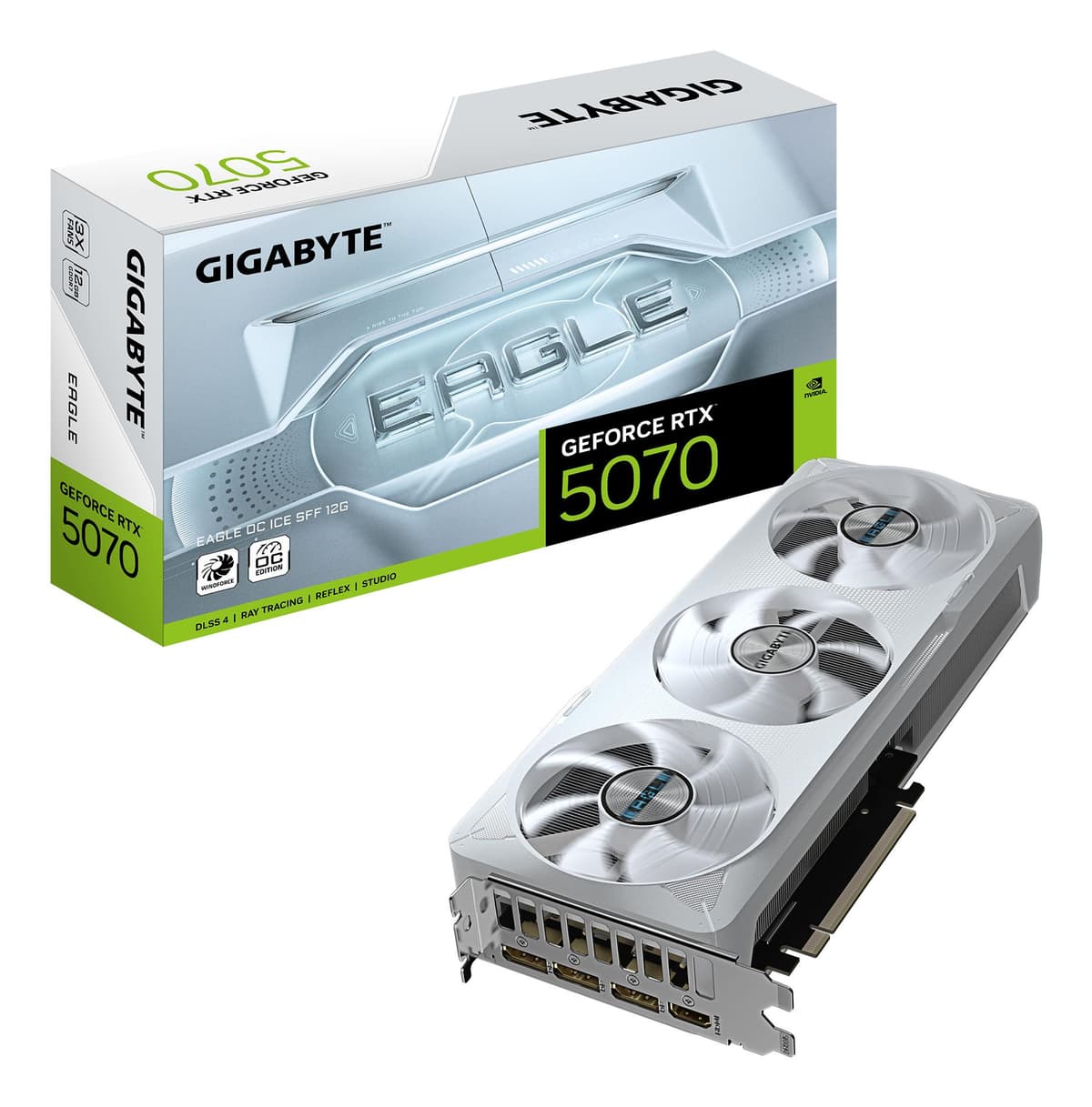

Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF graphics card, GV-N5070EAGLEOC ICE-12GD

The Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF (GV-N5070EAGLEOC ICE-12GD) is a white graphics card with 12 GB of GDDR7 memory, made for light-themed gaming builds. It has triple-fan WINDFORCE 3X cooling, a factory overclock, NVIDIA DLSS 4 support and NVIDIA SFF readiness for compact cases.

  • GPU and memory: NVIDIA GeForce RTX 5070, 12 GB GDDR7, 192-bit bus, 6144 CUDA cores
  • Clock: 2587 MHz (OC edition), 28,000 MHz effective memory clock
  • Outputs: 3 × DisplayPort 2.1a, 1 × HDMI 2.1b, up to 4 displays
  • Power: 1 × 16-pin connector, power supply of at least 750 W
  • Size and interface: 290 × 120 × 50 mm, 2 slots, PCIe 5.0 x16
  • Cooling and look: GIGABYTE WINDFORCE 3X, 3 fans, RGB lighting, white

Description

A white card at the heart of a light build

The ICE version is the white variant of the EAGLE OC SFF: the shroud and fans match a white case, motherboard and cooler. RGB lighting stands out especially well against a light background, and in a case with a glass side panel the graphics card becomes the visual centrepiece of the build. According to the manufacturer, the technical specifications are the same as on the black EAGLE OC SFF.

RTX 5070 and 12 GB of GDDR7 for gaming

The GeForce RTX 5070 GPU has 6144 CUDA cores, paired with 12 GB of GDDR7 on a 192-bit bus at an effective 28,000 MHz. That memory handles large textures and high resolutions with ease. The card is an OC edition and runs at a factory-raised 2587 MHz, so there is no need to overclock it by hand.

DLSS 4 and G-SYNC: more frames, cleaner image

NVIDIA DLSS 4 renders each frame at a lower resolution and uses AI to reconstruct it to the native resolution of the screen, so frame rates go up without the image turning soft. G-SYNC synchronises the refresh rate of a compatible monitor with the frames from the card and keeps the picture free of tearing. DirectX 12 and OpenGL 4.6 are supported.

Compact installation and WINDFORCE 3X cooling

NVIDIA SFF readiness means the card also suits smaller gaming cases. It measures 290 × 120 × 50 mm and occupies two expansion slots. The three fans of the WINDFORCE 3X cooler push air through the entire heatsink, so the GPU stays cooler under sustained load. A reinforced structure helps keep the card straight in its slot.

Up to four displays and 8K resolution

Outputs are three DisplayPort 2.1a ports and one HDMI 2.1b port, with up to four displays connected at once. The maximum resolution is 7680 × 4320. A multi-monitor workstation, a gaming desk or a TV next to the monitor all run from a single card. The card connects to the motherboard over PCI Express 5.0 x16 and takes auxiliary power through one 16-pin connector.

Who this graphics card is for

Gamers building a white or light-themed PC who want the graphics card to match the rest of the components; owners of compact cases for whom NVIDIA SFF readiness matters; content creators who need CUDA acceleration for rendering and video editing; and anyone who wants to play new titles at high resolution with the help of DLSS 4.

Specifications

General

BrandGIGABYTE
Form factorFull-Height/Full-Length (FH/FL)
Product colourWhite
CUDAYes
IlluminationYes
NVIDIA G-SYNCYes
Interface typePCI Express x16 5.0
Number of fans3
OpenGL version4.6
DirectX version12.0
Number of slots2
Overclocked (OC) editionYes
Quick installation guideYes
Products per shipping (inner) case1
Warranty3 years
EAN4719331355777

Display

Maximum resolution7680 x 4320
TV tuner integratedNo

Processor

Processor frequency2587 GHz
CUDA cores6144

Memory

Memory clock speed28,000 MHz
Memory bus192
Memory bandwidth (max)28

Graphics

Discrete graphics card memory12 GB
Graphics processorGeForce RTX 5070
Graphics card memory typeGDDR7
Graphics processor familyNVIDIA
Maximum displays per videocard4

Ports

HDMI ports quantity1
HDMI version2.1b
Dual Link DVINo
DisplayPort version2.1a
DisplayPorts quantity3
Supplementary power connectors1x 16-pin

Battery & power

Minimum system power supply750

Performance & capacities

Cooling typeActive
Cooling technologyGIGABYTE WINDFORCE 3X

Features

Cables includedPower
Package typeBox
Parallel processing technology supportNot supported

Dimensions & weight

Depth50 mm
Height120 mm
Weight2 kg
Product Net Weight0.8 kg
Length290

Questions & answers

How does the ICE version differ from the regular EAGLE OC SFF?

According to the manufacturer, the GPU, memory, clock, outputs and dimensions are identical. The GV-N5070EAGLEOC ICE-12GD is white, while the GV-N5070EAGLE OC-12GD is black.

What power supply do I need?

The manufacturer recommends a power supply of at least 750 W. Auxiliary power goes through a single 16-pin connector, and a power cable is included.

Will the card fit in my case?

The card is 290 mm long, 120 mm tall and 50 mm thick, and takes up two expansion slots. Compare these figures with the maximum graphics card length listed by your case manufacturer.

How many monitors can I connect?

Up to four: three DisplayPort 2.1a outputs and one HDMI 2.1b output, with a maximum resolution of 7680 × 4320.
