GIGABYTE

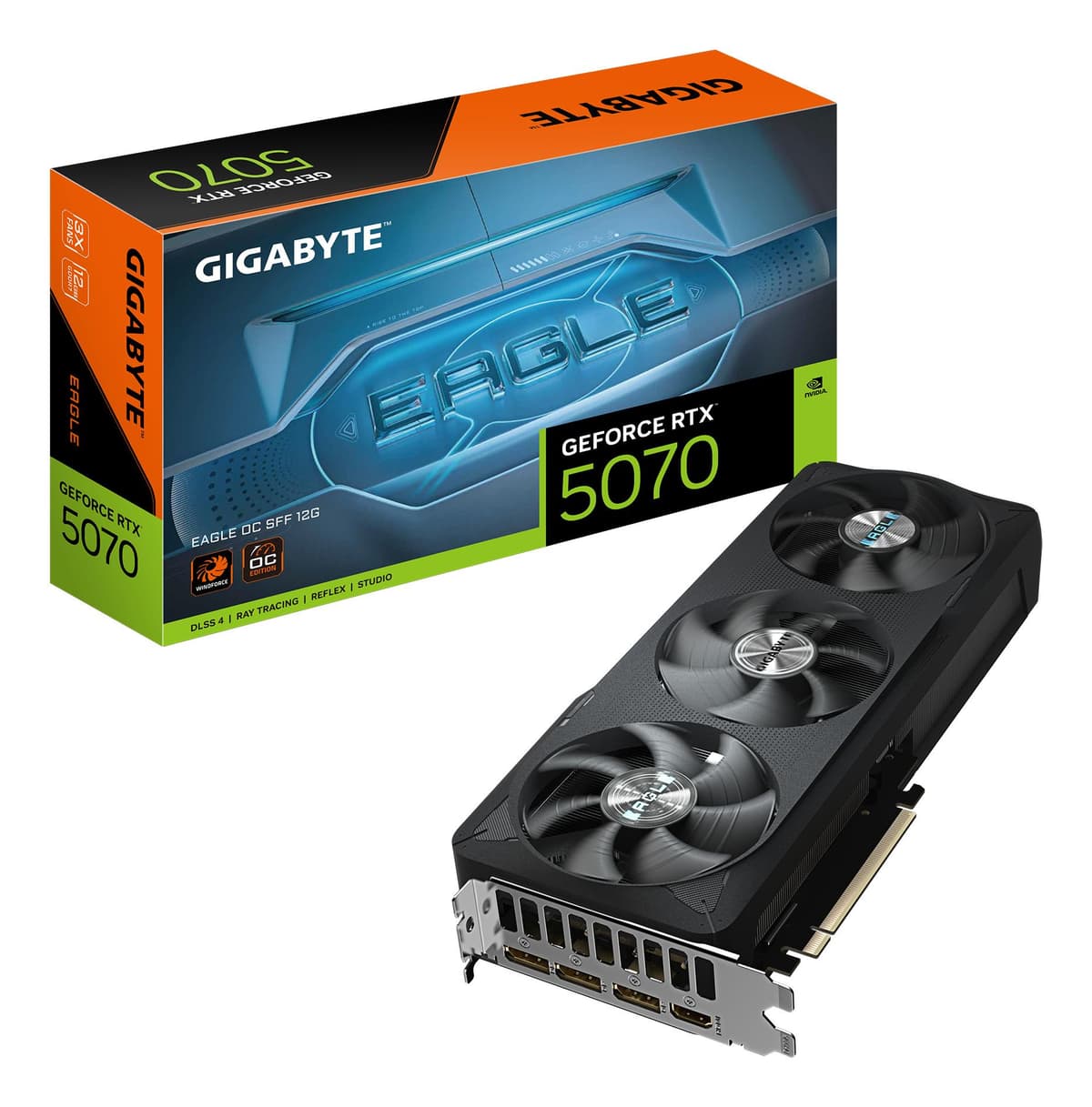

Gigabyte GeForce RTX 5070 EAGLE OC SFF graphics card 12 GB, GV-N5070EAGLE OC-12GD

The Gigabyte GeForce RTX 5070 EAGLE OC SFF (GV-N5070EAGLE OC-12GD) is a graphics card with 12 GB of GDDR7 memory for high-resolution gaming with NVIDIA DLSS 4 support. Triple-fan WINDFORCE 3X cooling, a factory overclock and NVIDIA SFF readiness make it suitable for full-size and compact gaming PCs alike.

  • GPU and memory: NVIDIA GeForce RTX 5070, 12 GB GDDR7, 192-bit bus, 6144 CUDA cores
  • Clock: 2587 MHz (OC edition), 28,000 MHz effective memory clock
  • Outputs: 3 × DisplayPort 2.1a, 1 × HDMI 2.1b, up to 4 displays
  • Power: 1 × 16-pin connector, power supply of at least 750 W
  • Size and interface: 290 × 120 × 50 mm, 2 slots, PCIe 5.0 x16
  • Cooling: GIGABYTE WINDFORCE 3X, 3 fans, RGB lighting, black

Description

12 GB of GDDR7 that keeps up with new games

The GeForce RTX 5070 GPU has 6144 CUDA cores and 12 GB of GDDR7 memory on a 192-bit bus, running at an effective 28,000 MHz. Fast memory means large textures and high resolutions do not hold the image back. As an OC edition, the card runs at a factory-raised 2587 MHz, so the extra performance is there without any manual tuning.

DLSS 4 and G-SYNC for smoother motion

NVIDIA DLSS 4 uses AI: frames are rendered at a lower resolution and then reconstructed to the native resolution of the screen, so frame rates rise while the image stays sharp. G-SYNC support synchronises the refresh rate of a compatible monitor with the frames from the card, which removes tearing and stutter. The card supports the DirectX 12 and OpenGL 4.6 APIs.

SFF-ready: a powerful card for a compact case

NVIDIA SFF readiness means the card is also designed for smaller gaming cases. It is 290 mm long, 120 mm tall and 50 mm thick, and occupies two expansion slots on the motherboard. Before installing, check in the case specifications how long a graphics card it accepts. A reinforced structure helps prevent the card from sagging in the slot.

WINDFORCE 3X cooling and RGB lighting

The GIGABYTE WINDFORCE 3X cooler uses three fans to push air through the heatsink along the full length of the card. That keeps the GPU cooler during long gaming sessions and rendering jobs, so high clocks are sustained. RGB lighting adds colour to a case with a glass side panel, and the black shroud blends in with most other components.

Four displays and 8K output

The card has three DisplayPort 2.1a outputs and one HDMI 2.1b output, and up to four displays can be connected at once. The maximum supported resolution is 7680 × 4320. One PC can therefore drive a multi-monitor gaming or work setup, or a TV next to the main monitor. The card connects to the motherboard through a PCI Express 5.0 x16 interface.

Who this graphics card is for

Gamers who want to play new titles at high resolution and make use of DLSS 4; builders of compact gaming PCs for whom NVIDIA SFF readiness matters; content creators who need CUDA acceleration for video editing and rendering; and anyone replacing an older graphics card who prefers a black card with RGB lighting.

Specifications

General

BrandGIGABYTE
Form factorFull-Height/Full-Length (FH/FL)
Product colourBlack
CUDAYes
IlluminationYes
NVIDIA G-SYNCYes
Interface typePCI Express x16 5.0
Number of fans3
OpenGL version4.6
DirectX version12.0
Number of slots2
Overclocked (OC) editionYes
Quick installation guideYes
Products per shipping (inner) case1
Warranty3 years
EAN4719331355760

Display

Maximum resolution7680 x 4320
TV tuner integratedNo

Processor

Processor frequency2587 GHz
CUDA cores6144

Memory

Memory clock speed28,000 MHz
Memory bus192
Memory bandwidth (max)28

Graphics

Discrete graphics card memory12 GB
Graphics processorGeForce RTX 5070
Graphics card memory typeGDDR7
Graphics processor familyNVIDIA
Maximum displays per videocard4

Ports

HDMI ports quantity1
HDMI version2.1b
Dual Link DVINo
DisplayPort version2.1a
DisplayPorts quantity3
Supplementary power connectors1x 16-pin

Battery & power

Minimum system power supply750

Performance & capacities

Cooling typeActive
Cooling technologyGIGABYTE WINDFORCE 3X

Features

Cables includedPower
Package typeBox
Parallel processing technology supportNot supported

Dimensions & weight

Depth50 mm
Height120 mm
Weight2 kg
Product Net Weight0.7 kg
Length290

Questions & answers

Will the card fit in my case?

The card is 290 mm long, 120 mm tall and 50 mm thick, and takes up two expansion slots. Compare these figures with the maximum graphics card length listed by your case manufacturer.

What power supply do I need?

The manufacturer recommends a power supply of at least 750 W. Auxiliary power goes through a single 16-pin connector, and a power cable is included.

How many monitors can I connect?

Up to four at once: three DisplayPort 2.1a outputs and one HDMI 2.1b output. The maximum resolution is 7680 × 4320.

What is the difference between EAGLE OC SFF and EAGLE OC ICE SFF?

According to the manufacturer, the GPU, memory, clock, outputs and dimensions are identical. The difference is the colour: the GV-N5070EAGLE OC-12GD is black, while the ICE version GV-N5070EAGLEOC ICE-12GD is white.
