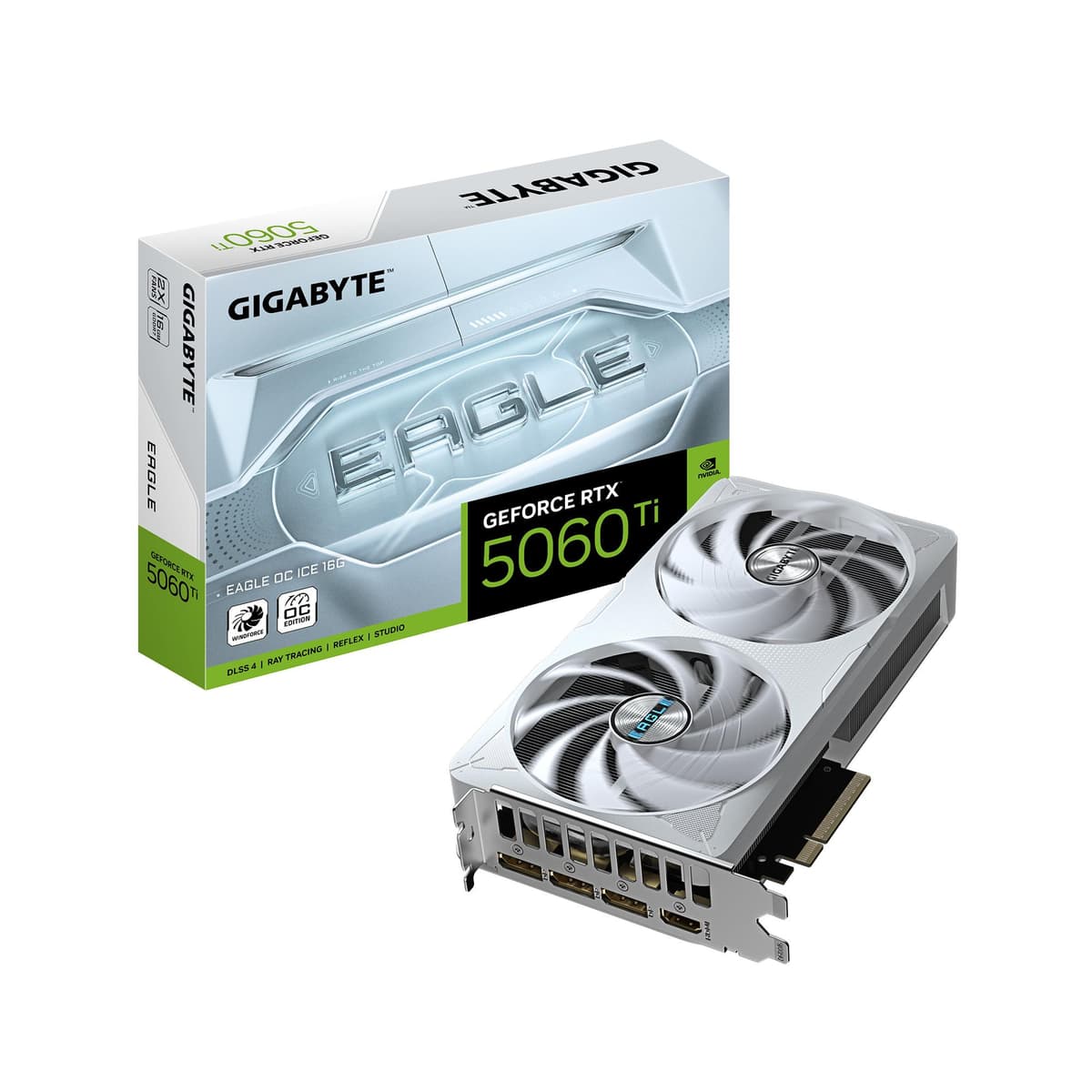

Gigabyte RTX 5060 Ti graphics card 16 GB GDDR7, White (GV-N506TEAGLEOC ICE-16GD)

The Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 16G is a white graphics card with a GPU based on the NVIDIA Blackwell architecture and 16 GB of GDDR7 memory. A factory overclock takes it to 2617 MHz, the WINDFORCE 2X card is only 215 mm long, and three DisplayPort 2.1b outputs plus HDMI 2.1b support up to four monitors.

  • Graphics processor: NVIDIA GeForce RTX 5060 Ti, 4608 CUDA cores
  • Memory: 16 GB GDDR7, 128-bit bus, 28 Gbps
  • Clock speed: 2617 MHz, factory overclocked (OC)
  • Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b, up to 4 monitors
  • Power: 1 × 8-pin connector, 650 W power supply recommended
  • Size: 215 × 122 × 40 mm, dual slot, PCIe 5.0 x16
  • Cooling: WINDFORCE 2X, 2 fans, white shroud

Description

Blackwell architecture and DLSS 4 for smoother frames

The card is built on the NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores and the latest NVIDIA Blackwell architecture. It supports DLSS 4: AI reconstructs a sharp image from a lower-resolution frame and generates additional frames, so frame rates rise without a visible loss in image quality. As an RTX series card it also supports hardware ray tracing. Being an OC edition, the GPU clock is raised at the factory to 2617 MHz.

16 GB of GDDR7 that does not run short

Video memory is 16 GB of GDDR7 running at 28 Gbps over a 128-bit bus. GDDR7 is a new, fast memory type that delivers good bandwidth even on a narrower bus. 16 GB is a generous amount for this class: high-quality textures, large video projects and locally run AI models fit in memory without having to lower settings.

A white design for a bright build

The ICE edition has a white shroud and cooler that match white cases and components. The WINDFORCE 2X cooling system uses two fans, and the manufacturer highlights a reinforced structure that helps the card keep its shape over time. At dual-slot thickness it leaves the remaining expansion slots on the motherboard free for other cards.

Modern outputs for high-resolution screens

The rear bracket has three DisplayPort 2.1b outputs and one HDMI 2.1b port; up to four monitors can run at once and the maximum resolution is 7680 × 4320. DisplayPort 2.1b and HDMI 2.1b are the newest standards, designed for monitors with high resolution and refresh rates. NVIDIA G-SYNC support helps eliminate screen tearing with a compatible monitor.

A short card that suits smaller cases too

The card measures 215 × 122 × 40 mm in a full-height, half-length (FH/HL) form factor, so it also fits more compact cases. Supplementary power comes through a single 8-pin connector, and the manufacturer recommends a power supply of at least 650 W. The card installs in a PCI Express 5.0 x16 slot but, thanks to backwards compatibility, also works on a PCIe 4.0 motherboard.

Who this graphics card is for

Gamers putting together a white PC who want a DLSS 4 card for Full HD or 1440p; creators who need 16 GB of video memory for video editing and AI tools; and builders of compact PCs who are looking for a 215 mm card with a single 8-pin power connector.

Specifications

General

BrandGIGABYTE
Form factorFull-Height/Half-Length (FH/HL)
Product colourWhite
CUDAYes
NVIDIA G-SYNCYes
Interface typePCI Express x16 5.0
Number of fans2
OpenGL version4.6
DirectX version12.0
Number of slots2
Data transfer rate28
Overclocked (OC) editionYes
Products per shipping (inner) case1
Warranty3 years
EAN4719331356088

Display

Maximum resolution7680 x 4320
TV tuner integratedNo

Processor

Processor frequency2617 GHz
CUDA cores4608

Memory

Memory clock speed28,000 MHz
Memory bus128

Graphics

Discrete graphics card memory16 GB
Graphics processorGeForce RTX 5060 Ti
Graphics card memory typeGDDR7
Graphics processor familyNVIDIA
Maximum displays per videocard4

Ports

HDMI ports quantity1
HDMI version2.1b
Dual Link DVINo
DisplayPort version2.1b
DisplayPorts quantity3
Supplementary power connectors1x 8-pin

Battery & power

Minimum system power supply650

Performance & capacities

Cooling typeActive
Cooling technologyGIGABYTE WINDFORCE 2X

Features

Package typeBox
Parallel processing technology supportNot supported

Dimensions & weight

Depth40 mm
Height122 mm
Weight600 g
Product Net Weight0.67 kg
Length215

Questions & answers

Will the card fit in my case?

The card is 215 mm long, 122 mm tall and 40 mm thick, which means two expansion slots. Compare the length with the maximum graphics card length given by your case manufacturer.

Is my power supply enough?

The manufacturer recommends a power supply of at least 650 W. The card needs one 8-pin PCIe supplementary power connector.

Does it work on a PCIe 4.0 motherboard?

Yes. The PCI Express 5.0 interface is backwards compatible, so the card works in PCIe 4.0 and 3.0 slots as well, with data transfer at the older standard's speed.

How many monitors can I connect?

Up to four at once: the card has three DisplayPort 2.1b outputs and one HDMI 2.1b port.
