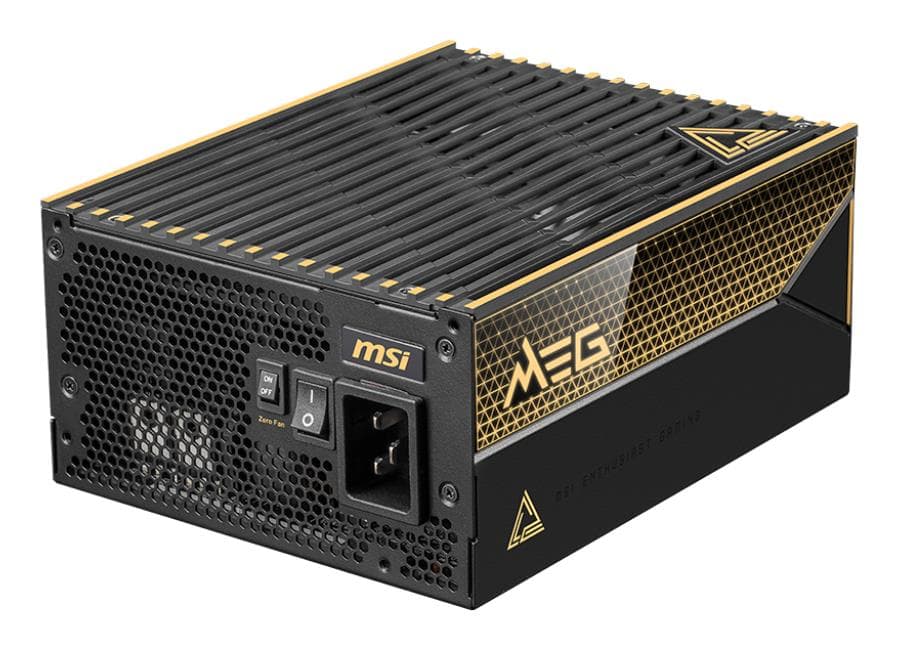

MSI MEG AI1600T PCIE5 power supply 1600 W, 80 PLUS Titanium, ATX 3.1, fully modular

The MSI MEG AI1600T PCIE5 is a 1600 W ATX power supply from MSI's flagship MEG series, built for powerful gaming and work PCs. 80 PLUS Titanium certification and 94 % efficiency mean less heat and loss, while fully modular cabling and two 16-pin PCIe power connectors to the ATX 3.1 standard make it ready for new-generation graphics cards.

  • Output: 1600 W, up to 133.3 A on the +12 V rail
  • Efficiency: 80 PLUS Titanium, 94 %
  • Cabling: fully modular
  • Connectors: 2 × 16-pin PCIe, 9 × PCIe 6+2, EPS 4+4, 24-pin ATX, 8 × SATA, 8 × Molex
  • Form factor: ATX 3.1, 190 × 150 × 86 mm
  • Fan: 135 mm, dual ball bearing (DBB)
  • Input: 100–240 V, active PFC

Description

1600 W and ATX 3.1 for new-generation graphics cards

ATX 3.1 is a recent revision of the power supply standard that accounts for the short power spikes of today's graphics cards. The two 16-pin PCIe connectors plug straight into cards that use that connector, and nine 6+2-pin connectors cover older cards or cards with several power inputs. The full 1600 W is available on the +12 V rail, rated at up to 133.3 A — the rail that feeds the processor and the graphics card.

Titanium efficiency means less heat in the case

80 PLUS Titanium is the top tier of the 80 PLUS programme, and the manufacturer rates efficiency at 94 %. The more efficient a power supply is, the smaller the share of energy from the wall that turns into heat. In a heavily loaded PC this means a cooler power supply, less work for its fan and lower electricity use, especially when the machine renders or games for days on end.

Fully modular cabling with plenty of connectors

Every cable is detachable, so only the ones you actually need go into the case. Besides the two 16-pin and nine 6+2-pin PCIe connectors, the unit offers a 24-pin motherboard connector, EPS 4+4 processor power, eight SATA and eight Molex connectors. That is enough for a system with several graphics cards, lots of drives and extra peripherals.

A 135 mm fan on a dual ball bearing

Cooling comes from a 135 mm fan with a dual ball bearing (DBB). Ball bearing fans handle high temperatures and long running hours well, which matters in a power supply that runs whenever the PC is on. The manufacturer does not list noise levels or fan speeds.

ATX dimensions and case fit

The unit uses the ATX form factor and measures 190 × 150 × 86 mm. At 190 mm it is longer than a typical ATX power supply, so check before installing how long a unit your case accepts and how much room is left for cables. Input voltage ranges from 100 to 240 V, and active power factor correction (PFC) keeps the current draw from the mains smooth.

Who this power supply is for

Enthusiasts building a top-tier gaming PC around a new-generation graphics card who want headroom; creators and workstation builders whose machines render or compute at full load for hours; and anyone who wants a fully modular, highly efficient unit in their case. With its black housing, the MSI MEG AI1600T PCIE5 also looks right behind a glass side panel.

Specifications

General

BrandMSI
Model nameMEG AI1600T PCIE5
Product colourBlack
PurposePC
Efficiency94
Cabling typeFully-Modular
Fan diameter135
EAN4711377238830

Ports

EPS power connector (8-pin)No
Motherboard power connector24-pin ATX
EPS power connector (4+4 pin)Yes
Number of SATA power connectors8
PCI Express power connectors (16-pin)2
PCI Express power connectors (6+2 pin)9
Peripheral (Molex) power connectors (4-pin)8

Battery & power

AC input voltage100 – 240 V
Total power1600
Combined power (+5V)120
80 PLUS certification80 PLUS Titanium
Combined power (+12V)1600
Combined power (-12V)3.6
Combined power (+3.3V)120
Combined power (+5Vsb)15
Max output current (+5V)22
Max output current (+12V)133.3
Max output current (-12V)0.3
Max output current (+3.3V)22
Max output current (+5Vsb)3
Power Factor Correction (PFC) typeActive
Power supply unit (PSU) form factorATX

Features

Bearing technologyDBB

Dimensions & weight

Width190 mm
Depth150 mm
Height86 mm

Questions & answers

Does it work with a graphics card that uses a 16-pin power connector?

Yes. The power supply has two 16-pin PCIe connectors and follows the ATX 3.1 standard, plus nine 6+2-pin PCIe connectors for older cards.

Will it fit in my case?

It is an ATX unit measuring 190 × 150 × 86 mm. Check your case specifications for the maximum ATX power supply length — 190 mm is longer than average.

How quiet is this power supply?

The manufacturer does not publish noise levels. What is known is that it is cooled by a 135 mm dual ball bearing fan and that Titanium efficiency means less heat to remove.

Are the cables detachable?

Yes, the unit is fully modular: every cable, including the 24-pin motherboard cable, plugs into the unit, so unused cables stay out of the case.
