SEASONIC

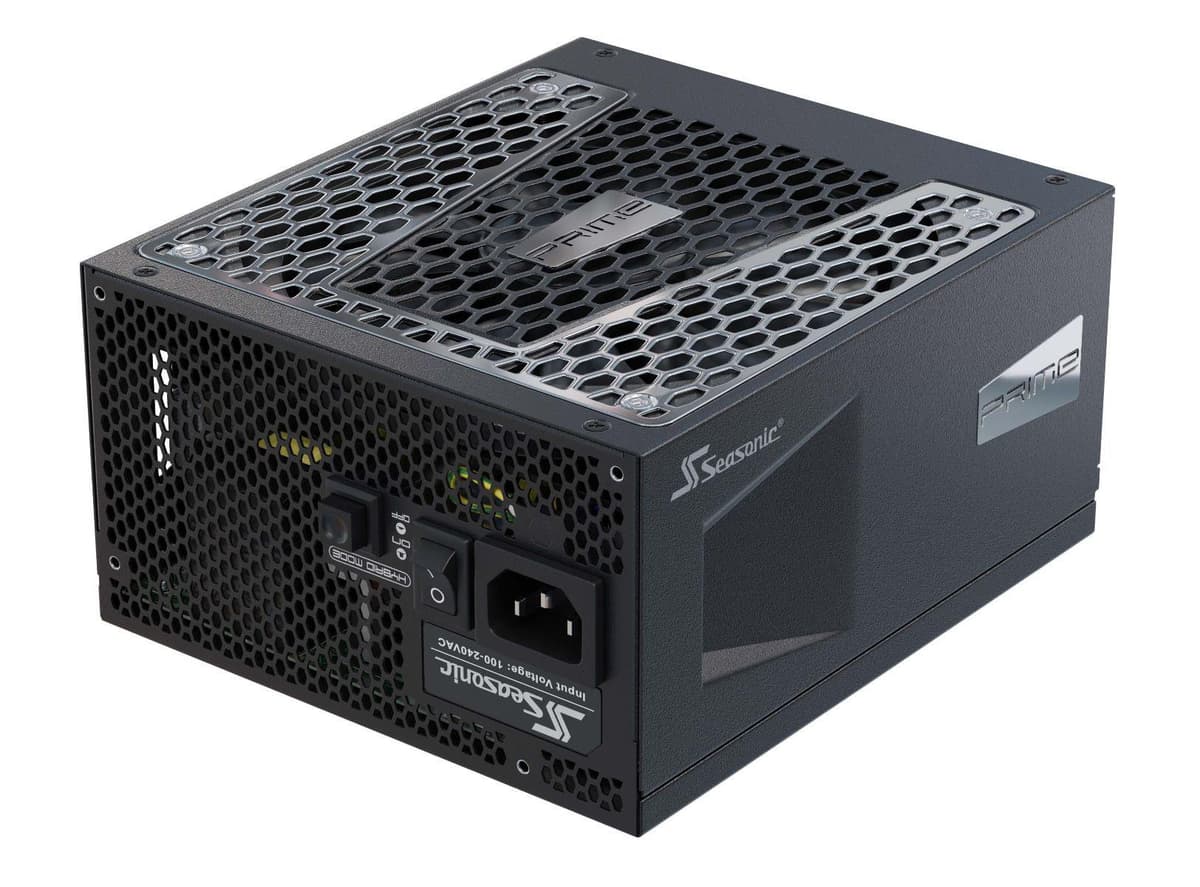

Seasonic PRIME-TX-1300-ATX30 power supply 1300 W, 80 PLUS Titanium, fully modular

The Seasonic PRIME TX-1300 ATX 3.0 is a 1300 W fully modular ATX power supply from the third generation of Seasonic's PRIME series. 80 PLUS Titanium efficiency, a 135 mm fluid dynamic bearing fan and protection against over-current, over-voltage and short circuits make it a power supply for a high-end gaming or work PC that has to run quietly and stay stable.

  • Output: 1300 W, up to 108 A on the +12 V rail (1296 W)
  • Efficiency: 80 PLUS Titanium
  • Cabling: fully modular, AC, PCIe, SATA and Molex cables included
  • Connectors: 20+4-pin ATX, CPU 4+4, 14 × SATA, 5 × Molex
  • Form factor: ATX 3.0, 150 × 210 × 86 mm
  • Fan: 1 × 135 mm, fluid dynamic bearing (FDB)
  • Protection: over-current, over-voltage, short circuit

Description

1300 W of stable power to the ATX 3.0 standard

The unit delivers 1300 W in total, of which the +12 V rail that feeds the processor and graphics card can supply 1296 W, or up to 108 A. The minor +3.3 V and +5 V rails each provide up to 25 A, 125 W combined. ATX 3.0 is the power supply standard designed to handle the short power spikes of new-generation graphics cards, so a powerful system does not shut down unexpectedly at a load peak.

Titanium efficiency and quiet hybrid cooling

80 PLUS Titanium means that more of the energy taken from the wall reaches the PC and less is lost as heat. Less heat in turn means the fan does not need to spin as fast. Seasonic describes the PRIME series hybrid fan mode, which keeps fan noise as low as possible, and the 135 mm fluid dynamic bearing fan runs more quietly and with less friction than a ball bearing design.

Fully modular, with the cables in the box

All cables are detachable, and the box contains the AC cord, PCIe, SATA and Molex cables, a Molex-to-SATA adapter and cable ties. The 20+4-pin motherboard cable is 610 mm long, enough to route around the back even in larger cases. There is also 4+4-pin processor power, 14 SATA and 5 Molex connectors, so even a system with many drives gets power without splitters.

A copper plate instead of internal wires

Inside the unit, Seasonic has replaced the wires between the back panel and the circuit board with a copper plate. According to the manufacturer this reduces the chance of errors during manual assembly and improves output power quality. For the user it means a cleaner, more reliable internal build that you never see from outside the case, but which affects power stability.

Protection, certifications and dimensions

The unit protects the PC against over-current, over-voltage and short circuits and operates from 0 to 50 °C. Input is 100–240 V at 50–60 Hz, and there is a power switch at the back. The certification list includes cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6 and REACH. It measures 150 × 210 × 86 mm, so your case needs room for a 210 mm long power supply.

Who this power supply is for

Gamers and enthusiasts building a PC around a powerful graphics card who want headroom for the next upgrade; workstation builders whose machines run at full load for hours; and anyone who values quiet operation and tidy cabling. Fully modular and finished in black, the PRIME TX-1300 also suits a case with a glass side panel where the cables are on show.

Specifications

General

BrandSEASONIC
Model namePRIME TX ATX 3.0
Product colourBlack
PurposePC
Cabling typeFully-Modular
Fan diameter135
Number of fans1
Mean time between failures (MTBF)150000
EAN4711173878025

Processor

CPU power connector (4+4 pin)Yes

Ports

Motherboard power connector20+4 pin ATX
Number of SATA power connectors14
Peripheral (Molex) power connectors (4-pin)5

Keyboard & controls

On/off switchYes

Battery & power

AC input voltage100 – 240 V
AC input frequency50 – 60 Hz
Total power1300
Input current15 - 7.5
Combined power (+5V)125
80 PLUS certification80 PLUS Platinum
Combined power (+12V)1296
Combined power (-12V)3.6
Combined power (+3.3V)125
Combined power (+5Vsb)15
Max output current (+5V)25
Max output current (+12V)108
Max output current (-12V)0.3
Power protection featuresOver current/Over voltage/Short circuit
Max output current (+3.3V)25
Max output current (+5Vsb)3
Motherboard power cable length610
Power supply unit (PSU) form factorATX

Performance & capacities

Operating temperature (T-T)0 – 50 °C
Cooling typeActive

Features

Cables includedAC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Package typeBox
Bearing technologyFDB
Cable tie(s) includedYes

Dimensions & weight

Width150 mm
Depth210 mm
Height86 mm
Product Net Weight1.5 kg

Questions & answers

Will it fit in my case?

It is an ATX unit measuring 150 × 210 × 86 mm. Check your case specifications to see whether a 210 mm long power supply fits and leaves room for cables.

Is a 16-pin graphics card cable included?

The manufacturer's data lists PCIe cables in the box, but neither their number nor a 16-pin cable is specified. The unit follows the ATX 3.0 standard.

How quiet is this power supply?

Seasonic uses hybrid fan control and a 135 mm fluid dynamic bearing fan to keep noise as low as possible. A noise level in decibels is not given in the data.

What protection features does it have?

The power supply is protected against over-current, over-voltage and short circuits.
