Ubiquiti U7 Pro XG Wi-Fi 7 access point, 2.4/5/6 GHz, 10GbE, PoE+
UBIQUITI

Ubiquiti U7 Pro XG Wi-Fi 7 access point, 2.4/5/6 GHz, 10GbE, PoE+

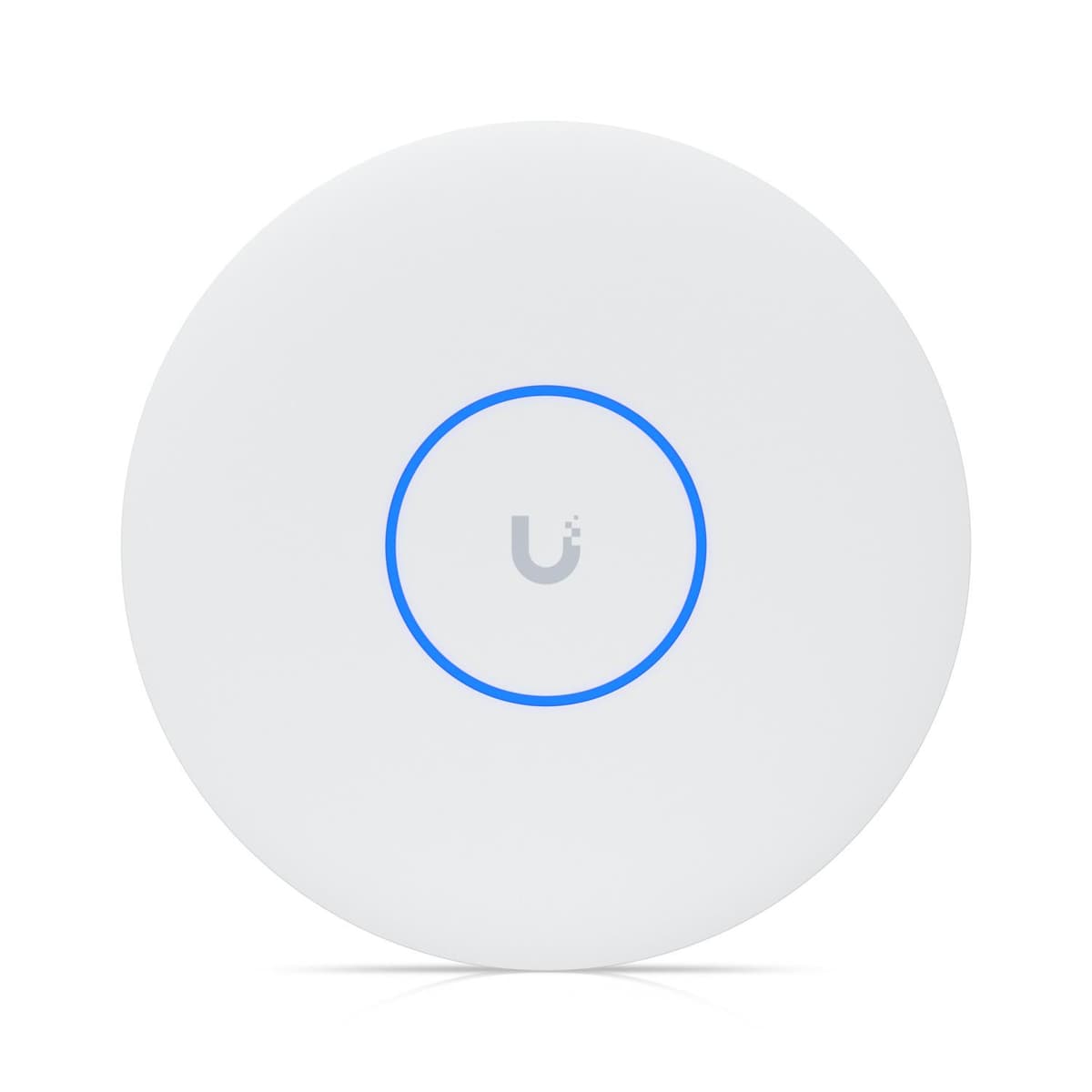

The Ubiquiti U7 Pro XG is a ceiling or wall mounted Wi-Fi 7 access point that runs three bands at once: 2.4, 5 and 6 GHz. A 10-gigabit network port and PoE+ power mean a fast wireless network needs just one cable.

  • Wi-Fi: Wi-Fi 7 (802.11be), up to 5800 Mbps on 6 GHz, 4300 Mbps on 5 GHz and 688 Mbps on 2.4 GHz
  • Bands: 2.4 / 5 / 6 GHz, band steering and fast roaming (802.11k/r/v)
  • Port: 1 × RJ-45 at 1, 2.5, 5 or 10 Gbps
  • Antennas: internal, up to 6 dBi gain, 6 spatial streams, MU-MIMO
  • Management: VLANs, PPSK, Hotspot 2.0, Wi-Fi schedule, rate limiting, wireless meshing
  • Power: PoE+, 22 W maximum consumption

Description

Six streams and a 10GbE port so the cable is never the bottleneck

Six spatial streams and MU-MIMO let the access point serve many devices at once, up to 300 users according to the manufacturer. The 6 GHz band carries no legacy devices, so Wi-Fi 7 phones and laptops get their top speed there. To keep 5800 Mbps from being capped by the wire, the port is 10-gigabit, yet it also works with a 1, 2.5 or 5 Gbps switch.

Who this access point is for

Offices, retail spaces, classrooms or large homes with many simultaneous connections and a switch that already supports 2.5 or 10 Gbps. The white metal and polycarbonate housing measures 206 × 206 × 32.5 mm, weighs 0.75 kg and fixes to a ceiling or wall with the included mounting kit. Operating temperature is −30 to 40 °C.

Specifications

General

BrandUBIQUITI
Model nameU7 Pro XG
Product colourWhite
Housing materialMetal, Polycarbonate (PC)
5 GHzYes
6 GHzYes
2.4 GHzYes
PlacementCeiling, Wall
Fast roamingYes
Mounting kitYes
Rate limitingYes
Number of users300
Spatial streams6
Access point managementWi-Fi schedule
Maximum data transfer rate5800
Operating relative humidity (H-H)5 - 95
Maximum data transfer rate (5 GHz)4300
Maximum data transfer rate (6 GHz)5800
Maximum data transfer rate (2.4 GHz)688
EAN810177160632

Ports

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates1000/10000/2500/5000
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+

Connectivity

Networking standardsIEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v
Security algorithmsPPSK
MIMOYes
MIMO typeMulti User MIMO
Antenna typeInternal
Band steeringYes
Frequency band2.4, 5, 6
Wireless meshingYes
Antenna gain level (max)6

Keyboard & controls

Reset buttonYes

Battery & power

Power consumption (max)22 W
Maximum Tx power (5 GHz)26
Maximum Tx power (6 GHz)24
Maximum Tx power (2.4 GHz)23

Performance & capacities

Operating temperature (T-T)0 – 30 – 40 °C
Coverage area140
Fit AP mode featuresHotspot 2.0

Features

LED indicatorsStatus
VLAN supportYes

Dimensions & weight

Width206 mm
Depth32.5 mm
Height206 mm
Weight750 g

Questions & answers

How large an area does one access point cover?

The manufacturer states 140 m² and up to 300 users. Real coverage depends on walls, floors and client devices, so larger spaces need several access points.

What power does the access point need?

Power comes over the network cable from a PoE+ switch or injector. Maximum draw is 22 W, so a standard PoE port is not enough.

Can several access points form a mesh network?

Yes, wireless meshing, fast roaming (802.11r) and band steering are supported, so devices move between access points smoothly.
